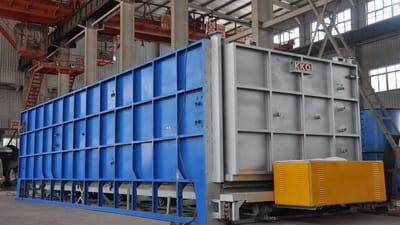

Bogie Furnace also known as Bogie-Type Resistance Furnace , as a national standard Energy Saving type periodic operation Industrial Furnace , is widely used in the heat treatment process of various metal materials.
This type Industrial Furnace takes into account the High Efficiency and Environmental Protection requirements, adopts a variety of Energy Saving measures, such as Full-Fiber High Pressure Insulation Material , etc., reduces Energy Consumption and improves Liter thermal insulation performance.

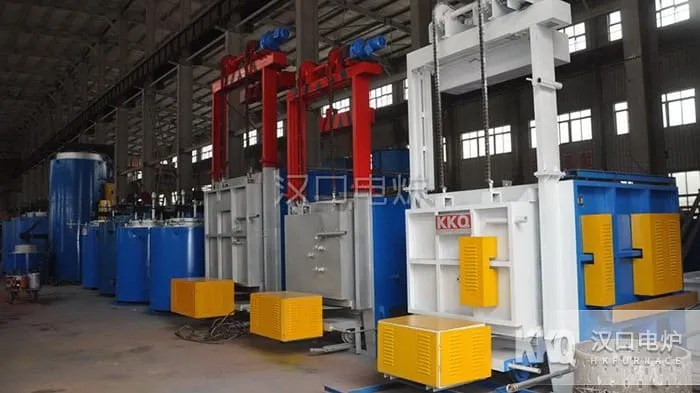

Its core feature is that it has a Bogie that can Stable enter and exit from the bottom as a carrier for loading workpieces, which is convenient for loading and unloading batch or heavy parts.
Equipment The movable Bogie with good thermal insulation performance and large load capacity has the advantages of convenient and fast workpiece loading and unloading, stable furnace structure Durable etc.

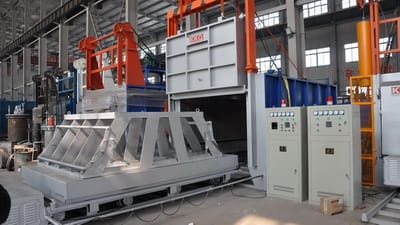

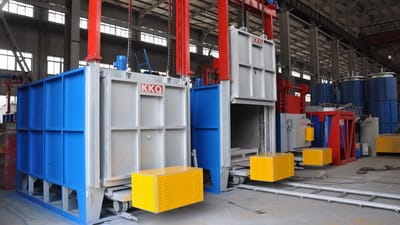

It is used for Quenching , annealing, Normalizing , Tempering and aging various heat treatments of high-chromium and high-manganese steel castings, Aluminum Alloy materials, metal structural parts, welded parts, Alloy Steel parts.
The RT4 series Bogie Furnace is the flagship product of Hankou Furnace Company, and its design and research and development are synchronized with international Industrial Furnace technology.

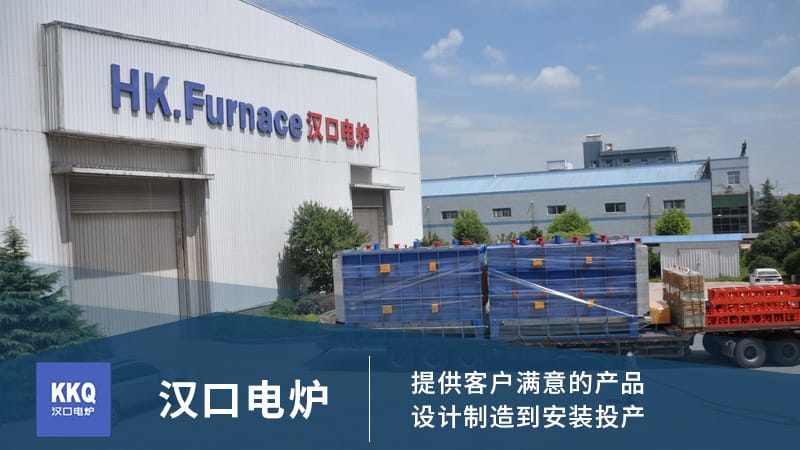

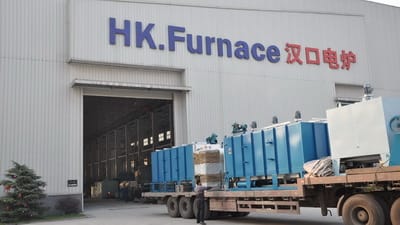

Bogie Furnace R&D and production base, Batch Production Production Line , export International Market and participate in international competition Equipment .
Furnace Chamber adopts high-purity Ceramic Fiber High Pressure modules with high specifications in the heat treatment industry, High Pressure masonry, with multiple anchorings, to ensure the high thermal insulation performance in the manufacturing of Furnace Lining .
Energy Saving emission reduction technology, Full-Fiber structure, the in-furnace Liter temperature rise speed is fast. Low thermal conductivity, low heat capacity, excellent corrosion resistance.

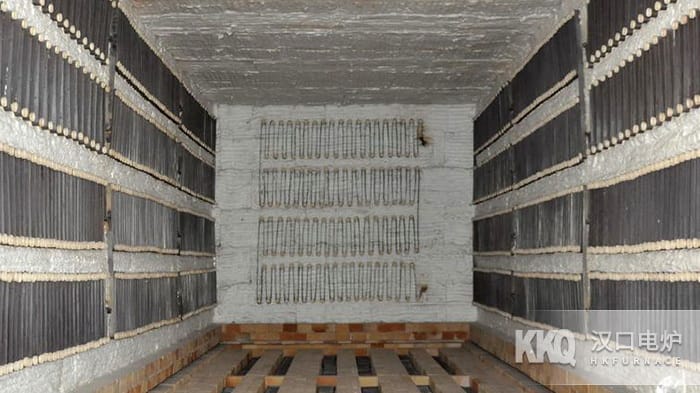

Heating Element is specially made Superalloy Resistance Strip , reasonably arranged on the five sides inside the furnace according to the uniform temperature design.
Good Oxidation Resistance energy , resistance to High Temperature , high load . Super High Temperature no cracking even when overheating , long term Year maintenance-free .

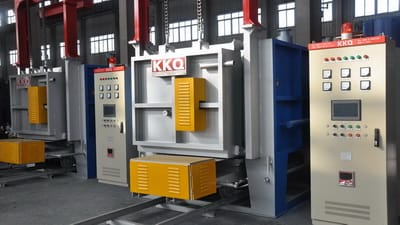

When applied in aviation Day Precision heat treatment and other applications, combined with High Precision temperature control system, the furnace temperature uniformity reaches ±3-5℃.

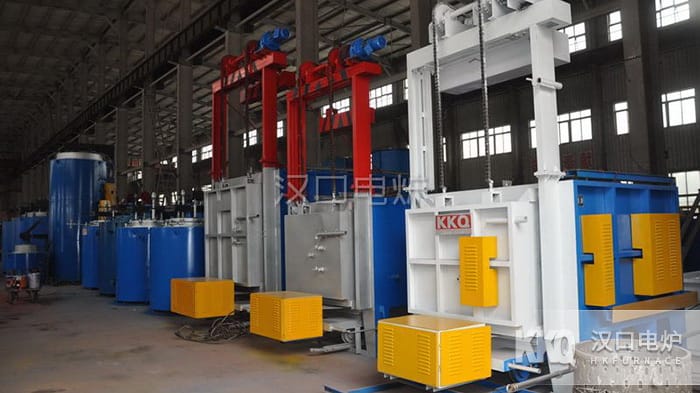

The outer shell steel structure is welded and formed by steel plates and section steels. The furnace body structure Durable is reinforced with combined channel steel.
Bogie The track adopts an integrated connecting track structure, it only needs to be fixed to the ground with anchor bolts, to ensure Bogie Furnace trouble-free operation during long-term use.

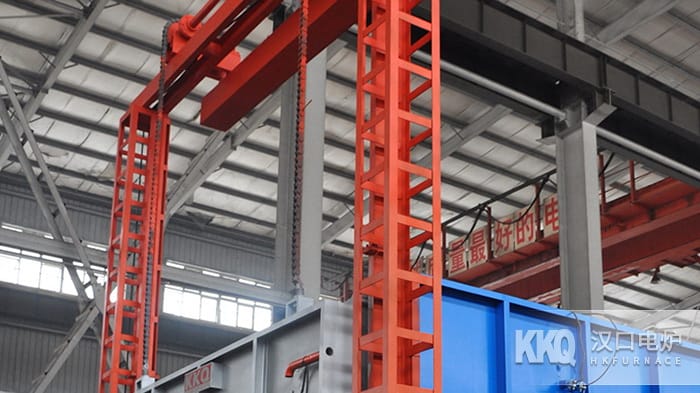

The gantry frame has a stable structure Durable , Furnace Door up and down Stable Operation . The track is pressed by its own weight, and has strong sealing performance.

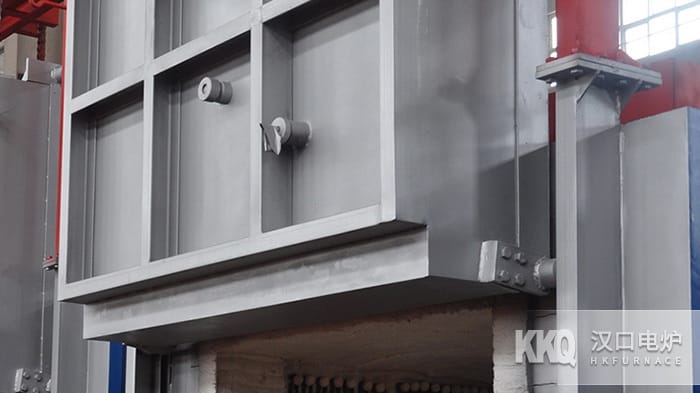

Adopt electric Liter lowering double guide rail Automatic seal Furnace Door , Full-Fiber heat preservation structure with sealing ring will not damage the masonry.

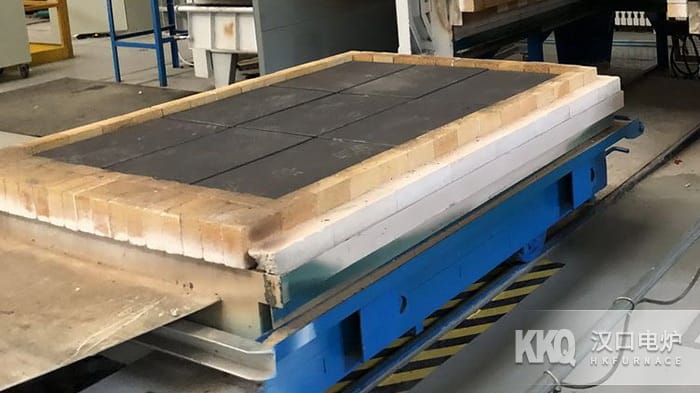

Charging Bogie heavy-load structure, the workpiece load is 1-200T, driven by a high-power power system. The sealing groove is a Automatic lifting Liter sand sealing mechanism, which effectively seals Bogie and the furnace body.
Bogie The surface is made of high-density high-alumina Firebrick , with matching heat-resistant High Temperature anti-collision and anti-slag Furnace Bottom plate, which does not deform after long-term use.

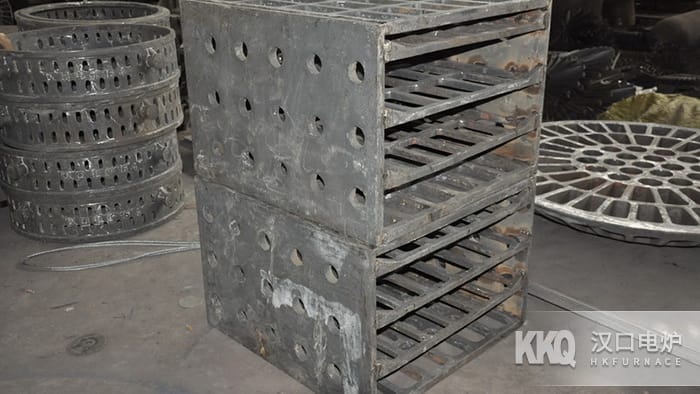

We design and manufacture all kinds of workpiece material frames, with quick and easy loading and unloading.
Material frames, Fixture , material magazines and various Tooling are all available.
Equipped with durable High Temperature impact-resistant and slag-free Furnace Bottom board, it will not deform after long-term use.

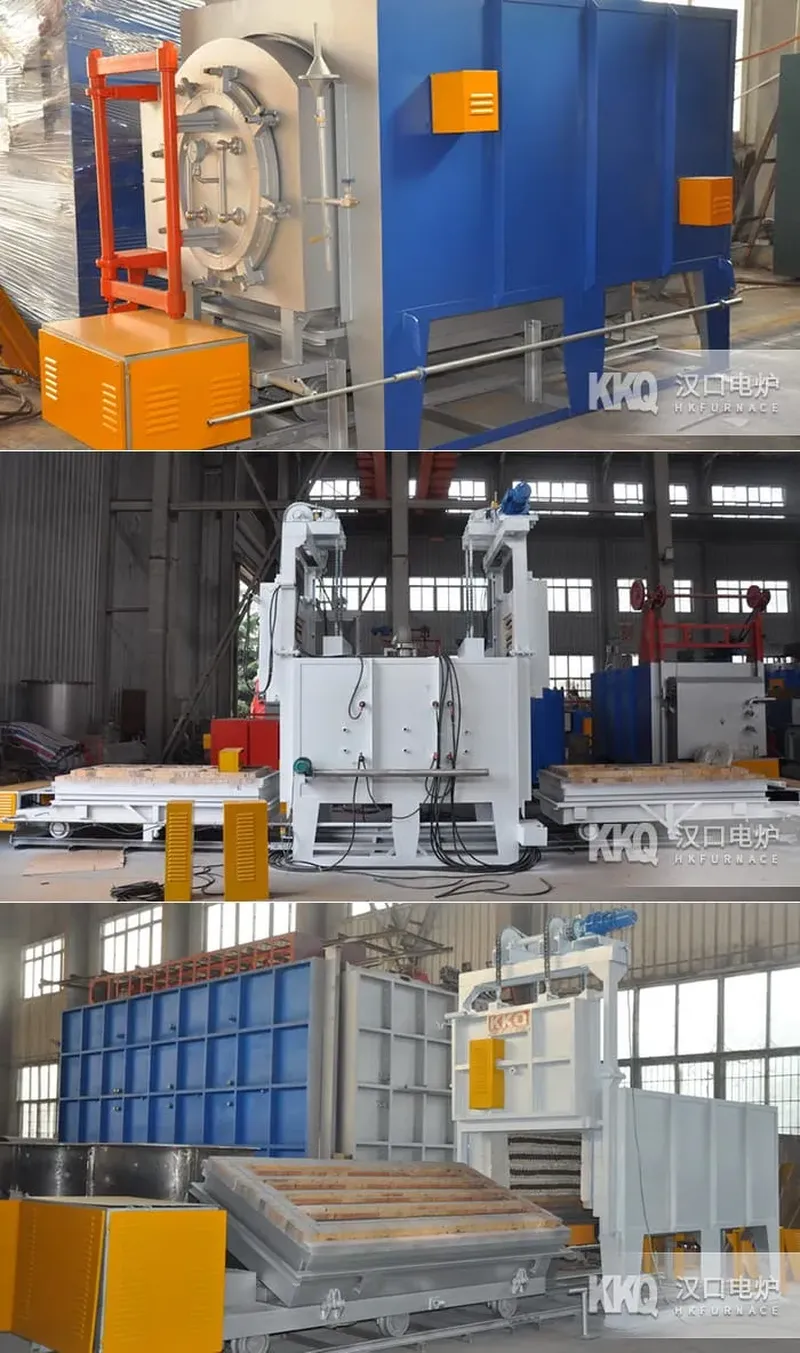

Vacuum Bogie Furnace , meets the requirement of no oxidation Vacuum Heat Treatment .

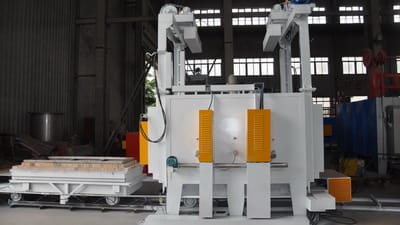

Double door Bogie Furnace , achieves continuous uninterrupted heat treatment.

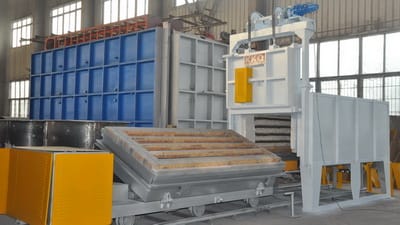

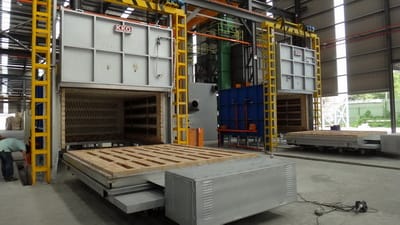

Flip Bogie Furnace , quickly complete the workpiece entering water Quenching .

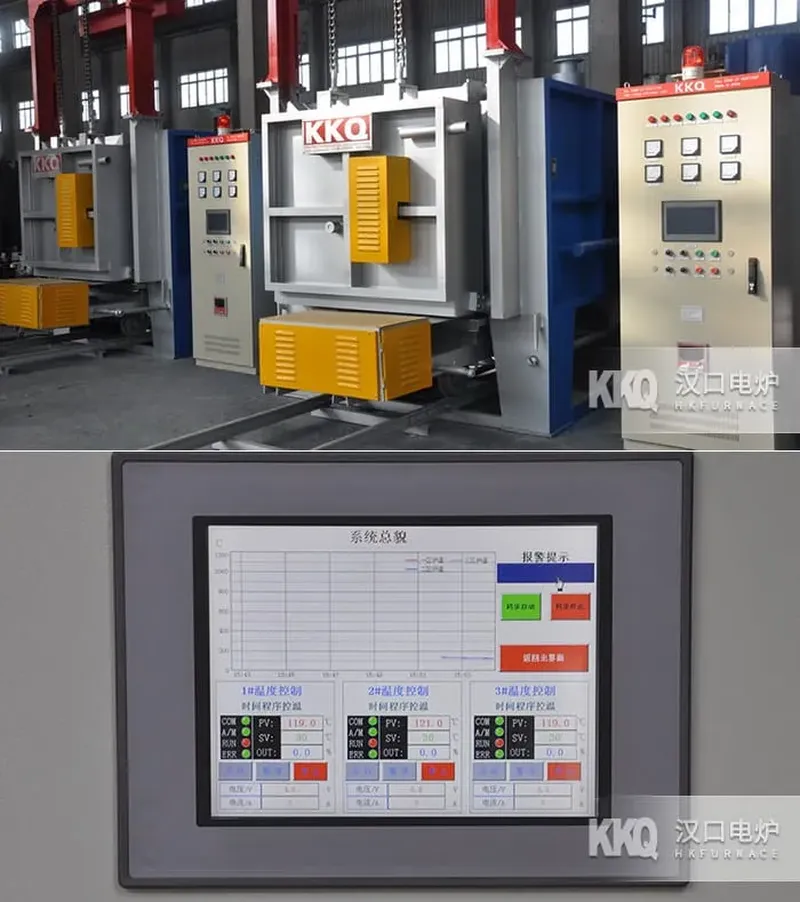

Hankou Furnace Independently developed temperature control system with graphical interface by the company, High Quality power regulation module, Precision process curve control.
Automation Process control enables the ideal heat treatment process curve to achieve High Precision implementation in practical applications, with a temperature control accuracy of ±1°C.
