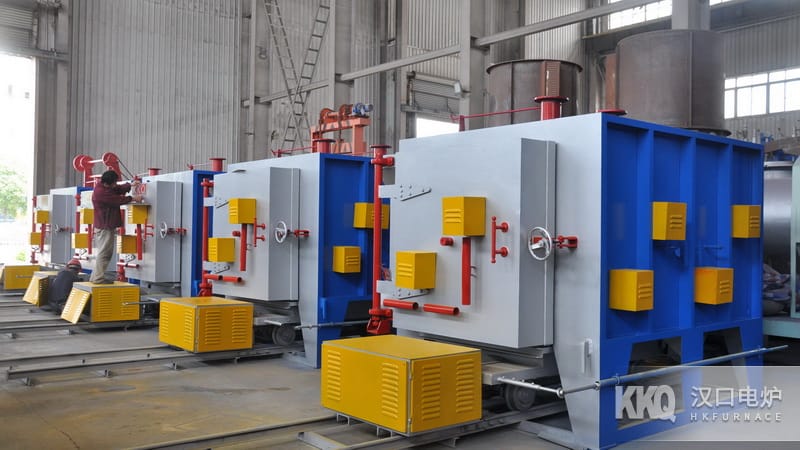

Bogie-type Rare Earth Catalyst Roasting Furnace

Bogie-type Rare Earth Catalyst Roasting Furnace

For catalyst roasting and rare earth roasting

Configure a multi-stage intake distribution, preheating

Working Temperature: 50-950℃(Adjustable 0-950℃)

Touch Screen Microcomputer Automatic Heat Treatment Process

Special non-metallic firing saggers

Contact Us: +86 13807177084 / hkfurnace@hotmail.com

Equipment Application

Bogie-type Rare Earth Catalyst Roasting Furnace is manufactured by our factory using Bogie Furnace professional technology, and it is a Industrial Electric Furnace specially used for catalyst roasting and rare earth roasting in the petrochemical industry. It can be used for roasting various non-metallic materials, and can also be used for drying and roasting various mineral products such as flux and bauxite ore.

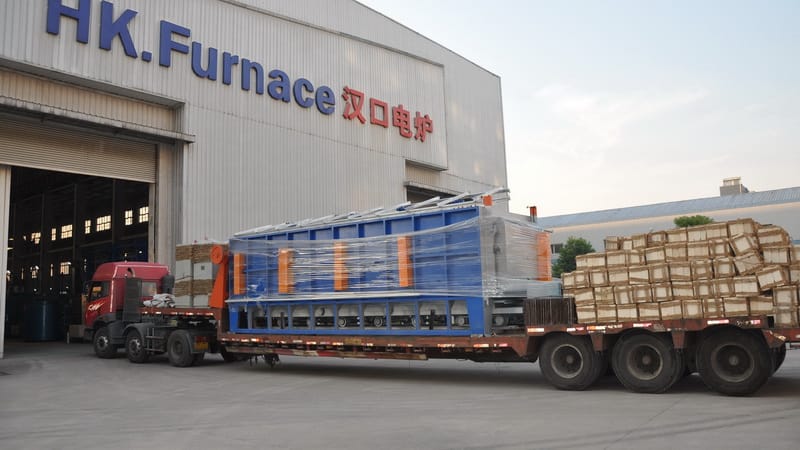

Bogie-type Rare Earth Catalyst Roasting Furnace Manufacturer

Configuration Features

This series of Bogie-Type Roasting Furnace is equipped with a multi-inlet distribution, preheating and uniform injection system, waste gas exhaust pipes and valves, as well as dedicated non-metallic roasting saggers. The entire roasting process is fully automatically controlled by microcomputer programmed process curves.

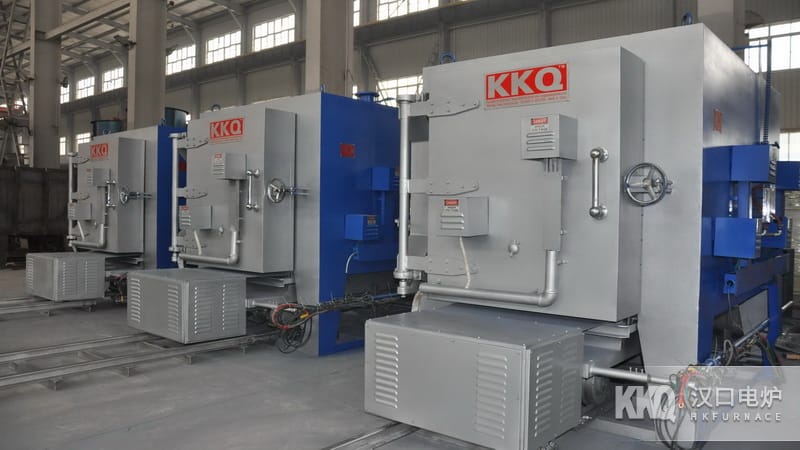

Bogie-type Roasting Furnace

Online Message

We will contact you as soon as possible. Chief Engineer Contact:
+86 13807177084(Wechat) / hkfurnace@hotmail.com

Technical Parameters

RTC-105-9
Rated Power105
Rated Voltage380
Frequency50
Phases3
Max Temperature950
Working Temperature0-950
Chamber Size (Length)1800
Width900
Height650
Connection MethodY
No-load Heating Time3.5-4
Temperature Control Accuracy±1
Loading Capacity250
Weight (Reference)4300
RTC-180-9
Rated Power180
Rated Voltage380
Frequency50
Phases3
Max Temperature950
Working Temperature0-950
Chamber Size (Length)2100
Width1050
Height750
Connection MethodY
No-load Heating Time3.5-4
Temperature Control Accuracy±1
Loading Capacity350
Weight (Reference)5800
RTC-240-9
Rated Power240
Rated Voltage380
Frequency50
Phases3
Max Temperature950
Working Temperature0-950
Chamber Size (Length)3000
Width1500
Height1000
Connection MethodY
No-load Heating Time3.5-4
Temperature Control Accuracy±1
Loading Capacity500
Weight (Reference)9000
RTC-320-9
Rated Power320
Rated Voltage380
Frequency50
Phases3
Max Temperature950
Working Temperature0-950
Chamber Size (Length)4500
Width1500
Height1000
Connection MethodY
No-load Heating Time3.5-4
Temperature Control Accuracy±1
Loading Capacity1200
Weight (Reference)9500

* Bogie-type Rare Earth Catalyst Roasting Furnaces of various specifications and sizes for users.
