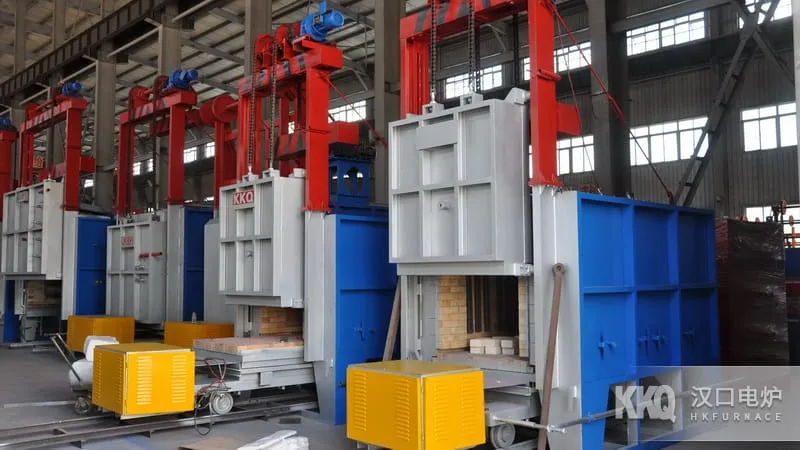

Bogie Furnace for Drill Bit Sintering

Bogie-type Drill Sintering Furnace

Power: 50-150KW

Max Temperature: 1200℃

Working Temperature: 1180℃ (0-1200℃ Adjustable)

Loading Capacity: 800-4500Kg

Mainly used for sintering of mining petroleum alloy drill bits

Contact Us: +86 13807177084 / hkfurnace@hotmail.com

Equipment Application

Bogie-type Drill Sintering Furnace is a standard Energy Saving type periodic operation sintering purpose Industrial Electric Furnace , mainly used for sintering of mining and petroleum alloy drill bits, adopts microcomputer Automatic temperature control cabinet High Precision for temperature control, fully Automatic implements sintering process curves, and is a widely used Heat Treatment Equipment in the alloy sintering industry.

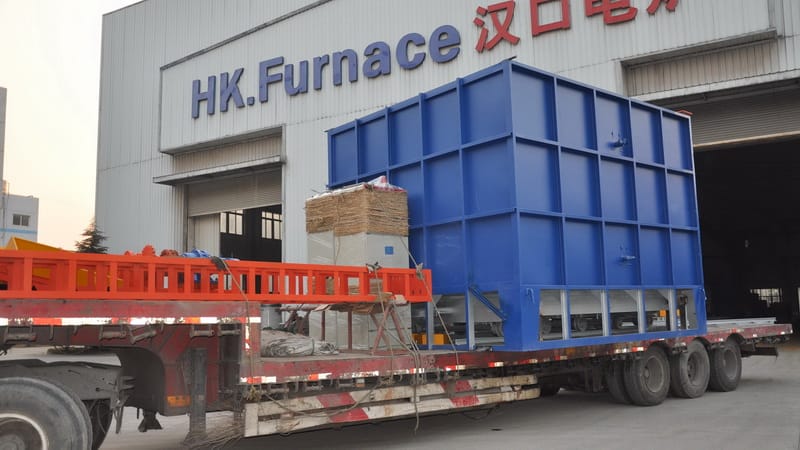

Bogie-type Drill Sintering Furnace Manufacturer

Online Message

We will contact you as soon as possible. Chief Engineer Contact:
+86 13807177084(Wechat) / hkfurnace@hotmail.com

Technical Parameters

RT4-50-12

Rated Power50

Rated Voltage380

Max Temperature1200

Working Temperature1180

Phases3

Chamber Size (Length)800

Width600

Height600

Connection MethodY

No-load Heating Time3.5

Temperature Control Accuracy±1-2

Max Loading Capacity800

Weight (Reference)3000

RT4-105-12

Rated Power105

Rated Voltage380

Max Temperature1200

Working Temperature1180

Phases3

Chamber Size (Length)1800

Width900

Height650

Connection MethodY

No-load Heating Time3.5

Temperature Control Accuracy±1-2

Max Loading Capacity3000

Weight (Reference)4600

RT4-150-12

Rated Power150

Rated Voltage380

Max Temperature1200

Working Temperature1180

Phases3

Chamber Size (Length)2000

Width1000

Height700

Connection MethodY

No-load Heating Time3.5

Temperature Control Accuracy±1-2

Max Loading Capacity4500

Weight (Reference)5100

* Bogie-type Drill Sintering Furnace of different sizes and different specifications for users.
