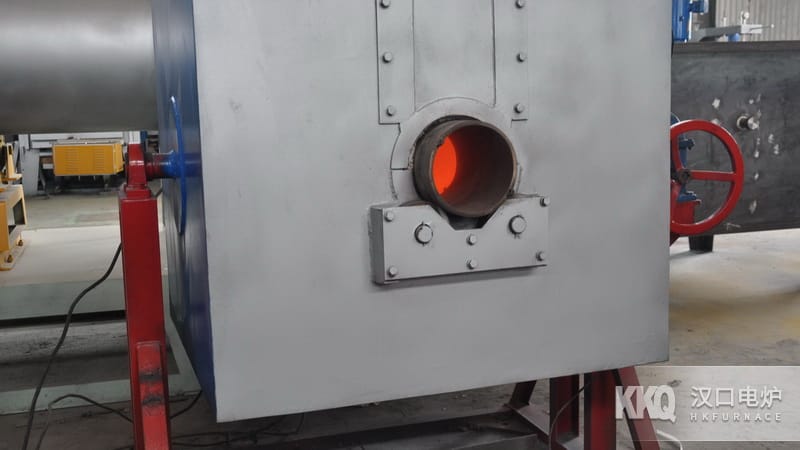

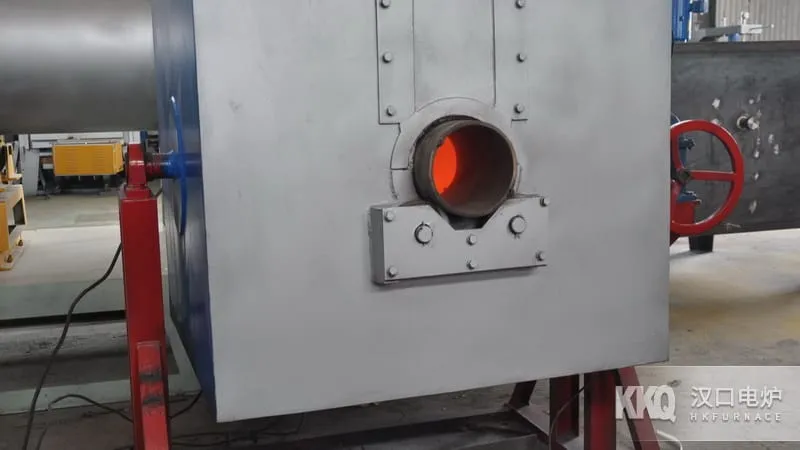

Rotary Waste Salt Roasting Furnace

Equipment Purpose and Characteristics

Hankou Furnace The GR2-180-9Rotary Waste Salt Roasting Furnace manufactured by the company is a professional Industrial Furnace for the protected harmless processing of industrial waste salt, it adopts Energy Saving emission reduction technology Ceramic Fiber High Pressure module Furnace Lining , wide-type Resistance Strip heating elements, microcomputer program roasting process curve Automatic temperature control, it is mainly used for waste salt roasting in Environmental Protection industry, Energy Saving Environmental Protection .

Structure Introduction

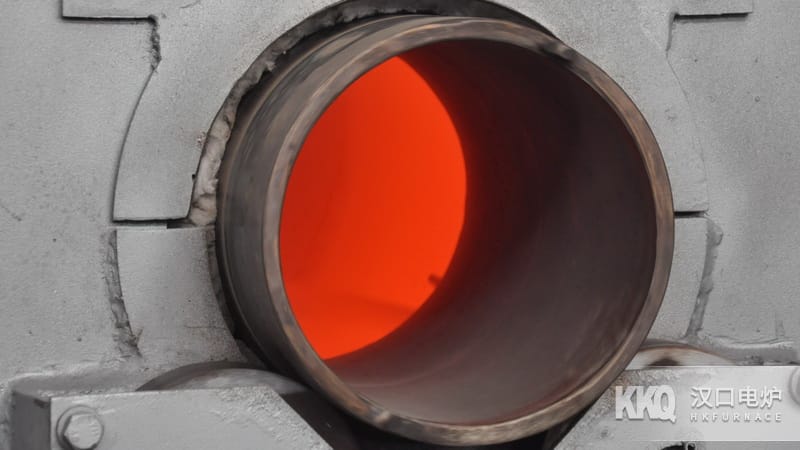

The rectangular furnace body is welded and assembled from section steel and steel plates, Furnace Chamber adopts Energy Saving emission reduction technology Ceramic Fiber High Pressure module Furnace Lining , high-alumina refractory hangers install Resistance Strip heating elements. The drum adopts Carbon Steel tubular spiral structure, and uses dense high-spiral technology, which ensures sufficient material turning, and the waste salt has a long running distance in the furnace. The spiral drum with a length of 8 Meter is equivalent to the行程 of a 20 Meter flight drum. The roasted ore material is uniform. It adopts the rotation mode of rear idler shaft and front idler, and the motor drives and adjusts the speed to rotate at 1-3r/min.

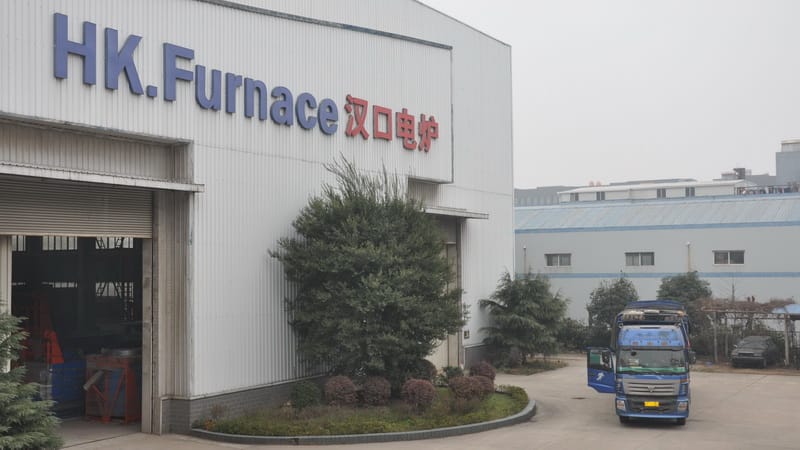

Rotary Waste Salt Roasting Furnace Manufacturer

Temperature Control

It adopts microcomputer program Automatic temperature control cabinet, Automatic completes the set roasting process, realizes the roasting process process Automation , each microcomputer program Automatic temperature control electric cabinet is installed with 6 sets of high-power plate-type thyristor outputs, which can control and adjust the power size, 0-100% stepless output, and can set eight-stage process curves.
