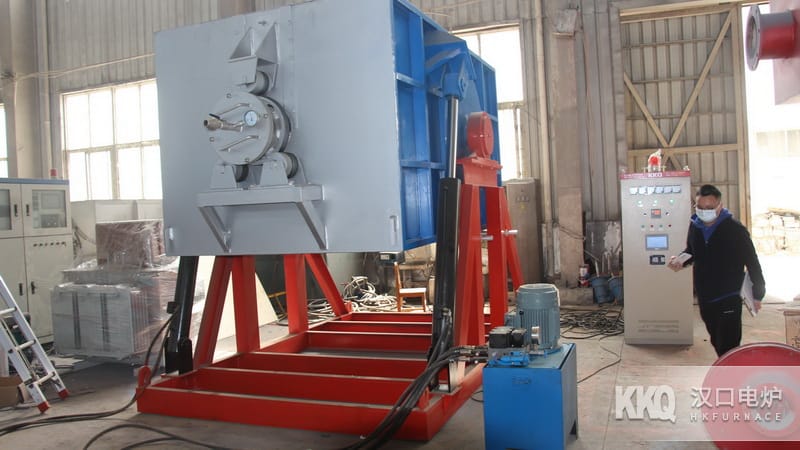

Rotary Lithium Anode Material Roasting Furnace

Equipment Application

Hankou Furnace Professionally manufactured Rotary Lithium Anode Material Roasting Furnace is mainly used for roasting graphite anode materials of lithium batteries, adopts process curve roasting method, board-turning material turning, nitrogen protection, rear air intake, front exhaust process. This series of roller-type Roasting Furnace has low failure rate, high productivity, and good roasting process Automation .

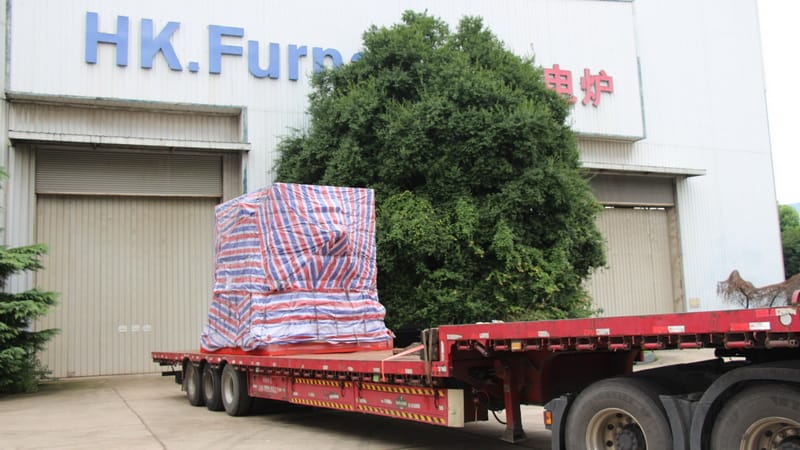

Lithium Battery Graphite Anode Material Roasting Furnace Manufacturer

Structure Introduction

1. Furnace body: The rectangular furnace body is assembled and welded from section steel and steel plates, it rotates horizontally during roasting and can tilt up and down.

2. Furnace Lining : Furnace Chamber adopts the latest Energy Saving emission reduction technology Ceramic Fiber High Pressure module Furnace Lining , high-alumina refractory fixture installation Resistance Strip .

3. Heating element: Uses long-life wide-type Resistance Strip OCr25AL5 heating elements wound into a corrugated shape, installed on both sides and the bottom of Furnace Chamber .

4. Stainless Steel Roller: The roller is made by rolling 10mm thick 304 Stainless Steel plate, and is driven by a reducer and a motor.

5. Air intake system: Install nitrogen gas pipelines and valves at the rear.

6. Exhaust System : Tar volatiles generated from asphalt during the roasting process are driven out of the furnace from the exhaust port.

7. Equipped with a matching exhaust hood, which is convenient for post-installation treatment Equipment for users, to pump the exhaust gas out of the workshop for centralized disposal.
