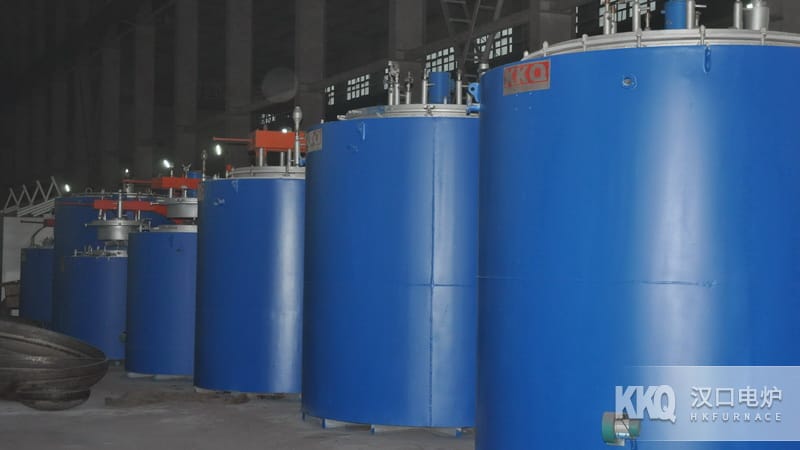

Molecular Sieve Vacuum Roasting Furnace

Equipment Features

Hankou Furnace The Molecular Sieve Vacuum Roasting Furnace manufactured by the company Equipment is a periodic operation type Energy Saving Industrial Electric Furnace mainly used for molecular sieve roasting, which adopts one furnace body with two vacuum tanks, the workshop Overhead Crane lifts the vacuum tanks, and uses an alternate production mode to improve Production Efficiency .

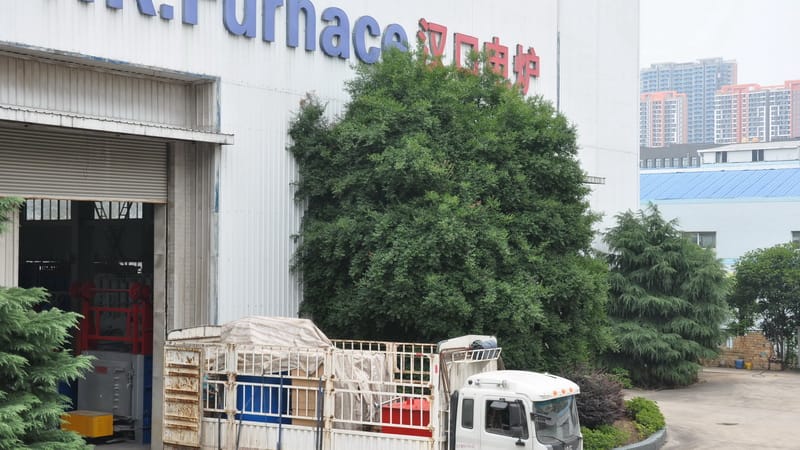

Molecular Sieve Vacuum Roasting Furnace Manufacturer

Structure Introduction

It is mainly composed of the furnace body outer shell steel structure assembly, Furnace Lining , heating elements, Stainless Steel vacuum tank, internal insulation Furnace Lid , Vacuum Pump , microcomputer program Automatic temperature control system and other components. It adopts Energy Saving emission reduction technology Ceramic Fiber High Pressure module Furnace Lining .

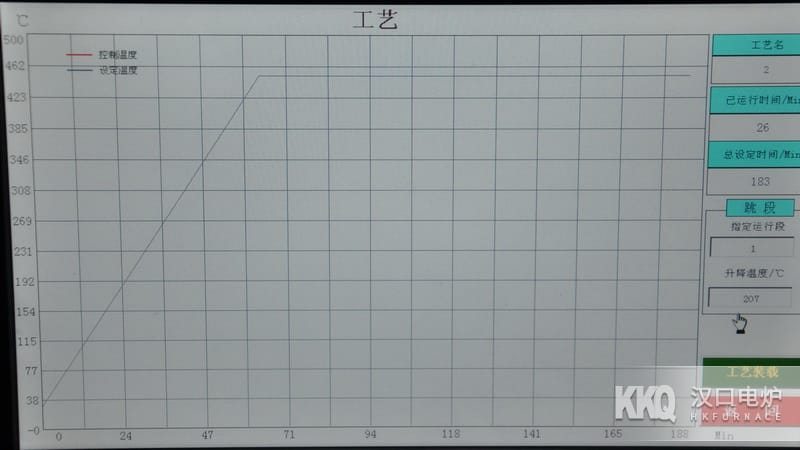

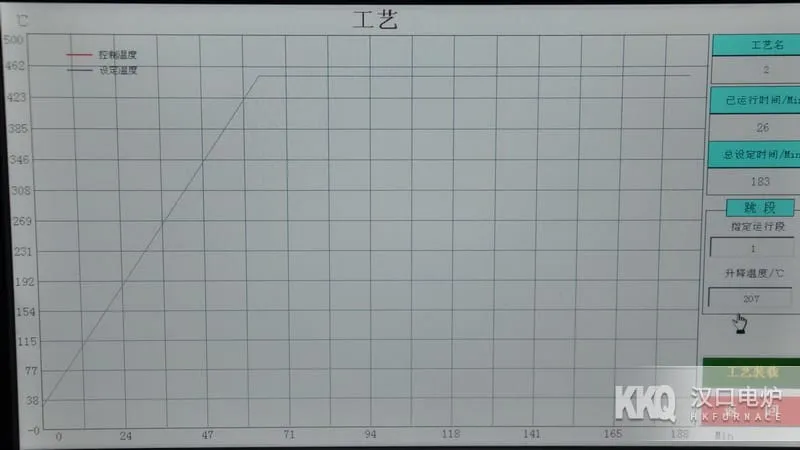

Temperature Control

Adopt microcomputer program Automatic temperature control cabinet, Automatic complete the set roasting process, realize the roasting process Automation , each microcomputer program Automatic temperature control electric cabinet is installed with 6 sets of high-power plate-type thyristor outputs, which can control and adjust the power size, 0-100% stepless output, can be arbitrarily set according to the needs of the roasting process, each section Liter temperature rate (that is, each Hour Liter temperature value, such as 0-150°C), each section holding temperature (that is, start heat preservation when reaching the required temperature), each section holding time (that is, how long to keep heat when reaching the required temperature), eight-section process curve can be set.
