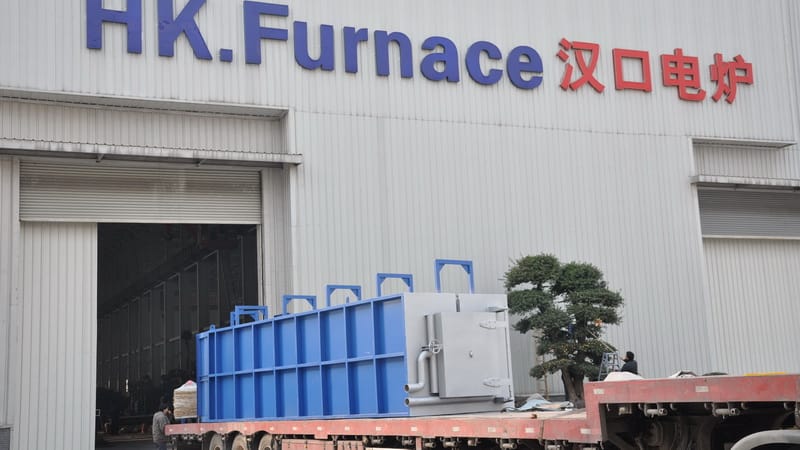

Tunnel Enamel Sintering Furnace

Equipment Uses and Features

RSD series Tunnel Enamel Sintering Furnace is a Energy Saving type continuous operation Industrial Furnace , mainly used for sintering enamel products such as enamel decorative boards, bathtubs, gas stove panels in the enamel industry Large . It adopts Full-Fiber Energy Saving composite Furnace Lining , nine-zone High Precision high uniform temperature microcomputer program temperature control, double Furnace Door opening size can be Automatic adjusted. Energy Saving effect, furnace temperature uniformity, Production Efficiency are completely consistent with similar imported Equipment .

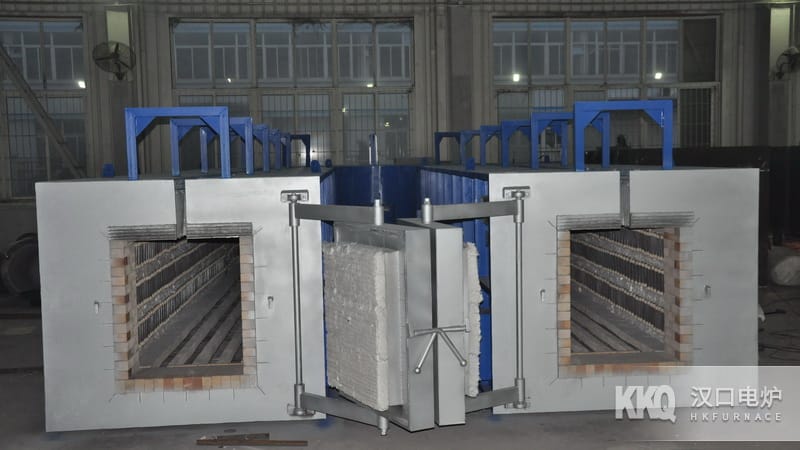

Structure Introduction

1. The outer casing of the Tunnel Enamel Sintering Furnace is welded from steel plates and section steel. The furnace body is densely welded from steel plates into a rectangular shape. This Porcelain Enamel Sintering Furnace Furnace Lining is made of Full-Fiber , it is Energy Saving type Sintering Furnace , ,

2. Furnace Roof Light overhead hanging conveyor lines can be installed above,

3. Sintering Furnace There are two pairs of opening gates at both ends. When the work piece passes through, Furnace Door can be opened to the maximum extent, and the opening width can be adjusted according to the width of the work piece.

4. Furnace Roof and Furnace Door all use Aluminosilicate Fiber profiles to make the fire-resistant insulation layer.

5. Furnace Lining material is made of high Strength lightweight Energy Saving type microbead refractory Insulating Brick , Furnace Lining to Furnace Shell inner interlayer is placed with super long Aluminosilicate Fiber blanket for heat preservation,

Control system

1. Temperature control is divided into 9 zones by 9 microcomputer Automatic temperature control cabinets, which greatly improves the temperature uniformity of the electric furnace, performs High Precision calculation and control on the temperature, and the temperature control accuracy is ±1℃.

2. Each temperature control electric cabinet is installed with 6 sets of thyristors as non-contact execution components, three voltmeters display each phase voltage, three ammeters display each phase Resistance Wire current.

3. It is equipped with various overvoltage and overcurrent protection and Cooling System . When any Resistance Wire fails, the instrument and lamp housing will display it directly. Each cabinet is equipped with overtemperature Alarm Function ,

4. Equipped with XWGJ medium circular diagram electronic potentiometer, Automatic records process temperature.
