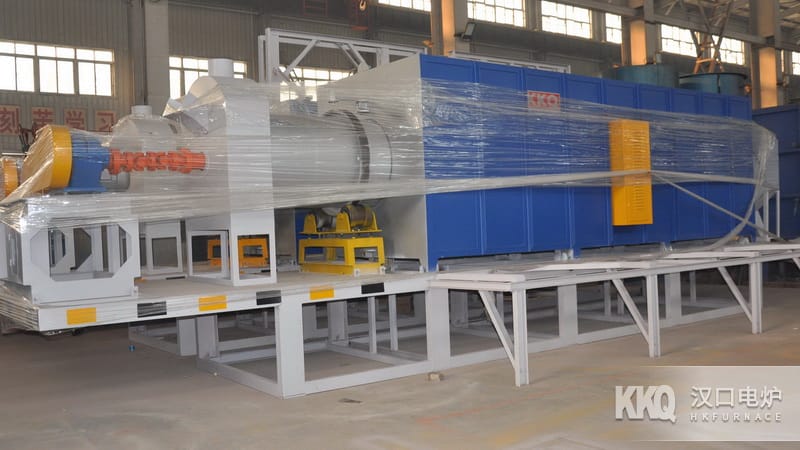

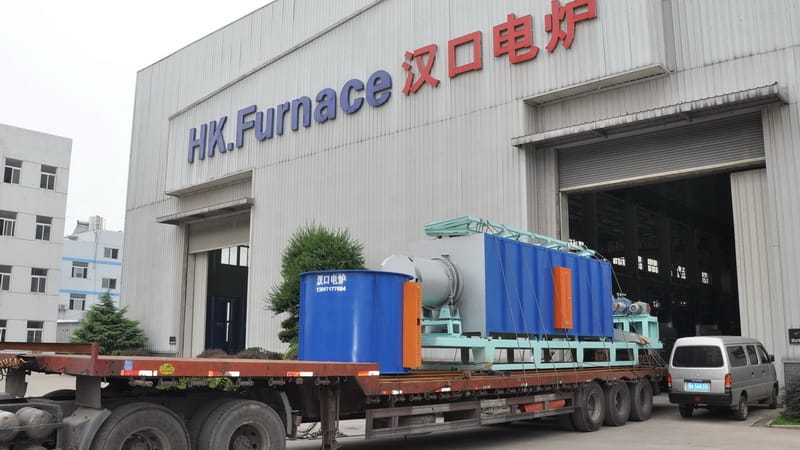

Rotary Gold Ore Roasting Furnace

Equipment Application

It is mainly used for continuous roasting of concentrated gold ore products or raw ore such as gold ore, carbon burning, sulfur removal, arsenic removal, with an output of 400kg/h. It is currently a Equipment with mature applications in gold ore roasting.

Structure Introduction

Furnace body: The section steel and steel plate are assembled and welded into a rectangular furnace body. The furnace body adopts a two-way split-opening structure. A transverse running track is installed at the lower part of the furnace body, and traveling wheels are installed on both sides of the furnace body.

Furnace Chamber : Adopt Ceramic Fiber High Pressure module Furnace Lining .

Heating element: high-alumina refractory hanger installation Resistance Strip .

Drum: adopts Carbon Steel pipe spiral structure, uses dense high-spiral technology, turns materials fully, gold ore and sand has a long operating distance inside the furnace, and roasted ore materials are uniform.

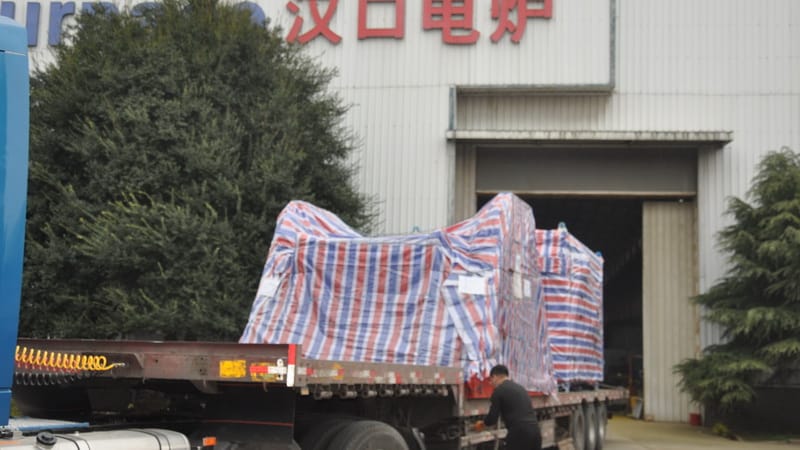

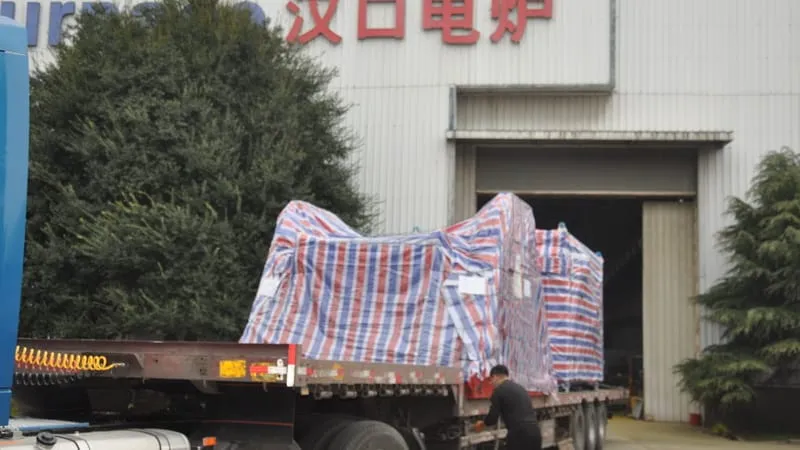

Gold Mine Roasting Furnace Production Manufacturer

Temperature Control

Adopt microcomputer program Automatic temperature control cabinet, Automatic complete the set roasting process, realize the roasting process process Automation , each microcomputer program Automatic temperature control electric cabinet is installed with 6 sets of high-power plate-type thyristor outputs, which can control and adjust the power size, 0-100% stepless output, and can set eight-stage process curves.

Electric heating is a type of static radiation heating, with sufficient material turning, all vermiculite can perform uniform heat exchange with the tank wall High Temperature , the overall expansion effect is very Stable , since there is no impact from gas combustion gases, there is basically no dust during the roasting process, the particle size is consistent, and there are very few fine particles.
