Bogie-type Mold Shell Roasting Furnace

Bogie-type Mould Shell Roasting Furnace

Power: 30-75KW

Max Temperature: 1200℃

Working Temperature: 1100℃ (0-1200℃ Adjustable)

Loading Capacity: 500-1200Kg

Suitable for sand mold shell High Temperature roasting

Contact Us: +86 13807177084 / hkfurnace@hotmail.com

Equipment Uses and Features

Bogie Type Investment Shell Roasting Furnace is a national standard Energy Saving type periodic operation roasting Industrial Furnace , which is specially used for Precision foundry industry, sand mold shell High Temperature roasting, gypsum wax mold sintering, with a roasting temperature of 1050℃. To prevent free Liter temperature cracking of sintered mold shells, microcomputer program temperature control is adopted, Automatic High Precision implements High Efficiency roasting temperature process curves.

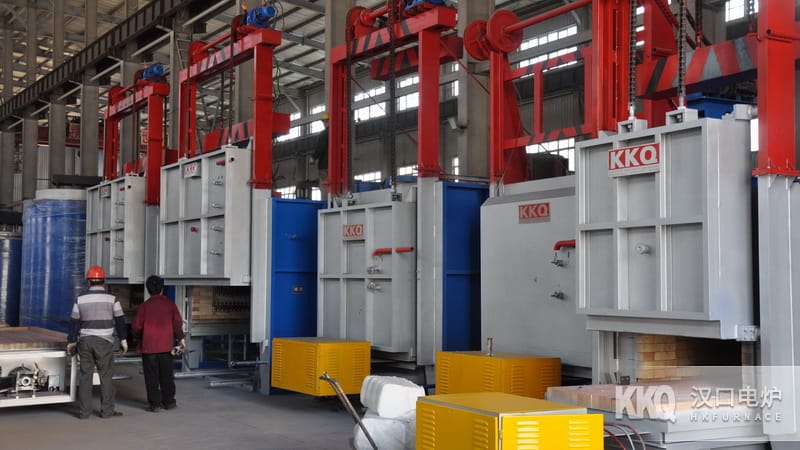

Bogie-type Mould Shell Roasting Furnace Manufacturer

Online Message

We will contact you as soon as possible. Chief Engineer Contact:
+86 13807177084(Wechat) / hkfurnace@hotmail.com

Technical Parameters

RT2-30-12

Rated Power30

Rated Voltage380

Max Temperature1200

Working Temperature1100

Chamber Size (Length)950

Width500

Height450

Connection MethodY

No-load Heating Time2.5

Temperature Control Accuracy±1-2

Temperature Uniformity±5-8

Max Loading Capacity500

Weight (Reference)3000

RT2-50-12

Rated Power50

Rated Voltage380

Max Temperature1200

Working Temperature1100

Chamber Size (Length)800

Width600

Height600

Connection MethodY

No-load Heating Time3

Temperature Control Accuracy±1-2

Temperature Uniformity±5-8

Max Loading Capacity800

Weight (Reference)4000

RT2-55-12

Rated Power55

Rated Voltage380

Max Temperature1200

Working Temperature1100

Chamber Size (Length)800

Width750

Height600

Connection MethodY

No-load Heating Time3.5

Temperature Control Accuracy±1-2

Temperature Uniformity±5-8

Max Loading Capacity800

Weight (Reference)4200

RT2-75-12

Rated Power75

Rated Voltage380

Max Temperature1200

Working Temperature1100

Chamber Size (Length)1100

Width800

Height600

Connection MethodY

No-load Heating Time3.5

Temperature Control Accuracy±1-2

Temperature Uniformity±5-8

Max Loading Capacity1200

Weight (Reference)4600

* Bogie Type Investment Shell Roasting Furnace of different sizes and different specifications for users.
