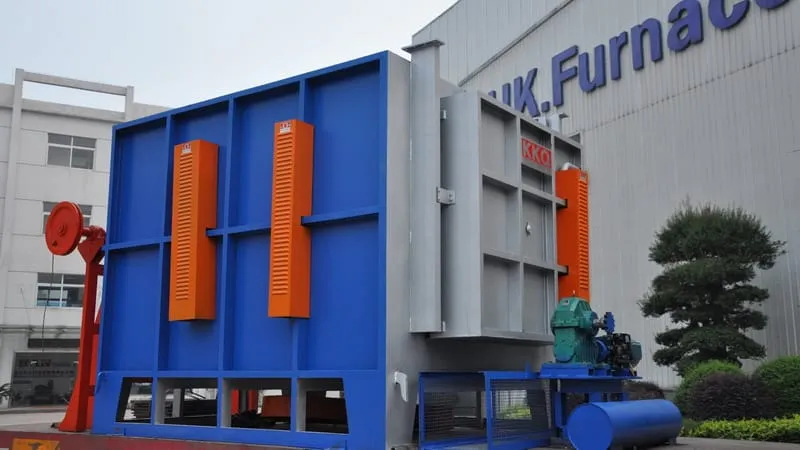

Bogie-type Alumina Sintering Furnace Manufacturer

Bogie-type Alumina Sintering Furnace

Power: 65-360KW

Max Temperature: 1200℃

Working Temperature: 0-1100℃ (0-1200 adjustable)

Material loading capacity: 100-1500Kg

Used for alumina sintering, special charging saggars

Contact Us: +86 13807177084 / hkfurnace@hotmail.com

Equipment Introduction and Uses

Bogie-type Alumina Sintering Furnace is mainly used for alumina sintering, and can also be used for roasting of mineral powders such as catalysts, bauxite, and kaolin. It adopts multi-point air intake, which makes the reaction in the sintering process sufficient. Furnace Roof It is equipped with exhaust pipes and valves, which can adjust the exhaust volume. The sintering process adopts microcomputer program process curve full Automation Precision temperature control, and is equipped with special powder sintering loading saggars, which do not produce chemical reactions with materials and do not pollute materials.

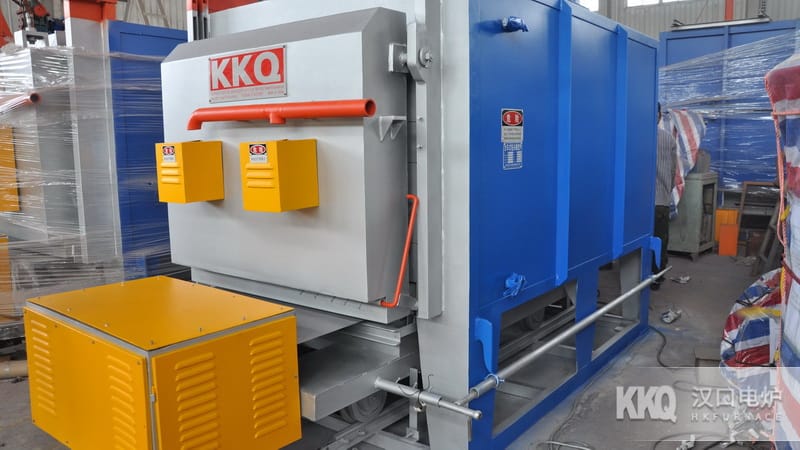

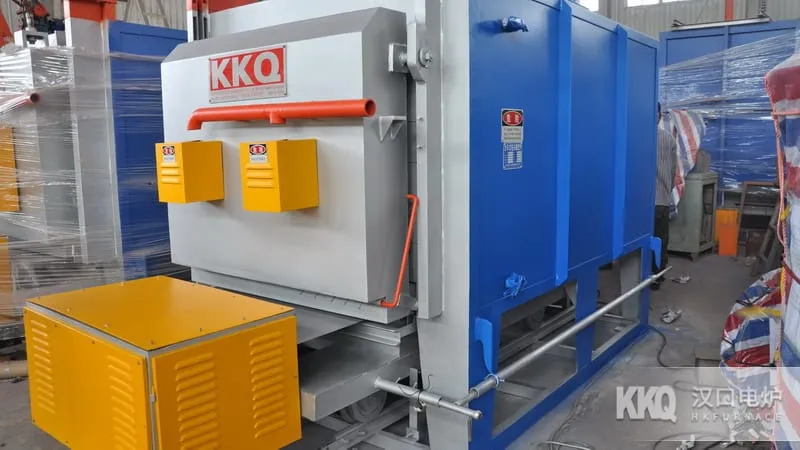

Alumina Sintering Furnace

Online Message

We will contact you as soon as possible. Chief Engineer Contact:
+86 13807177084(Wechat) / hkfurnace@hotmail.com

Technical Parameters

RT4-65-12
Rated Power65
Rated Voltage380
Frequency50
Phases3
Max Temperature1200
Working Temperature0-1100
Chamber Size (Length)1200
Width600
Height450
Connection MethodY
No-load Heating Time3
Temperature Control Accuracy±1
Load Capacity100
Weight (Reference)2800
RT4-90-12
Rated Power90
Rated Voltage380
Frequency50
Phases3
Max Temperature1200
Working Temperature0-1100
Chamber Size (Length)1800
Width900
Height600
Connection MethodY
No-load Heating Time3
Temperature Control Accuracy±1
Load Capacity200
Weight (Reference)4000
RT4-180-12
Rated Power180
Rated Voltage380
Frequency50
Phases3
Max Temperature1200
Working Temperature0-1100
Chamber Size (Length)2100
Width1050
Height750
Connection MethodY
No-load Heating Time3.5
Temperature Control Accuracy±1
Load Capacity350
Weight (Reference)5800
RT4-240-12
Rated Power240
Rated Voltage380
Frequency50
Phases3
Max Temperature1200
Working Temperature0-1100
Chamber Size (Length)3000
Width1500
Height1000
Connection MethodY
No-load Heating Time4
Temperature Control Accuracy±1
Load Capacity500
Weight (Reference)9000
RT4-300-12
Rated Power300
Rated Voltage380
Frequency50
Phases3
Max Temperature1200
Working Temperature0-1100
Chamber Size (Length)4000
Width1500
Height1000
Connection MethodY
No-load Heating Time4
Temperature Control Accuracy±1
Load Capacity900
Weight (Reference)9400
RT4-360-12
Rated Power360
Rated Voltage380
Frequency50
Phases3
Max Temperature1200
Working Temperature0-1100
Chamber Size (Length)5000
Width1500
Height1000
Connection MethodY
No-load Heating Time4.5
Temperature Control Accuracy±1
Load Capacity1500
Weight (Reference)11000

* Bogie-type Alumina Sintering Furnace of various specifications and sizes for users.
