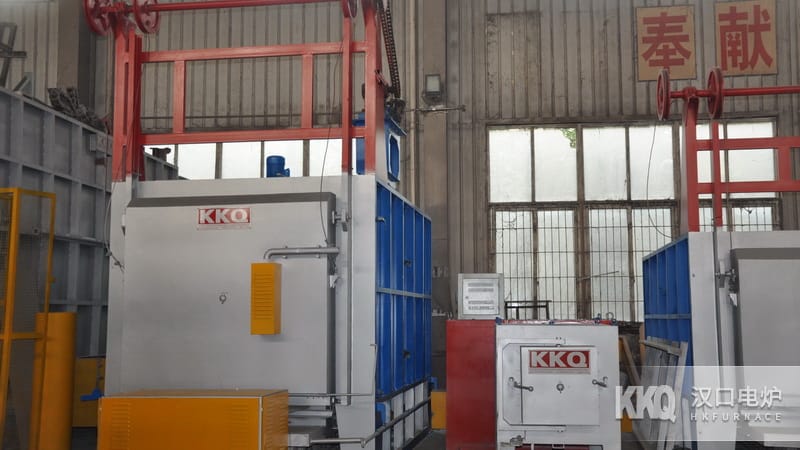

Shrink Fitting Bogie Furnace

Shrink Fitting Bogie Furnace

Power: 75-105KW

Max Temperature: 400℃

Working Temperature: 300℃

Loading Capacity: 1000-3000Kg

Heating in shrink fitting and hot assembling applications

Contact Us: +86 13807177084 / hkfurnace@hotmail.com

Equipment Application

Shrink Fitting Bogie Furnace is Energy Saving type periodic operation Industrial Furnace , it is mainly used for special heating of pump bodies in the water pump manufacturing industry, and can also be used for shrink fitting and thermal assembly heating of motor rotors in the motor manufacturing industry.

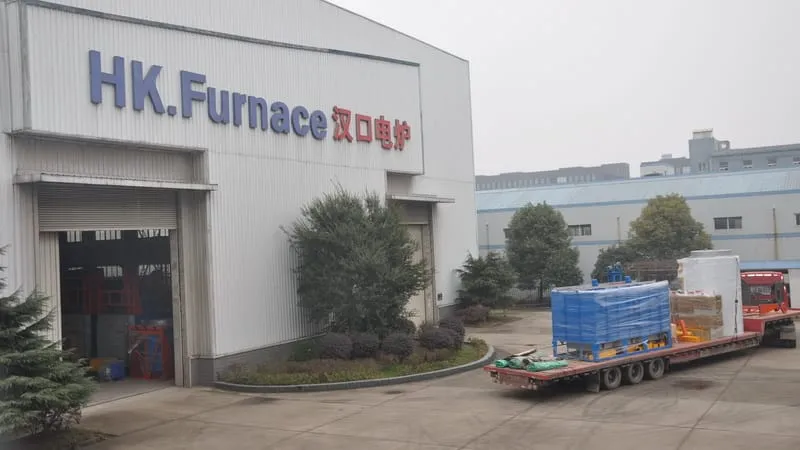

Shrink Fitting Bogie Furnace Manufacturer

Online Message

We will contact you as soon as possible. Chief Engineer Contact:
+86 13807177084(Wechat) / hkfurnace@hotmail.com

Technical Parameters

RT4-75-4

Rated Power75

Energy Saving Power45

Rated Voltage380

Max Temperature400

Working Temperature300

Chamber Size (Length)1500

Width750

Height700

Connection MethodY

No-load Heating Time1

Temperature Control Accuracy±1-2

Temperature Uniformity±5-8

Max Loading Capacity1000

Weight (Reference)4000

RT4-90-4

Rated Power90

Energy Saving Power54

Rated Voltage380

Max Temperature400

Working Temperature300

Chamber Size (Length)1800

Width900

Height900

Connection MethodY

No-load Heating Time1

Temperature Control Accuracy±1-2

Temperature Uniformity±5-8

Max Loading Capacity2000

Weight (Reference)4400

RT4-105-4

Rated Power105

Energy Saving Power75

Rated Voltage380

Max Temperature400

Working Temperature300

Chamber Size (Length)2000

Width1000

Height1000

Connection MethodY

No-load Heating Time1

Temperature Control Accuracy±1-2

Temperature Uniformity±5-8

Max Loading Capacity3000

Weight (Reference)4800

* Can design and manufacture Shrink Fitting Bogie Furnaces of various specifications and dimensions for users.
