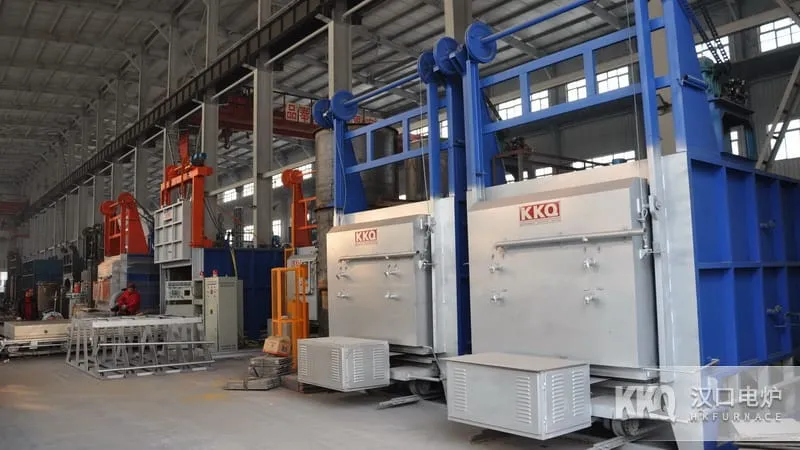

Bogie-type Mold Preheating Furnace

Bogie-type Mold Preheating Furnace

Power: 180KW

Max Temperature: 500℃

Working Temperature: 400℃ (0-300℃ adjustable)

Loading Capacity: 6000Kg

Suitable for preheating of molds before die casting

Contact Us: +86 13807177084 / hkfurnace@hotmail.com

Equipment Application

Bogie-type Mold Preheating Furnace is Energy Saving type periodic operation preheating Industrial Furnace , mainly suitable for preheating molds before die casting such as Aluminum Alloy wheel hubs, and can also be used for Tempering of various mechanical parts. It adopts microcomputer program Automatic temperature control, and High Precision executes High Precision heat treatment process curves.

Bogie-type Mold Preheating Furnace Manufacturer

Online Message

We will contact you as soon as possible. Chief Engineer Contact:
+86 13807177084(Wechat) / hkfurnace@hotmail.com

Technical Parameters

RT4-180-5

Rated Power180

Rated Voltage380

Max Temperature500

Working Temperature400

Phases3

Chamber Size (Length)2800

Width1400

Height1000

Heating Zone2

Connection MethodY

No-load Heating Time2.5

Temperature Control Accuracy±1-2

Temperature Uniformity±5-8

Max Loading Capacity6000

Weight (Reference)14000

RT4-190-5

Rated Power190

Rated Voltage380

Max Temperature500

Working Temperature400

Phases3

Chamber Size (Length)3000

Width1200

Height1200

Heating Zone2

Connection MethodY

No-load Heating Time2.5

Temperature Control Accuracy±1-2

Temperature Uniformity±5-8

Max Loading Capacity6500

Weight (Reference)15000

* Bogie-type Mold Preheating Furnaces of different sizes and different specifications for users.
