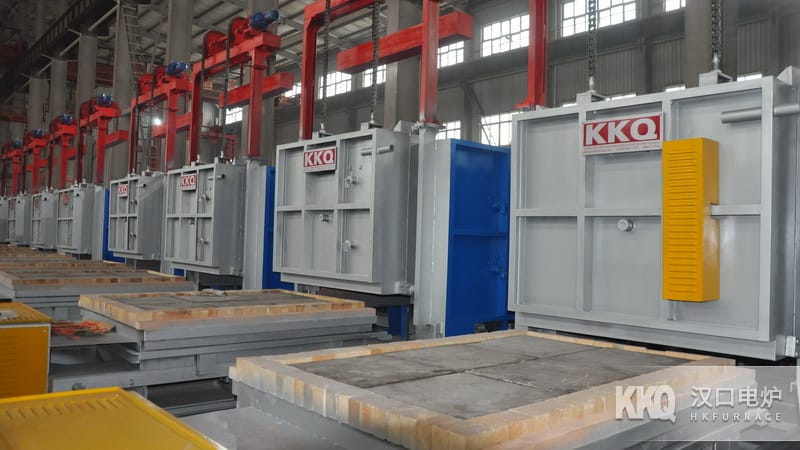

Full Fiber Annealing Bogie Furnace

Equipment Application

Full Fiber Annealing Bogie Furnace is a widely used annealing heat treatment application in various mechanical manufacturing industries Industrial Electric Furnace . It can heat workpieces such as steel castings, welded parts, and spindles in air or protective atmosphere, and is used for residual stress annealing, Full Annealing , Spheroidizing Annealing , softening annealing heat treatment, etc.

As a new type of heat treatment Energy Saving Environmental Protection Industrial Furnace , in addition to being suitable for annealing heat treatment of various metal workpieces, it can also be used for drying and roasting of products in the chemical industry and powder metallurgy industry.

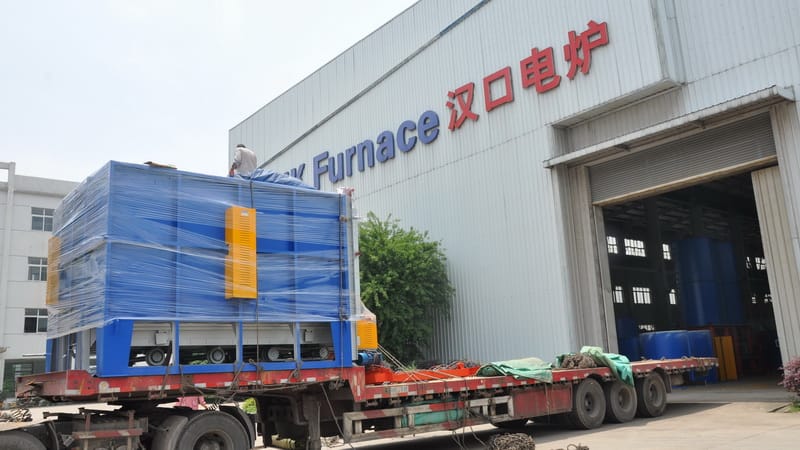

Full Fiber Annealing Bogie Furnace Manufacturer

Structural Features

1. Full-Fiber Furnace Lining partially adopts domestic High Quality new type Ceramic Fiber . Before construction, use the special compression Equipment manufactured by Furnace Lining , compress the long strip Ceramic Fiber Blanket into modules with specification of 300×300×300 according to the wave overlapping method High Pressure . When installing Full-Fiber modules, the construction technology is to leave a certain amount of compression between modules. When used at this Bogie Furnace Liter temperature, Ceramic Fiber Module expands in different directions after being heated, so that the entire Full-Fiber Furnace Lining forms a gapless whole, so as to achieve good heat insulation and heat preservation effects. The power saving effect is 15-30% saved compared with the traditional Firebrick furnace type, and Long Service Life reaches 5-8 Year .

2. Heating Element uses 0Cr25Al5 material High Temperature resistance alloy strip to be wound into a corrugated shape, fixed and mounted on four directions of Bogie Furnace with high-alumina ceramic pins, the two sides of the furnace body, Furnace Door and the rear wall, Heating Element on Bogie is directly installed on Furnace Bottom wire holding brick, the service life can reach 3~5 Year .

3. Bogie is designed with heavy-duty steel structure, which greatly increases the loading capacity. Bogie and Furnace Door are respectively equipped with independently operating power mechanisms to electrically牵引 the entry and exit of Furnace Door . Bogie and Furnace Door Liter lowering operating system has a complete set of Safe locking devices to prevent damage to Equipment caused by misoperation.

4. Temperature Control part is controlled by a microcomputer Intelligent program temperature control system, Liter heating speed, heat preservation temperature and heat preservation time can be adjusted and programmed, which is equivalent to 48-segment temperature control of ordinary temperature control instruments. Its control accuracy can reach ±1℃, and the full Automatic implements the annealing process temperature curve.

5. This series Equipment has the advantages of Safety performance, excellent Energy Saving effect, good temperature uniformity, etc., and can replace the Firebrick heat preservation structure Bogie Furnace currently commonly used in the heat treatment industry.

6. Compared with brick-mixed fibers, due to the Furnace Lining structure, the material manufacturing process makes the Firebrick structure more thermal-insulating and more Energy Saving . It is a Bogie Furnace furnace type that has been widely used by the majority of annealing users in recent Year .
