Power: 75-300KW
Max Temperature: 950℃
Working Temperature: 950℃(Adjustable 0-950℃)
Loading Capacity: 1500-11000Kg
Used for annealing heat treatment of workpieces
Contact Us: +86 13807177084 / hkfurnace@hotmail.com
RT4 Series Bogie-Type Annealing Furnace is mainly used for annealing heat treatment of workpieces such as mold annealed high-chromium high-manganese steel castings, gray cast Cast Iron parts, rolls, steel balls, wear-resistant liners.
1. This series Bogie-Type Annealing Furnace is Industrial Furnace produced by our company with professional technology. While implementing Precision annealing process at Automatic , it can quickly Liter temperature and heat preservation, and complete the heat treatment process of High Efficiency and Energy Saving .
2. Bogie-Type Annealing Furnace adopts Energy Saving Furnace Lining structure, uses high-specification and high-purity Ceramic Fiber for heat preservation, the heat preservation effect is obvious, the outside temperature difference of Furnace Wall is small.
3. Our company Annealing Furnace 's Heating Element adopts the internationally commonly used OCr25Al5 Resistance Strip , with a maximum High Temperature of 1250°C, ensuring Quality Assurance that the material meets standards.

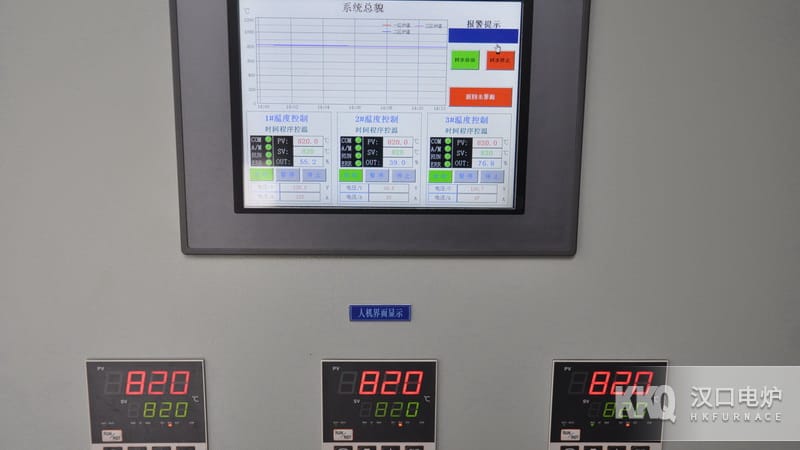

4. The Annealing Furnace dedicated Automation temperature control system independently developed by our factory is used to achieve the full High Precision annealing process curve, with temperature control accuracy of ±1℃.
Bogie The installed Heat Resistant Steel Furnace Bottom plate is used for carrying workpieces. In order to prevent oxide scale generated after workpiece heating from falling through the gaps of the Furnace Bottom plate into the area around the bottom Heating Element and causing damage to Heating Element , it is necessary to regularly maintain and blow off the oxide scale below the Bogie Furnace bottom plate. Blowing the oxide scale clean can achieve long-term trouble-free use.
We will contact you as soon as possible. Chief Engineer Contact:
+86 13807177084(Wechat) / hkfurnace@hotmail.com
* Bogie-Type Annealing Furnace of different sizes and specifications for users.
It collects on-site cases of bogie furnaces across the country
Hankou Furnace boasts 50 years of manufacturing experience
