Power: 60-240KW
Max Temperature: 950℃
Working Temperature: 650-950℃ (Adjustable 0-950℃)
Loading Capacity: 800-6500Kg
Annealing heat treatment is performed on long shaft part
Contact Us: +86 13807177084 / hkfurnace@hotmail.com

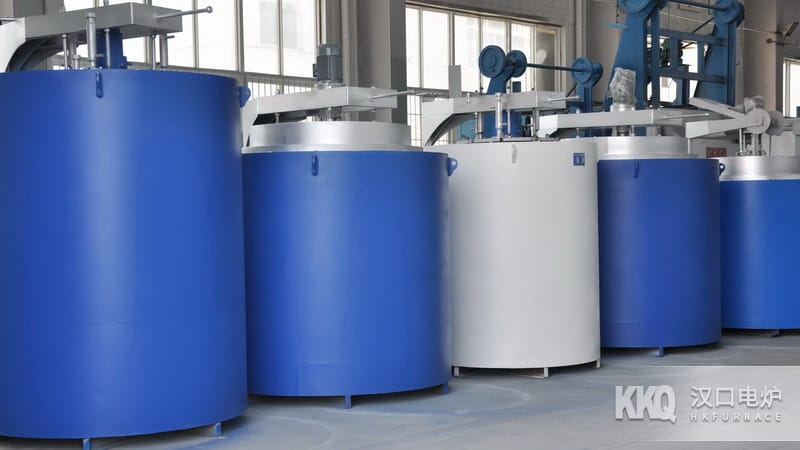

Pit type Annealing Furnace is a national standard Energy Saving type Industrial Furnace , mainly used for annealing heat treatment of mechanical parts such as long shafts, rods and pipe fittings, and can also be used for Normalizing , Quenching and other heat treatments. Long rod-shaped workpieces, such as gun barrels, turbine shafts and rotors, are vertically loaded and heated in Pit Furnace , which can avoid bending deformation.
The outer shell of the Pit type Annealing Furnace is a Pit Furnace body structure, with composite heat insulation made of high-alumina Firebrick and Aluminosilicate Fiber . When Full-Fiber is used for Furnace Lining heat insulation, the heating elements generally use High Temperature Resistance Strip heating, which has a longer service life and is not easy to break. All Automatic controls of the Pit type Annealing Furnace cover of our factory have Safe protection. When Furnace Lid is opened, Automatic cuts off the control power, and heating can only start when Furnace Lid is tightly closed, to ensure the safety of operating personnel Safe .
We will contact you as soon as possible. Chief Engineer Contact:
+86 13807177084(Wechat) / hkfurnace@hotmail.com
* Pit type Annealing Furnace of various specifications and dimensions for users.

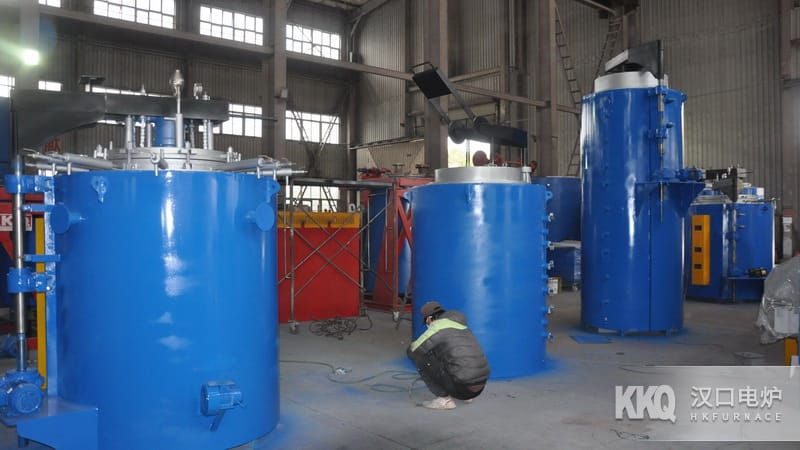

It collects on-site pit furnace cases across the country

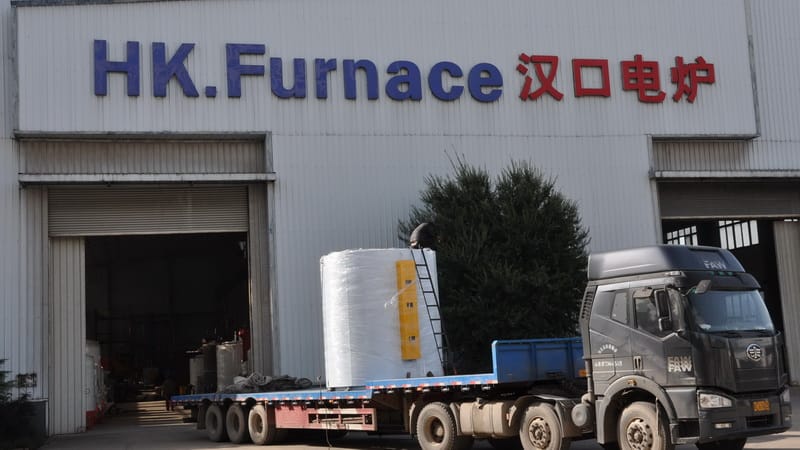

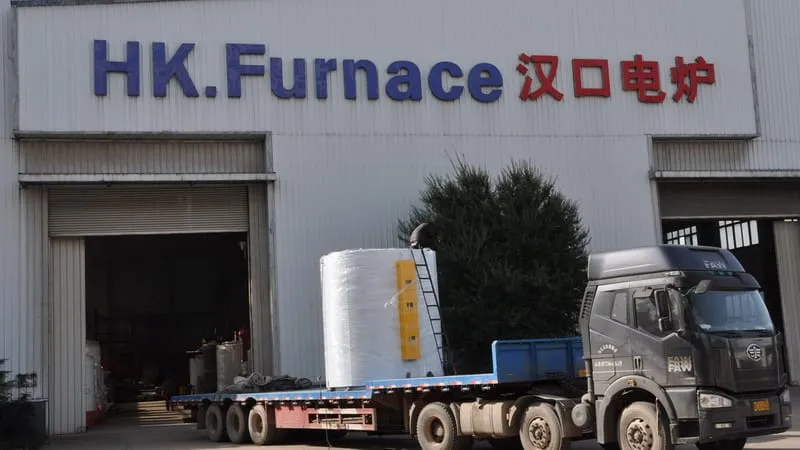

Hankou Furnace boasts 50 years of manufacturing experience
