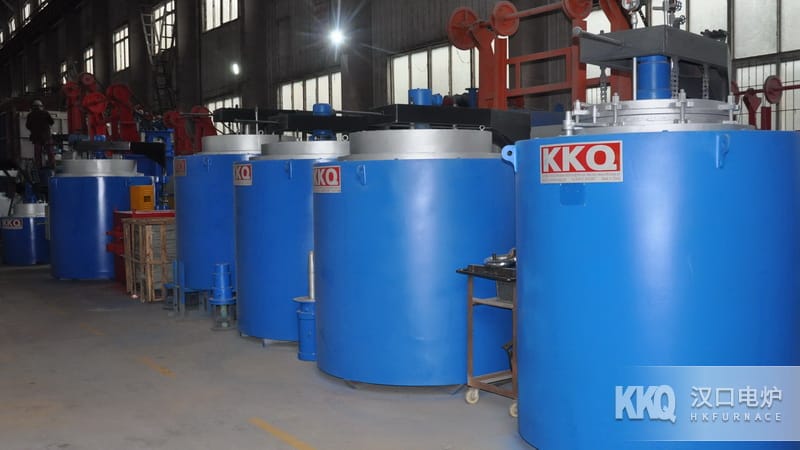

Pit Type Aluminum Alloy Aging Furnace

Equipment Application

RJ3 Series Pit Type Aluminum Alloy aging furnace is Energy Saving type periodic operation Industrial Furnace , it is used for aging heat treatment of Aluminum Alloy die castings, aluminum profiles, pistons and other Aluminum Alloy parts under high uniform temperature conditions. The product implements the China aviation industry Ministry Standard standard GJB509-98-88, can be used in the aerospace and aviation aircraft Precision manufacturing industries, it uses the Touch Screen microcomputer program temperature control cabinet independently developed by our factory, to realize High Precision full Automatic temperature control of the process curve.

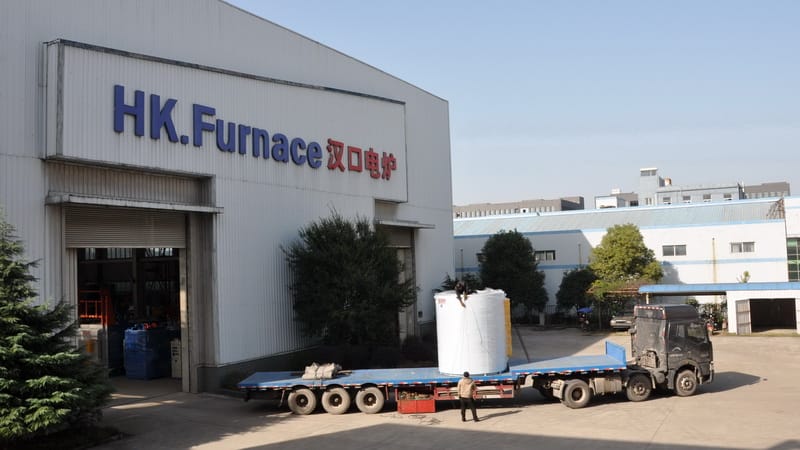

Pit Type Aluminum Alloy Aging Furnace Manufacturer

Structure Introduction

1. Pit Type Aluminum Alloy The shell of the aging furnace is made of steel plates and section steel into a cylindrical furnace body, which is a typical Energy Saving type Furnace Lining structure.

2, Furnace Lining adopts Full-Fiber High Pressure module heat preservation, partial Small Equipment is lightweight Energy Saving microbead refractory Insulating Brick masonry, gaps are filled with expanded thermal insulation powder.

3. Resistance Strip and Resistance Wire are made of 0Cr25Al5 high-resistance alloy material and installed around Furnace Chamber .

4. Furnace Chamber contains Stainless Steel installed Material Basket .

5. Furnace Lid inner surface is made of Stainless Steel board, and it is equipped with High Pressure Ceramic Fiber insulation layer.

6. The standard Furnace Lid adopts electric speed changer Liter for lowering, Small Equipment adopts manual lever Liter for lowering.

7. Equipment is equipped with Touch Screen Precision Automatic temperature control cabinet at factory delivery, Thermocouple .

8. In order to uniformly heat the workpiece, a Hot Air Circulation fan made of heat-resistant Stainless Steel shaft and wind blades is installed on Furnace Lid . During the heating process of the workpiece, hot air circulates up and down High Speed in the Aluminum Alloy aging furnace to ensure uniform heating of the workpiece.

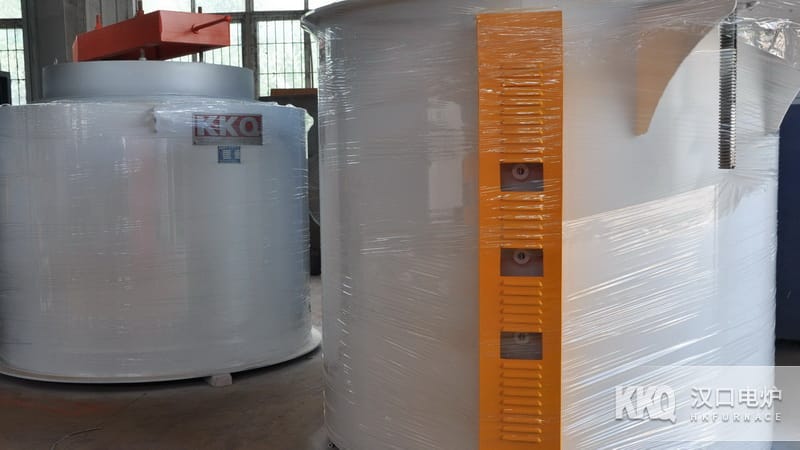

Pit Type Aluminum Alloy Aging Furnace Factory

Safety System

To ensure operation Safe , a limit switch is installed near the Liter lowering mechanism. This switch is interlocked with the power supply of the Aluminum Alloy aging furnace control cabinet. When Furnace Lid is closed (during operation), the power is connected. When Furnace Lid is opened, the limit switch cuts off the control power supply. Therefore, the power supply of Heating Element is cut off at the same time, to ensure Safe operation.
