Power: 200KW
Max Temperature: 650℃
Working Temperature: 150-650℃(Adjustable 0-650℃)
Loading Capacity: 2000Kg
Aviation and aerospace Day Precision manufacturing industry
Contact Us: +86 13807177084 / hkfurnace@hotmail.com
This series Aluminum Alloy Quenching Furnace is a type of High Precision semi-continuous Industrial Furnace applied in aviation and aerospace Day , automotive and other industries, Aluminum Alloy industry is mainly used for large Medium , large Strength Aluminum Alloy die forgings, and Large aviation and aerospace Day Aluminum Alloy components Quenching treatment, enabling workpieces to obtain higher mechanical Strength and excellent physical properties.
Since Quenching requires rapid cooling during the process to achieve the required metallographic structure transformation, the vertical Aluminum Alloy Quenching Furnace is designed with a workpiece transfer mechanism that can complete transfer within a short time. The transfer time is usually within 5 to 10 Second , which can effectively reduce Heat Treatment Distortion and guarantee the Quenching effect.

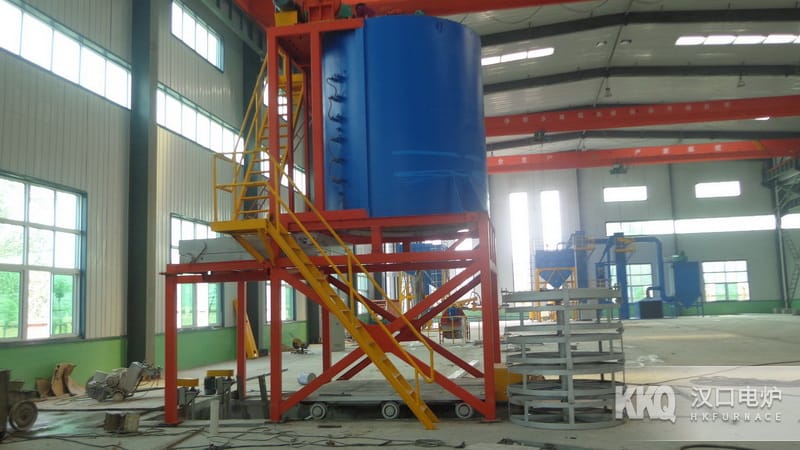

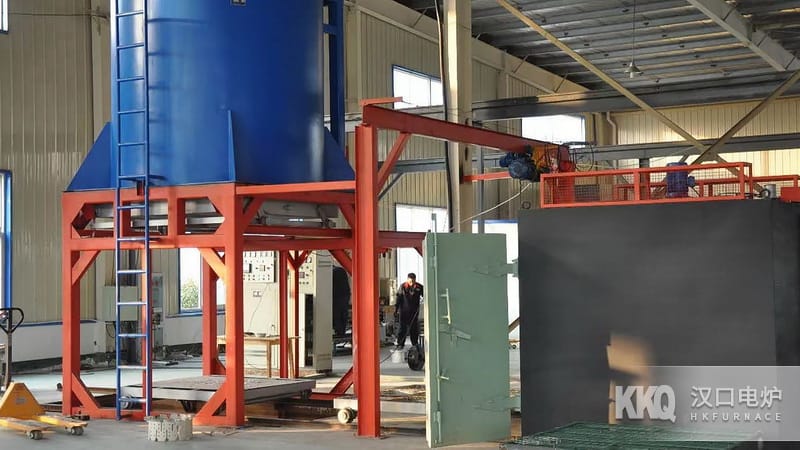

Vertical Aluminum Alloy Quenching Furnace is composed of steel structure furnace body, furnace body support, Electric Heating Element , Circulation Fan , air deflector, Furnace Bottom split-type Furnace Door , variable speed Liter reduction mechanism, material rack, Quenching Tank, loading Bogie , microcomputer program full Automatic temperature control cabinet and other components.

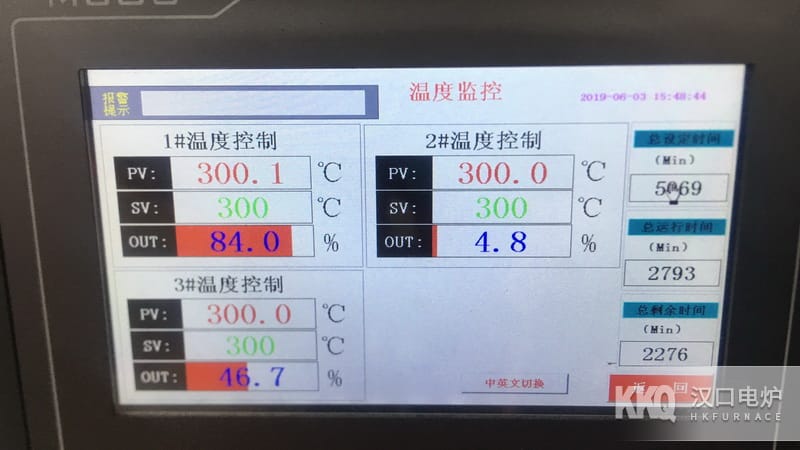

The Quenching temperature of Aluminum Alloy Quenching Furnace is a key parameter for Large Aluminum Alloy workpiece heat treatment. Therefore, the High Precision and high uniformity of Temperature Control System are the design core of Aluminum Alloy Quenching Furnace , ensuring the Quenching process, so that Aluminum Alloy Quenching workpieces can obtain good quality after Quenching .
We will contact you as soon as possible. Chief Engineer Contact:
+86 13807177084(Wechat) / hkfurnace@hotmail.com
* vertical Aluminum Alloy Quenching Furnace of various specifications and dimensions for users.
It gathers on-site Aluminum Alloy Heat Treatment Furnace from all over the country including Hubei, Hunan, Shandong, Shanxi, Henan, Hebei, Guangdong, Guangxi, etc., as well as cases Equipment from countries around the world including the United States, Germany, Japan, South Korea, Singapore, Malaysia, Indonesia and other countries for export.
