Power: 27-225KW
Max Temperature: 300℃
Working Temperature: 250℃ (0-300℃ adjustable)
Loading Capacity: 400-9000Kg
For Aluminum Alloy die castings and industrial aluminum profiles
Contact Us: +86 13807177084 / hkfurnace@hotmail.com

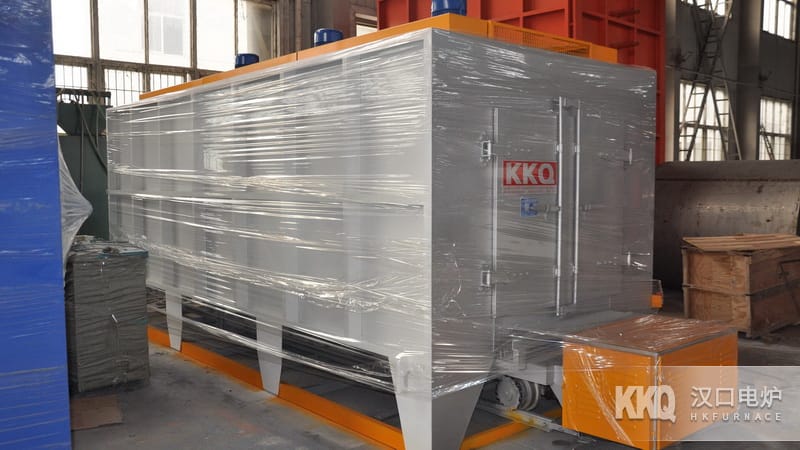

The ZRT3 series Bogie Type Aluminum Alloy aging furnace is a Industrial Furnace series matched with Bogie Type Aluminum Alloy Quenching Furnace , mainly used in Aluminum Alloy industry, Aluminum Alloy castings, Aluminum Alloy die castings, and industrial Aluminum Alloy profiles Aging Treatment .

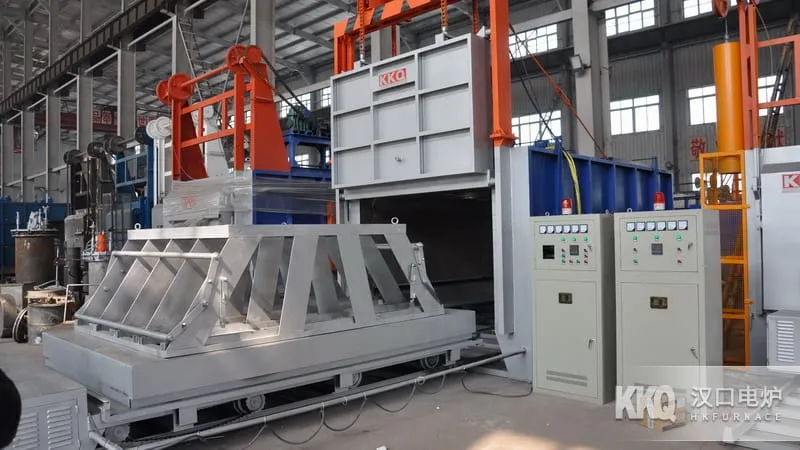

1. This series Bogie Type Aluminum Alloy aging furnace is synchronized with the new technology Industrial Furnace structure, applies high uniform temperature technology and a new furnace type, with electric control Automatic Bogie Tooling , and is convenient for loading and unloading materials.
2. Furnace Chamber adopts aluminum silicate Zirconia Fiber insulation layer.
3. The hot air internal circulation system in the furnace adopts the dual-air-channel high uniform temperature technology, and there are fundamental technical breakthroughs in wind pressure, flow rate, positive and negative pressure exchange compared with Aluminum Alloy the heat treatment industry.
4. All fans adopt hot air internal circulation High Pressure fans and Stainless Steel coaxial precision cast blades.
5. Users do not need foundation installation, they only need to place it on a flat cement floor before use.
6. Touch Screen microcomputer program Automatic temperature control, High Precision executes Aluminum Alloy aging process curve.
We will contact you as soon as possible. Chief Engineer Contact:
+86 13807177084(Wechat) / hkfurnace@hotmail.com

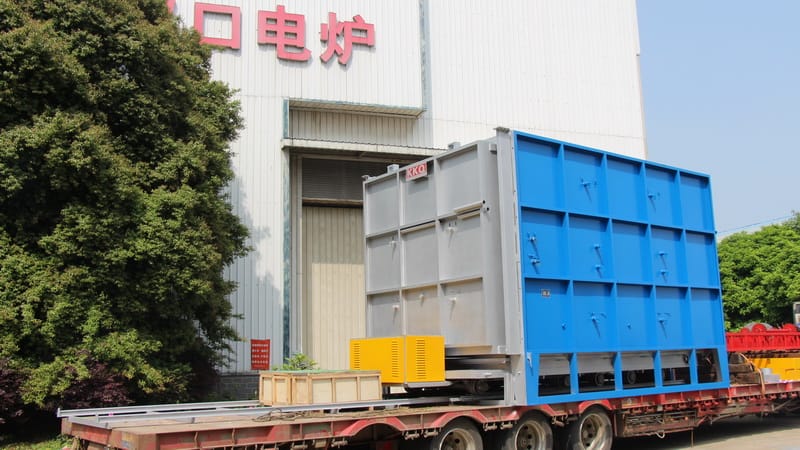

* Bogie Type Aluminum Alloy aging furnaces of different sizes and different specifications for users.
It collects on-site cases of bogie furnaces across the country
