Application and Features

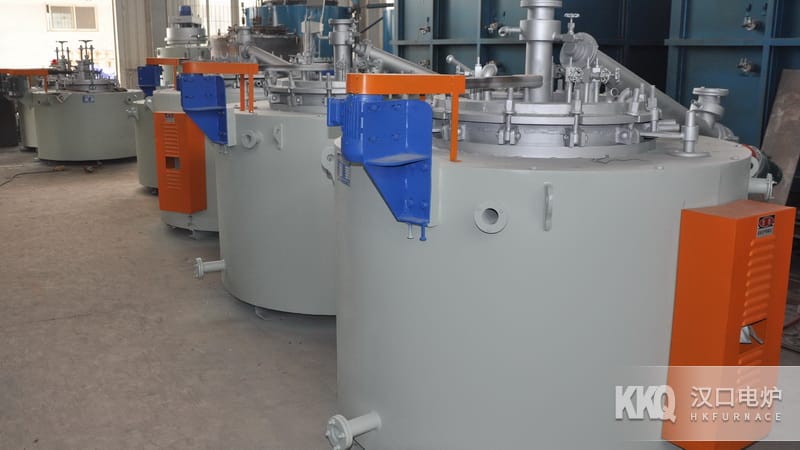

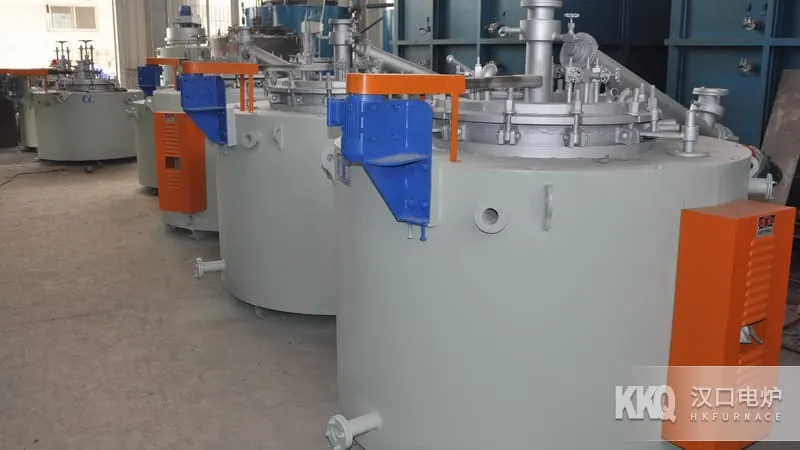

Magnesium Alloy Melting Furnace Production Line consists of Magnesium Alloy Melting Furnace , Magnesium Alloy holding furnace, Magnesium Alloy material washing furnace, step-type mixer and other equipment to form a complete set of Magnesium Alloy Equipment solutions.
Since combustion and explosion will occur during Magnesium Alloy melting, heat preservation, heat treatment and other production processes, general Aluminum Alloy Melting Furnace and Aluminum Alloy Heat Treatment Furnace cannot be used, special Magnesium Alloy Melting Furnace systems must be used, with composite crucibles, sealed gas protection, solid melting furnaces, aging furnaces, and Annealing Furnace all have special low-radiation elements and gas protection and other fire and explosion prevention functions!
Equipment Stable Operation , simple operation and maintenance, low use cost, and it also has an electromagnetic stirring function, which can make the alloy liquid composition uniform and refine grains, and improve product performance.
* various Furnace Chamber Size for users, Magnesium Alloy Melting Furnace Production Line with different melting capacities.
Magnesium Alloy Melting Furnace Technical Parameters
GRM-60-9
Rated Power60
Rated Voltage380
Max Temperature950
Working Temperature640-870
Phases3
Chamber Size (Length)500
Width600
Connection MethodY
No-load Heating Time2.5
Melting Capacity150
Weight (Reference)1200
GRM-75-9
Rated Power75
Rated Voltage380
Max Temperature950
Working Temperature640-870
Phases3
Chamber Size (Length)700
Width1000
Connection MethodY
No-load Heating Time2.5
Melting Capacity500
Weight (Reference)1800
GRM-105-9
Rated Power105
Rated Voltage380
Max Temperature950
Working Temperature640-870
Phases3
Chamber Size (Length)800
Width1500
Connection MethodY
No-load Heating Time2.5
Melting Capacity1000
Weight (Reference)2500
GRM-150-9
Rated Power150
Rated Voltage380
Max Temperature950
Working Temperature640-870
Phases3
Chamber Size (Length)900
Width1500
Connection MethodY
No-load Heating Time2.5
Melting Capacity1500
Weight (Reference)3600
GRM-180-9
Rated Power180
Rated Voltage380
Max Temperature950
Working Temperature640-870
Phases3
Chamber Size (Length)900
Width2000
Connection MethodY
No-load Heating Time3
Melting Capacity2000
Weight (Reference)4000
GRM-220-9
Rated Power220
Rated Voltage380
Max Temperature950
Working Temperature640-870
Phases3
Chamber Size (Length)1200
Width1800
Connection MethodY
No-load Heating Time3.5
Melting Capacity3000
Weight (Reference)5000
Magnesium Alloy Technical Parameters of Holding Furnace
GRM-60-9
Rated Power60
Rated Voltage380
Max Temperature950
Working Temperature950
Phases3
Chamber Size (Length)500
Width600
Connection MethodY
No-load Heating Time2.5
Holding Capacity150
Weight (Reference)1200
GRM-75-9
Rated Power75
Rated Voltage380
Max Temperature950
Working Temperature950
Phases3
Chamber Size (Length)700
Width1000
Connection MethodY
No-load Heating Time2.5
Holding Capacity500
Weight (Reference)1800
GRM-105-9
Rated Power105
Rated Voltage380
Max Temperature950
Working Temperature950
Phases3
Chamber Size (Length)800
Width1500
Connection MethodY
No-load Heating Time2.5
Holding Capacity1000
Weight (Reference)2500
GRM-150-9
Rated Power150
Rated Voltage380
Max Temperature950
Working Temperature950
Phases3
Chamber Size (Length)900
Width1500
Connection MethodY
No-load Heating Time2.5
Holding Capacity1500
Weight (Reference)3600
GRM-180-9
Rated Power180
Rated Voltage380
Max Temperature950
Working Temperature950
Phases3
Chamber Size (Length)900
Width2000
Connection MethodY
No-load Heating Time3
Holding Capacity2000
Weight (Reference)4000
GRM-220-9
Rated Power220
Rated Voltage380
Max Temperature950
Working Temperature950
Phases3
Chamber Size (Length)1200
Width1800
Connection MethodY
No-load Heating Time3.5
Holding Capacity3000
Weight (Reference)5000
Magnesium Alloy Technical Parameters of Material Washing Furnace
GRM-105-8
Rated Power105
Rated Voltage380
Max Temperature850
Working Temperature750-850
Phases3
Chamber Size Diameter800
Depth1500
Connection MethodY
No-load Heating Time2.5
Loading Capacity650
Reference Weight2200
* Magnesium Alloy Melting Furnace of various specifications and sizes for users, holding furnaces, material washing furnaces.
