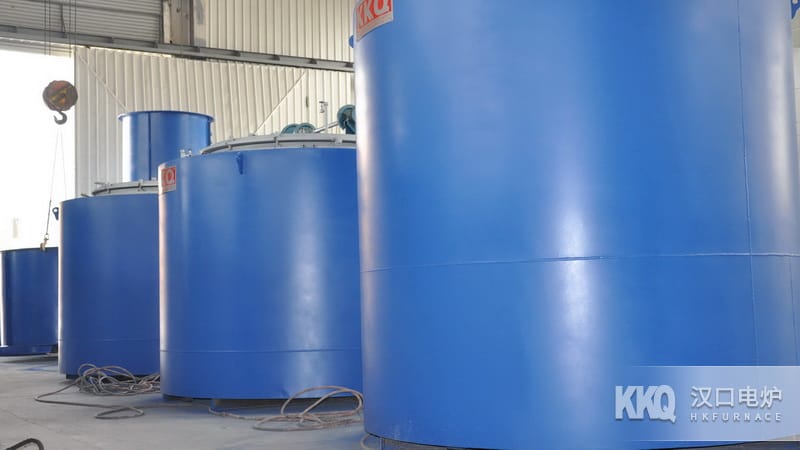

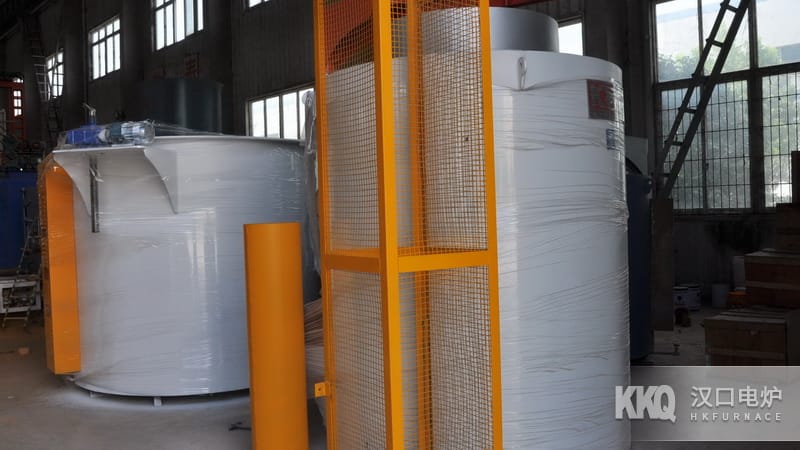

Full-fiber Pit Furnace

Application and Features

1. Full-fiber Pit Furnace is Energy Saving type periodic operation Industrial Furnace , insulated by high-purity ceramic Full-Fiber , the material of Full-Fiber has high standard requirements, the thermal insulation fiber High Pressure module is made by professional technology, and it is more Energy Saving power saving.

2. Full-fiber Pit Furnace can be used for high and medium Low Temperature , working temperature 450-750℃ Low Temperature , 650-950℃ medium temperature, 850-1200℃ High Temperature .

3. It can be used for annealing, Quenching , Tempering and aging heat treatment of metal materials such as Alloy Steel , high chromium steel, high manganese steel and mechanical parts.

Structure Introduction

1, The outer shell of the Full-fiber Pit Furnace has a similar structure to ordinary Pit Furnace , and the Furnace Lining heat insulation is insulated by high-purity Ceramic Fiber High Pressure modules.

2. The heating element uses the widened type 0Cr27Al7Mo2 Resistance Strip , with a long-life design, high heat Thermal Efficiency output, good thermal insulation performance, and can Year sustain continuous production without breaking.

3. The Full-fiber Pit Furnace is equipped with High Precision process curve Automatic temperature control cabinet, and the upper and lower temperature zones are uniform and consistent.

4. The design power is optional from 35-2800KW.

5. Furnace Chamber Diameter φ300-3000mm, depth can reach 12 Meter .

Safety System

Pit Furnace Power-on heating and all mechanical actions are interlocked, Liter lowering mechanism is equipped with a limit switch, Furnace Lid power can be connected only when it is closed, Furnace Lid the limit switch immediately cuts off the control power when it is opened, to ensure Safe operation.
