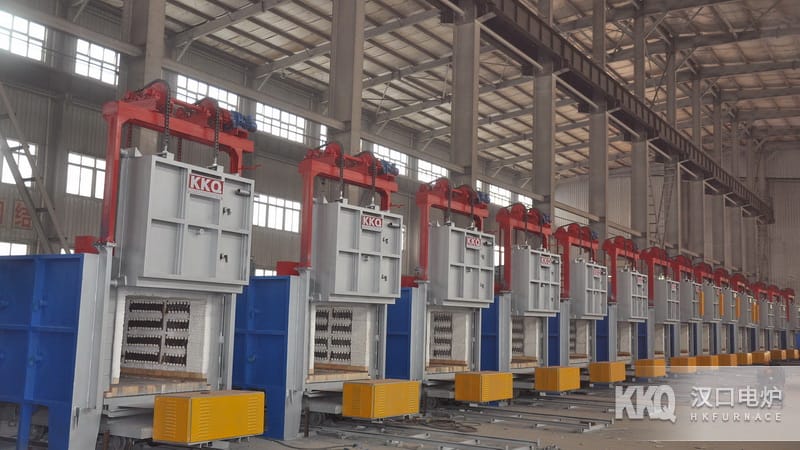

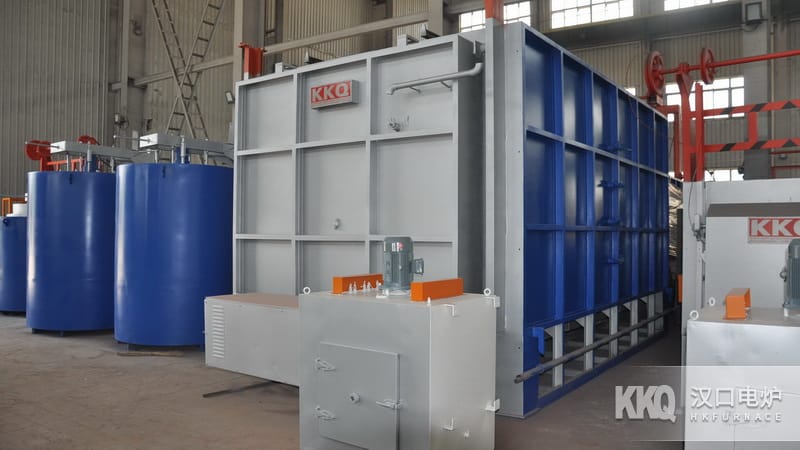

Full Fiber Bogie Furnace

Equipment Application

Full Fiber Bogie Furnace adopts high-standard high-purity Ceramic Fiber High Pressure module Full-Fiber Furnace Lining structure, the heat preservation effect is extremely significant, Liter temperature is fast, it is a Energy Saving type periodic operation Industrial Furnace , mainly used for Quenching , annealing, Tempering , aging of high chromium and high manganese steel castings, Ductile Iron parts, rollers, wear-resistant liner plates Quenching , auto parts and other various mechanical parts heat treatment.

Structure Introduction

Furnace body: Full Fiber Bogie Furnace outer shell is welded from steel plates and section steel, the bottom of the furnace body is connected with Bogie light rail as one, users do not need foundation installation, only need to place it on a flat cement floor before use.

Furnace Lining : Adopt full Ceramic Fiber wave folding method High Pressure for binding, use advanced manufacturing technology, achieve high thermal insulation performance and Energy Saving performance.

Bogie : Bogie Furnace opening uses heavy-duty impact-resistant bricks, Bogie surface layer uses heavy-duty high-aluminum pressure-resistant bricks.

Sealing mechanism: In addition to the labyrinth Refractory Material masonry between the furnace body and Bogie , a self-acting sand seal sealing mechanism is also used to reduce the heat radiation and convection loss of Bogie Furnace , and can improve the uniformity of furnace temperature.

Heating element: Full Fiber Bogie Furnace Heating Element is a ribbon heating element, hung on the furnace side with ceramic screws, and placed at the bottom in the Bogie masonry groove. Chromium-manganese-nitrogen Heat Resistant Steel Furnace Bottom plates are installed on Bogie .

Furnace Door : The Liter lowering of Furnace Door is realized through the upper and lower rolling of the rolling wheels on the guide rail. This not only ensures the fitting and sealing between the Furnace Door masonry and the furnace masonry when closing Furnace Door , but also ensures that the masonry will not be damaged by friction during the opening process.

Power mechanism: Bogie Furnace door and Bogie movement are both decelerated by the motor through the worm gear reducer, provided by chain drive, and equipped with an electromagnetic brake for appropriate adjustment.

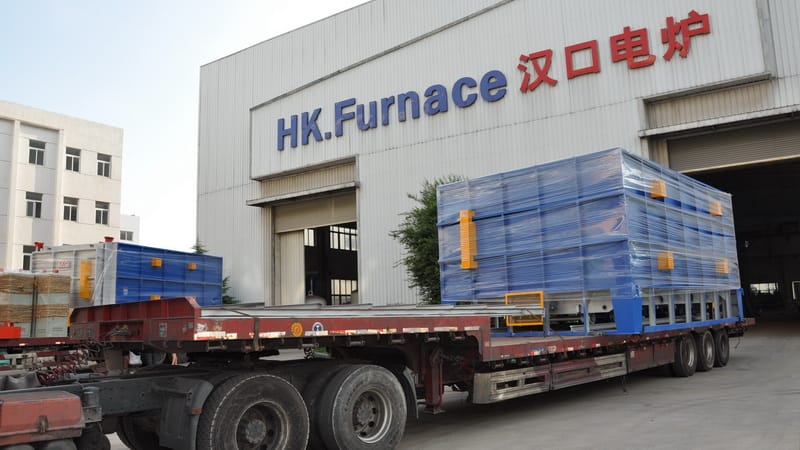

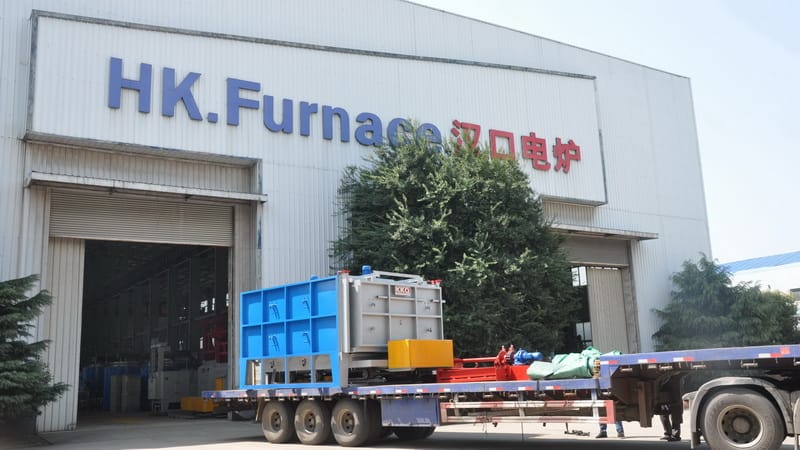

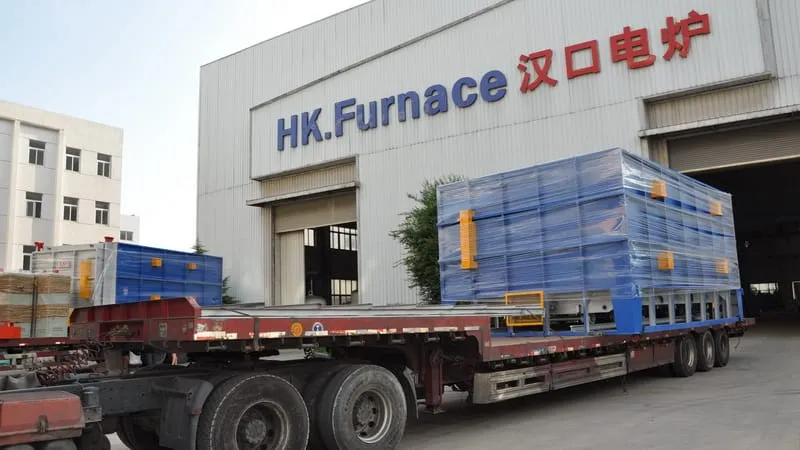

Full Fiber Bogie Furnace Production Manufacturer

Configuration Features

Full Fiber Bogie Furnace adopts multi-zone heating, which greatly improves furnace temperature uniformity, and if used for Low Temperature applications, Stainless Steel heating Circulation Fan can be installed at Furnace Roof , with hot air High Speed circulation, to achieve the purpose of temperature uniformity.

Our company's Full Fiber Bogie Furnace series of products cover high and medium Low Temperature , and achieve High Precision temperature control.
