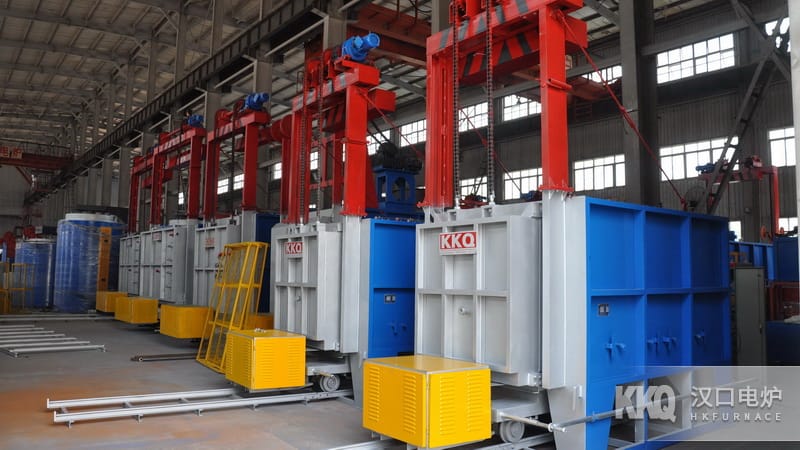

1200℃ High Temperature Bogie Furnace

RT4 series 1200℃ High Temperature Bogie Furnace is the core product of Hankou Furnace company, our factory is China's Large Bogie Furnace production base, This series Equipment is synchronized with international advanced Industrial Furnace technology, and has become an important product for our export International Market and participation in international competition. Our factory Bogie Furnace is produced by Production Line Batch Production , with reliable performance Stable , Energy Saving power saving, and no failure after long-term use.

Equipment Application

The RT4 series High-Temperature Bogie Furnace is mainly used for heat treatments such as Quenching , annealing, Normalizing of high-chromium and high-manganese steel castings, auto parts, metal structural parts, Carbon Steel , welded parts, Alloy Steel parts, and can also be used for drill bit sintering, catalyst roasting, Precision mold shell roasting and other purposes.

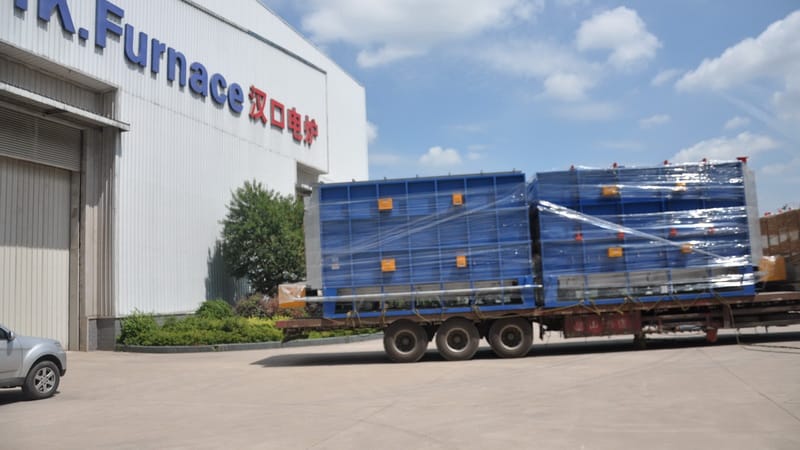

1200℃ High Temperature Bogie Furnace Production Manufacturer

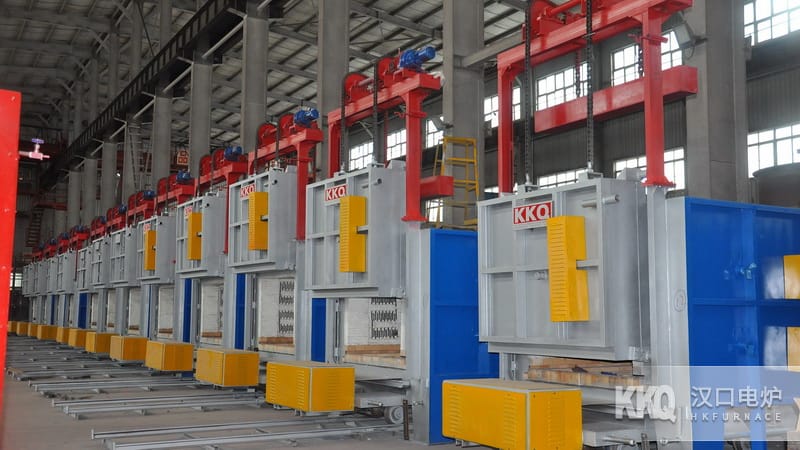

Structure Introduction

Furnace body: Adopts export-type Bogie Furnace structure, the outer shell is welded and formed by steel plates and section steel, Bogie rail adopts integrated continuous rail structure, just fix Bogie rail with anchor bolts, it is stable Durable , ensures long-term trouble-free use of Bogie Furnace .

Furnace Lining : Furnace Chamber adopts the high-specification full high-purity Ceramic Fiber High Pressure module in the heat treatment industry, the Full-Fiber module is built by professional High Pressure method, and special anchoring is used, which ensures the high sealing performance in the manufacturing of Bogie Furnace Furnace Lining , and is a high Energy Saving Furnace Lining . 24 Hour long-term use with zero damage and no deformation, has high thermal insulation, high adiabatic performance, low heat capacity, and reduces power consumption.

Loading Bogie : Bogie adopts a heavy-duty structure, the sealing groove is a Automatic lifting Liter type sand sealing mechanism to reduce the heat loss of Bogie Furnace , Bogie is driven by a high-power power system. Bogie is equipped with chromium-manganese-nitrogen Heat Resistant Steel Furnace Bottom plates or 1200℃ silicon carbide Furnace Bottom plates to carry workpieces.

Furnace Door : Adopt electric Liter descending double guide rail Automatic sealing Furnace Door , Full-Fiber insulation structure plus sealing ring will not damage the masonry.

Heating Element : Heating Element The material is 0Cr27Al7Mo2 Superalloy Resistance Strip , reasonably arranged on five sides inside the furnace according to uniform temperature design, so that High-Temperature Bogie Furnace temperature uniformity reaches ±5-8℃. When used in applications such as aerospace Day nuclear energy and other fields, through the heating element specially designed and manufactured by our factory, combined with High Precision temperature control system, the furnace temperature uniformity reaches ±3-5℃.

Temperature Control

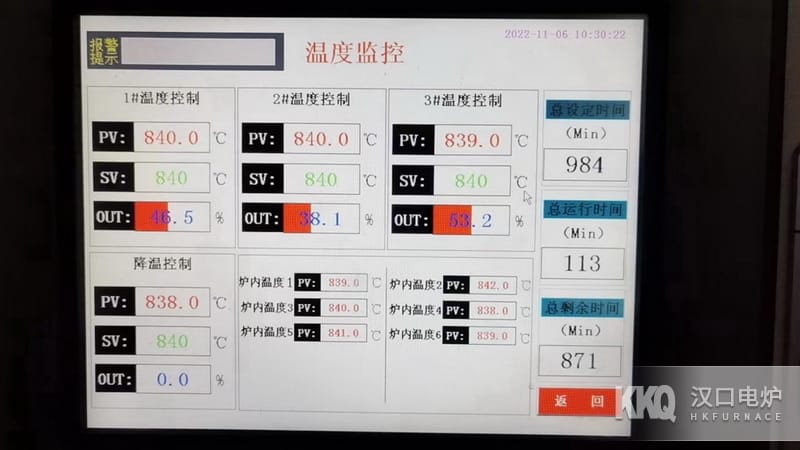

Equipment Developed with Hankou Furnace independent technology, Touch Screen microcomputer program Automatic temperature control can greatly save electric energy, and enable the ideal heat treatment process curve to achieve High Precision execution in practical applications, with a temperature control accuracy of ±1℃.
