Forklift Type Rapid Quenching Furnace

Equipment Application

Forklift type Rapid Quenching Furnace is an advanced Equipment specially designed for High Efficiency and rapid heat treatment processes, widely used in the fields of rapid Quenching and Solution Treatment of metal workpieces such as Aluminum Alloy , steel and other materials, and it demonstrates excellent performance especially in aerospace Day , automobile manufacturing, scientific research institutions, colleges and universities, and heavy industry. This Equipment , with its unique design and High Efficiency performance characteristics, plays an important role in improving Liter Production Efficiency and product quality.

Structure Introduction

This furnace type is mainly composed of the following core components: furnace body, furnace body Liter descending system, furnace platform, Material Tray , mobile forklift ( Forklift ), Quenching pool and Precision electrical control system and temperature Automatic control system.

Furnace body:The furnace body structure and outer shell are welded from steel plates and section steel, and made of high-quality heat-resistant materials Box Type structure, ensuring good thermal insulation performance and long service life.

Furnace Lining : Adopts Energy Saving complete Ceramic Fiber High Pressure modular structure , the bottom is equipped with impact-resistant and pressure-resistant heavy-duty Refractory Material that facilitates loading and unloading of workpieces and entry and exit of Forklift .

Forklift :Mobile Forklift has a delicate design, can quickly transfer the heated workpiece to Quenching Medium under High Temperature environment, achieve rapid cooling, and obtain the ideal metallographic structure and mechanical properties.

Heating Element: Heating Element The material is OCr25Al5 Resistance Strip , with excellent material quality, no deformation and no cracking after long-term use.

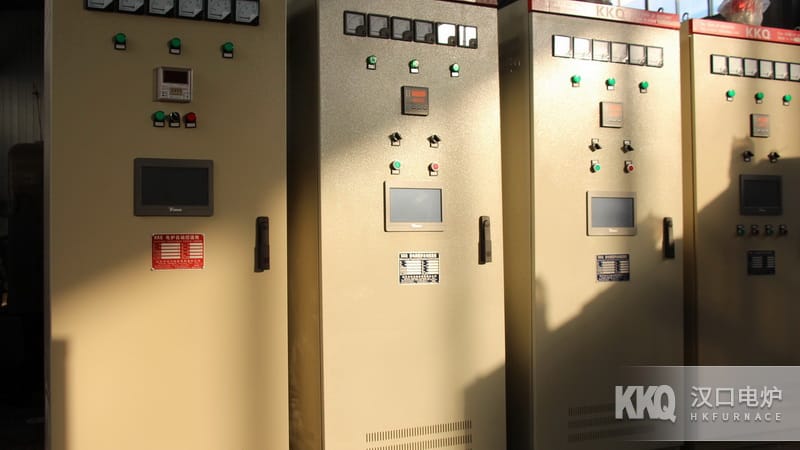

Temperature Control System:Developed using Hankou Furnace company's own technology, Touch Screen microcomputer program Automatic temperature control cabinet, High Precision fully Automatic executes heat treatment process curves, temperature control accuracy is ±1℃.

Work Process

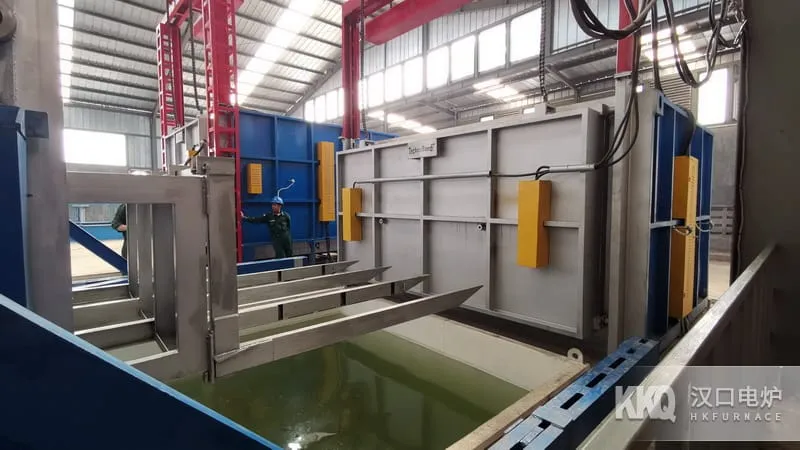

The operation process is simple High Efficiency . First, place the workpiece to be processed on Material Tray , send it through Forklift into the furnace body preheated to the set temperature for heating treatment. Once the required temperature is reached, Furnace Door opens, the supporting loading and unloading trolley quickly moves the workpiece out of the furnace body, and immediately puts it into Quenching Medium (water or oil) to complete the Quenching process. This series of actions are seamlessly connected, greatly shortening the heat treatment cycle, effectively controlling workpiece deformation, and ensuring the consistency and repeatability of heat treatment quality.

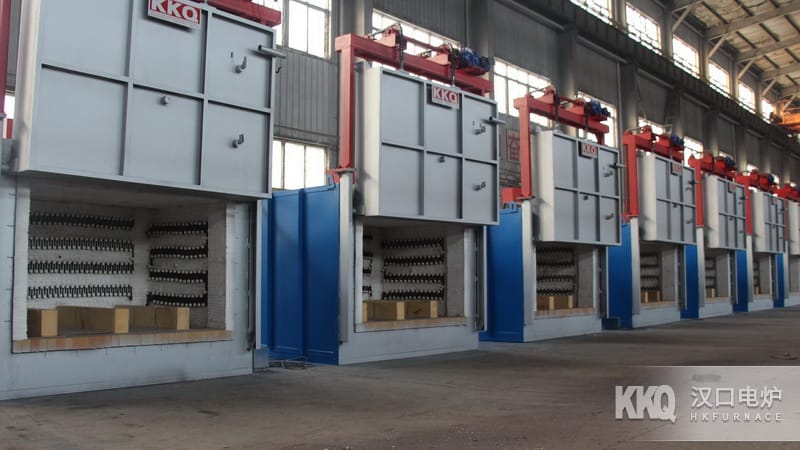

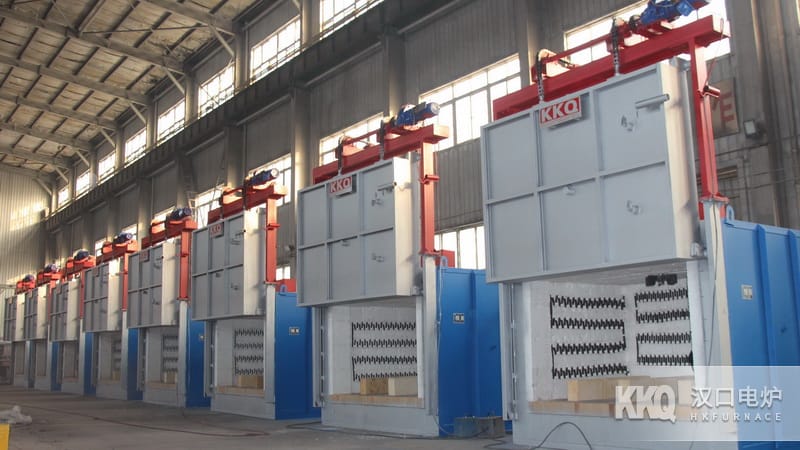

Forklift Type Rapid Quenching Furnace Production Site

Design flexibility

Forklift type Rapid Quenching Furnace has a major feature of high Customization and flexibility. Manufacturing Manufacturer such as Hankou Furnace company etc., can design and produce multiple furnace types including square, rectangular, round, etc. according to users' specific needs, to meet the workpiece processing requirements of different dimensions and temperatures. Whether it is small-batch production with single furnace and single trolley, or Large Automation Production Line configuration with multiple furnaces and multiple trolleys, a suitable solution can always be found.

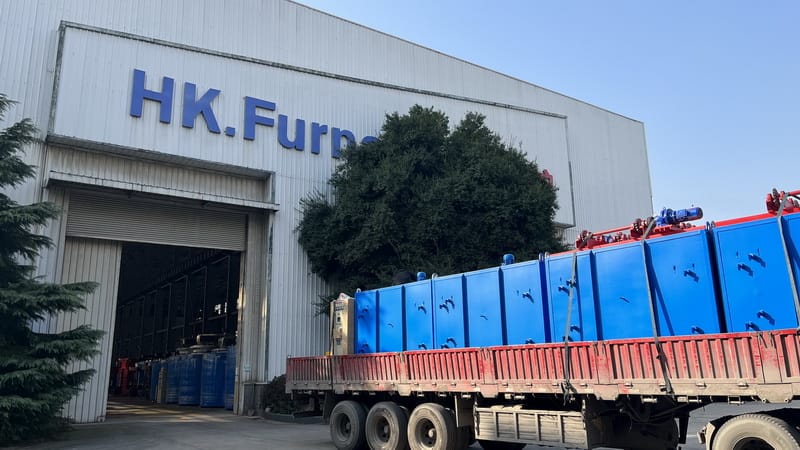

Forklift formula Quenching Furnace Manufacturer

Scope of Application

Equipment It is not only suitable for material research and testing in laboratory environments, but also fully capable for large-scale industrial production scenarios, such as parts heat treatment in the machinery manufacturing, casting and forging industries. Especially in aviation, aero Day and other fields that have strict requirements for heat treatment speed and quality, this Equipment has become an indispensable heat treatment tool.

Economic benefits

Due to its High Efficiency heat treatment capacity and low Energy Consumption , Forklift type Rapid Quenching Furnace while improving Production Efficiency , it also brings significant economic benefits to enterprises.

In summary, Forklift type Rapid Quenching Furnace , with its excellent performance, flexible design and wide range of applications, plays an important role in modern manufacturing, and continuously promotes the progress and development of heat treatment technology.

* Box Type Forklift Rapid Quenching Furnace of various specifications and sizes for users.
