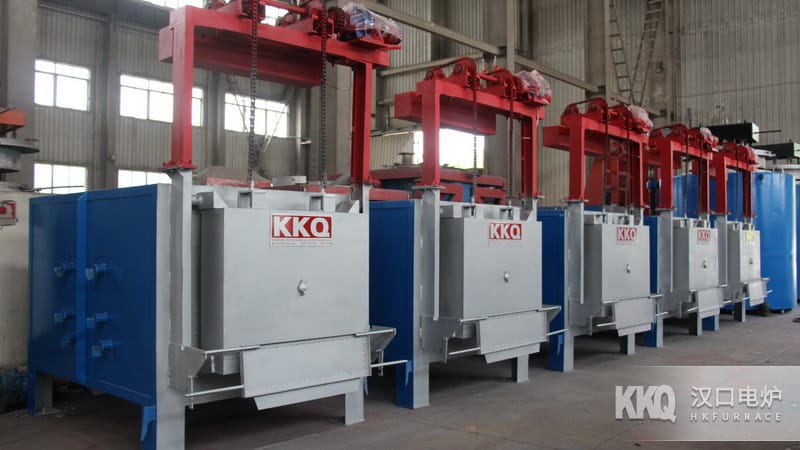

Box type Quenching Furnace

Equipment Application

Box type Quenching Furnace is a national standard Energy Saving type Quenching heat treatment purpose Industrial Furnace , mainly used for heat treatment of Alloy Steel products, various molds Quenching and so on.

Structure Introduction

1. Furnace body: The outer shell of the Box type Quenching Furnace is welded and manufactured from National Standard steel plates and section steel,

2. Furnace Lining : Adopt our company's Energy Saving emission reduction technology Ceramic Fiber High Pressure module, use High Pressure press special method to make Ceramic Fiber High Pressure modules assemble to form an overall Full-Fiber high-density Energy Saving Furnace Lining structure (fiber Furnace Lining production compression ratio ≥55-65%).

3. Electric Heating Element : Made of high-alloy product 0Cr27Al7Mo2, installed on both walls of Furnace Chamber and Furnace Bottom .

4. Furnace Door : Liter lowering is carried out by electric or hand - cranked sprocket chains, and Furnace Door has an open - circuit protection device that stops power supply and heating when it is opened.

5. Thermocouple : K grade Thermocouple , the temperature measuring hole is located at Furnace Roof ,

6. Temperature Control Cabinet: Touch Screen Microcomputer Temperature Control System to High Precision control Quenching process and overtemperature protection, to realize full Automatic process execution of Box type Quenching Furnace.
