Power: 270KW
Max Temperature: 1100℃
Working Temperature: 1050℃
Control Accuracy: ±1℃
Suitable for non-oxidation annealing of quartz glass tubes
Contact Us: +86 13807177084 / hkfurnace@hotmail.com
The Quartz Glass Annealing Furnace produced by our company has uniform temperature, Precision high precision, and is suitable for Precision annealing treatment of quartz glass tubes and other vessels and various Large quartz glass products. It can also be used for stress relief annealing heat treatment of quartz and glass materials.

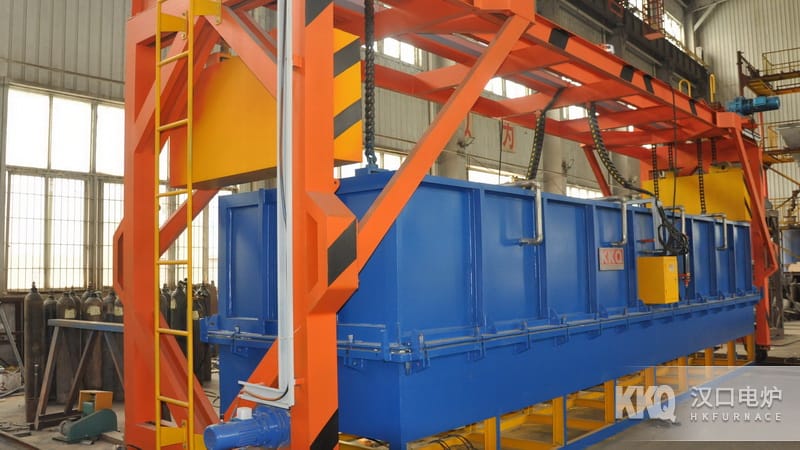

Quartz Glass Annealing Furnace consists of a rectangular heating furnace body, a fixed material table for loading quartz glass tubes, a furnace body lifting Liter mechanism driven by a cycloidal pinwheel brake motor, an overall backward moving track for the furnace body and a power system, and a microcomputer program Automatic temperature control cabinet.
Equipment The structure is designed with reference to German furnace type, the temperature inside the furnace is very uniform, with high precision, and it has the structure of Precision , which can realize multiple uses such as vacuum pumping and atmosphere protection, and realize less oxidation or non-oxidation heat treatment of quartz glass products and their metal parts.
The process is controlled by a microcomputer program Intelligent temperature controller, Full-Fiber integrated Furnace Chamber , long-term operating temperature is 1050℃, temperature control accuracy is ±1℃.
We will contact you as soon as possible. Chief Engineer Contact:
+86 13807177084(Wechat) / hkfurnace@hotmail.com
* Quartz Glass Annealing Furnace of different sizes and specifications for users.
