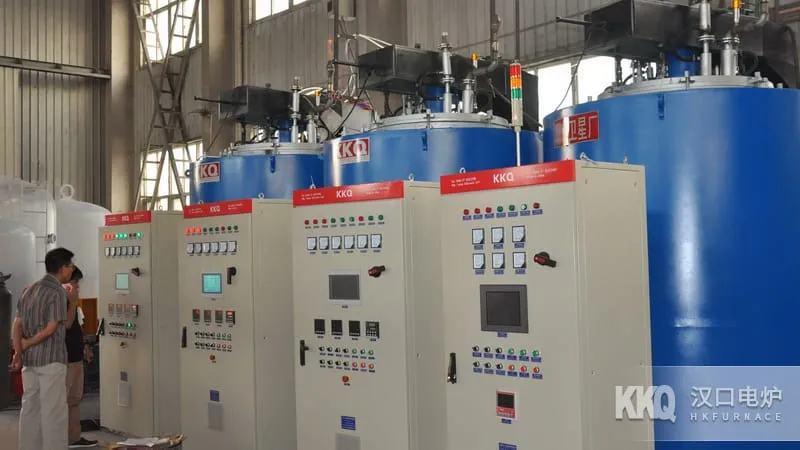

Carburizing Furnace is a periodic operation type Industrial Furnace , it is composed of Furnace Shell , Furnace Lining , Furnace Lid Liter lowering mechanism, Vacuum Seal fan, muffle tank and Heating Element and other components.
Furnace Shell is welded into a circular shape from steel plates and section steel, Full-Fiber High Pressure the Energy Saving type Furnace Lining structure masoned from insulation modules and other materials.

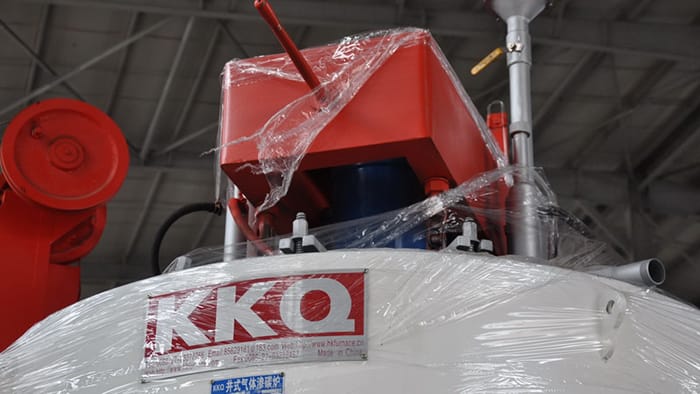

Superalloy Resistance Strip Heating element, Furnace Chamber built-in Stainless Steel muffle tank, Vacuum Seal fan High Pressure circulation stirring makes the atmosphere uniform.
Furnace Lid Assemble three-head Stainless Steel infuser, drip methanol, kerosene or other organic liquids into the furnace, the flow rate is adjustable.
It can be equipped with carbon controllers and Automatic control systems to achieve real-time Automatic control of Carburizing Furnace temperature, time, and carburizing atmosphere.
If you need to learn about relevant Equipment such as Nitriding Furnace , please click here to view.Nitriding Furnace Detailed introduction
It is used for Gas Carburizing heat treatment of various metal parts such as steel mechanical parts, crankshafts, gears and molds.

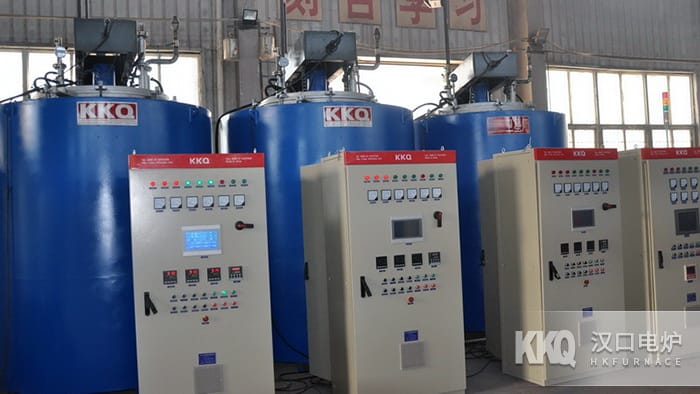

Furnace Chamber uses high-purity Ceramic Fiber High Pressure modules with high specifications in the heat treatment industry, High Pressure masonry, multiple anchoring, to ensure the high thermal insulation performance in the manufacturing of Furnace Lining .
Energy Saving Emission reduction technology, Full-Fiber structure, the in-furnace Liter temperature speed is fast. Low thermal conductivity, low heat capacity, excellent corrosion resistance.

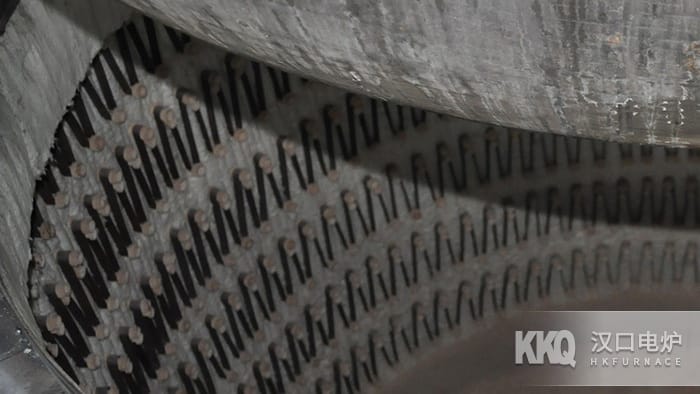

Heating Element is specially made Superalloy Resistance Strip , reasonably arranged on five surfaces inside the furnace according to the uniform temperature design.
Good Oxidation Resistance energy, High Temperature resistance, high load capacity. Super High Temperature will not crack even when heated, and requires no regular Year maintenance.
When applied in aviation Day Precision heat treatment and other applications, combined with High Precision temperature control system, the furnace temperature uniformity reaches ±3-5℃.

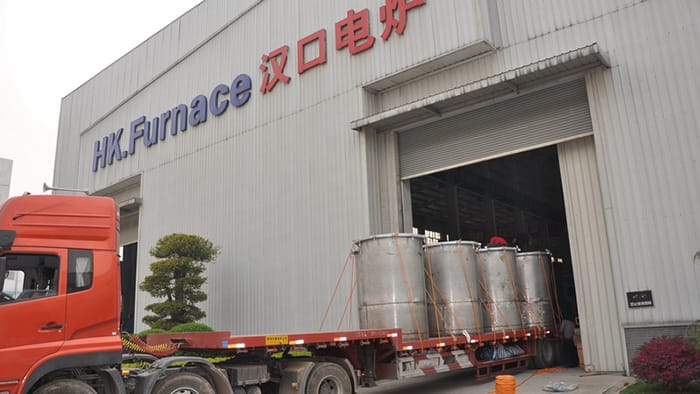

High Temperature Stainless Steel vacuum tank body, X-ray flaw detection, no air leakage.
Ensure Carburizing furnace pressure Stable throughout the entire process, no deformation after long-term use.
From Furnace Lid to the vacuum tank body, various interfaces such as exhaust and air intake are tightly sealed.
Design and customize special Vacuum Seal fan, with High Pressure hot air internal circulation inside the furnace.

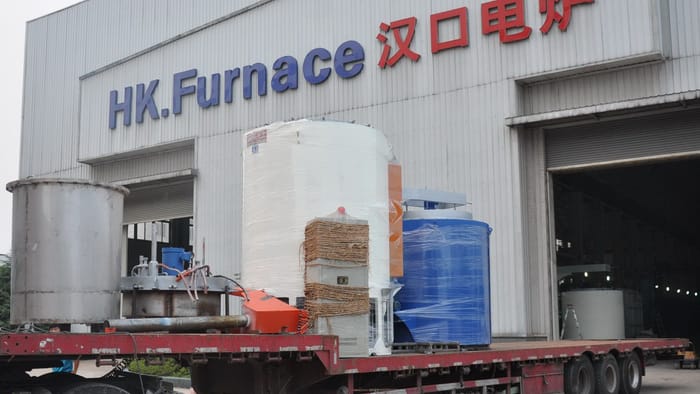

Thickened dual water cooling Vacuum Furnace cover, heat insulation Durable , easy to customize various auxiliary supporting facilities Equipment .
Add a water cooling jacket to the inlet and outlet pipes , so that the gas entering each pipe can be cooled quickly .

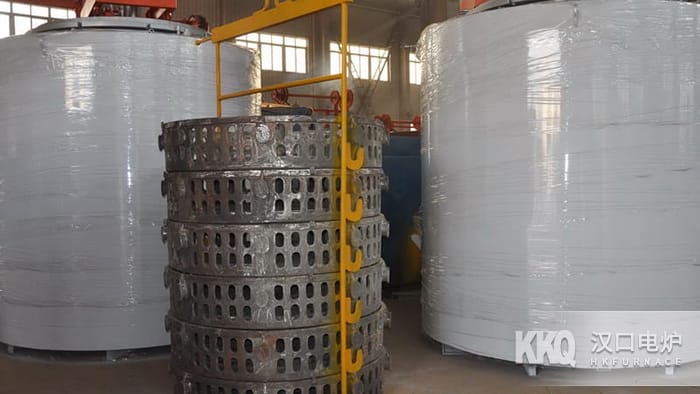

Design and manufacture all kinds of workpiece material frames, loading and unloading is fast and simple.
Material frames , Fixture , material cartridges and various Tooling are all available .

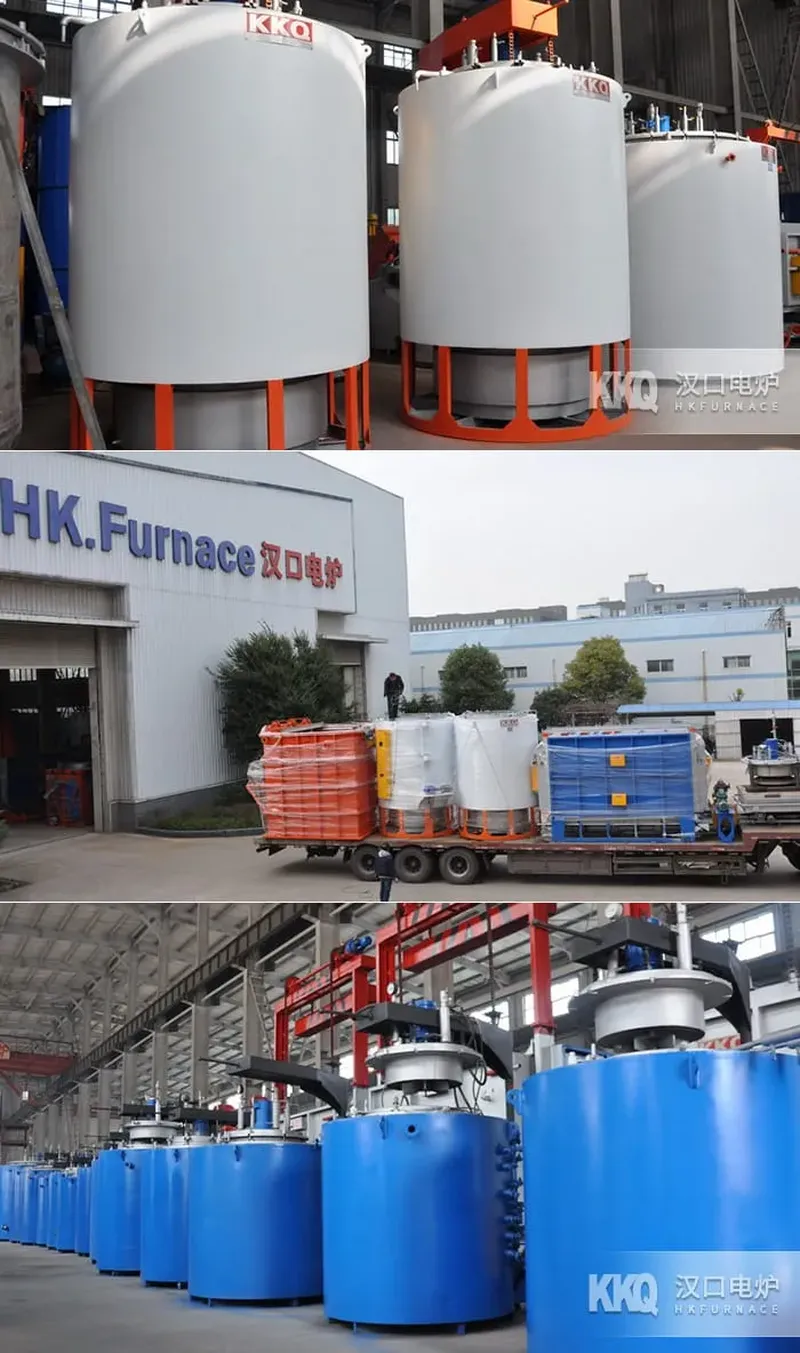

In addition to the commonly used Gas Carburizing Furnace , Carbonitriding Furnace , Hankou Furnace independently developed vacuum Low Temperature Carburizing Furnace .
In order to reduce workpiece deformation during High Temperature Carburizing , it can be reduced from the usual temperature above 900°C High Temperature to around 600°C to complete the Carburizing process.

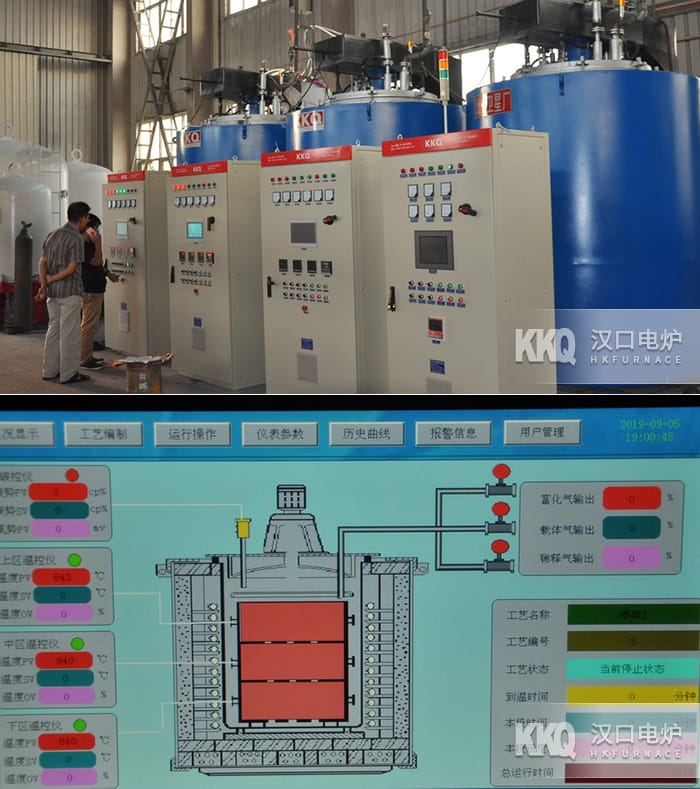

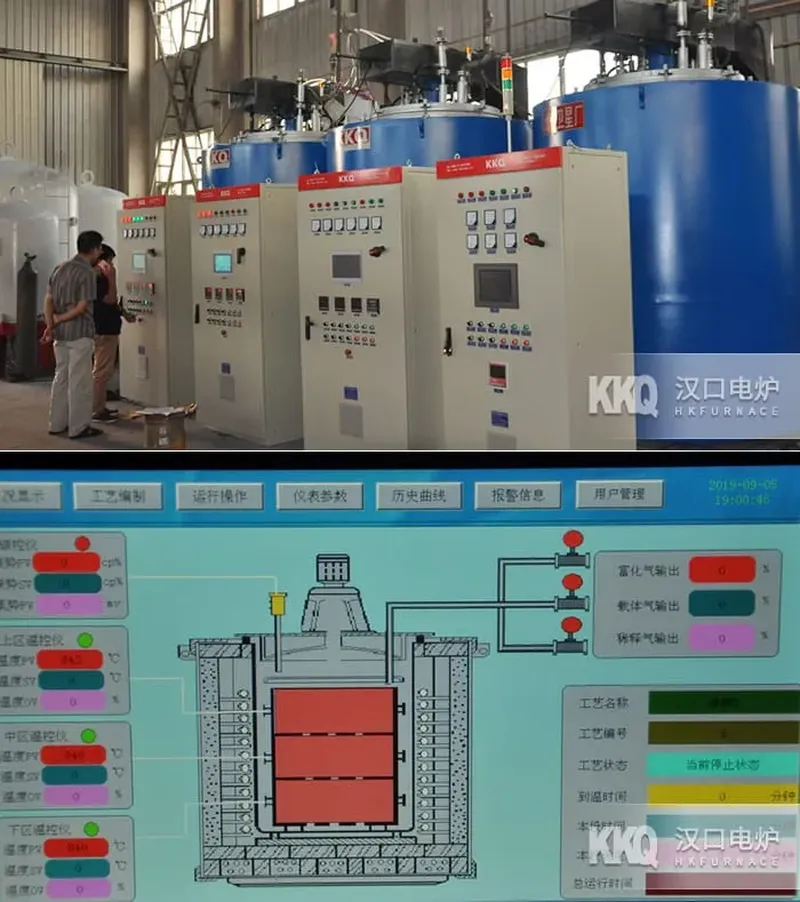

Hankou Furnace The temperature control system with graphical interface independently developed by the company, Touch Screen power regulation module, High Quality process curve control.
Automation Process control, enables the ideal Carburizing process curve to achieve High Precision implementation in practical applications, with a temperature control accuracy of ±1℃.
