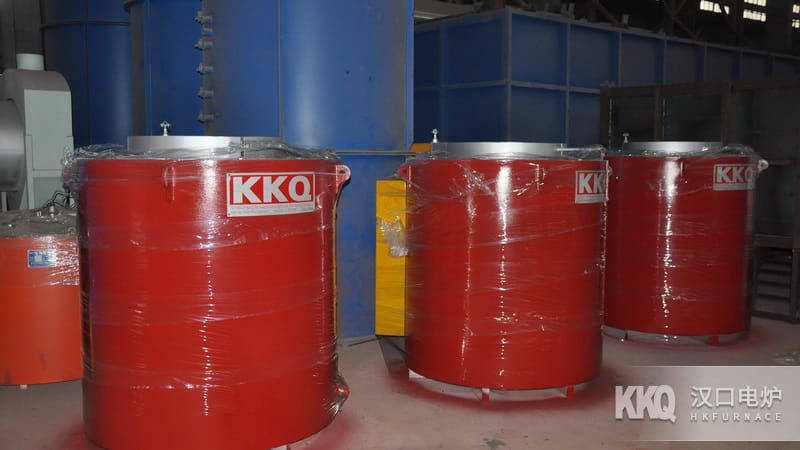

Crucible Liquid Nitriding Furnace

Crucible Liquid Nitriding Furnace

Power: 35-135KW

Working Temperature: 650℃(Adjustable 0-650℃)

Rated voltage: 380V

Empty furnace Liter temperature time: 2.5-3.5h

Matching Touch Screen microcomputer program Automatic

Contact Us: +86 13807177084 / hkfurnace@hotmail.com

Equipment Application

This series of Crucible Liquid Nitriding Furnace is mainly used for nitriding heat treatment of various mechanical parts, auto parts and piston rings in liquid.

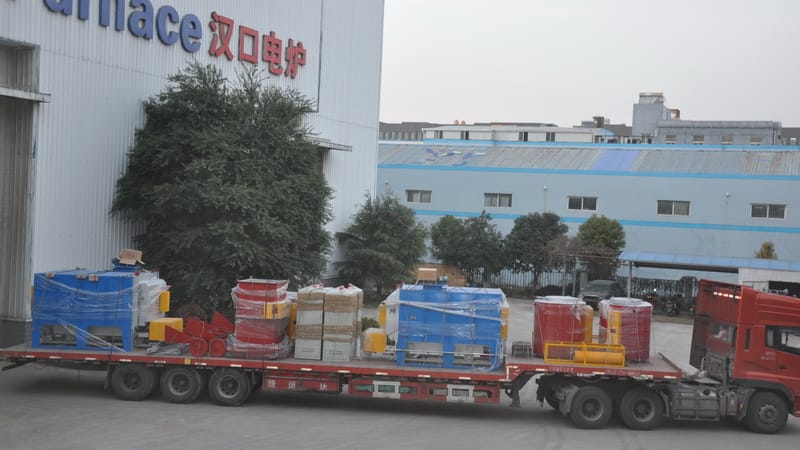

Crucible Liquid Nitriding Furnace Manufacturer

Online Message

We will contact you as soon as possible. Chief Engineer Contact:
+86 13807177084(Wechat) / hkfurnace@hotmail.com

Technical Parameters

RNG2-35-9
Rated Power35
Rated Voltage380
Rated Temperature650
Frequency50
Phases3
Crucible Size DiameterΦ460
Depth955
Connection MethodY
No-load Heating Time2.5
No-load power loss20
Dimensions DiameterΦ1040
Weight (Reference)650
RNG2-60-9
Rated Power60
Rated Voltage380
Rated Temperature650
Frequency50
Phases3
Crucible Size DiameterΦ700
Depth1550
Connection MethodY
No-load Heating Time2.5
No-load power loss30
Dimensions DiameterΦ1600
Weight (Reference)1000
RNG2-75-9
Rated Power75
Rated Voltage380
Rated Temperature650
Frequency50
Phases3
Crucible size DiameterΦ800
Depth1550
Connection MethodY
No-load Heating Time3
No-load power loss35
Dimensions DiameterΦ1600
Weight (Reference)1500
RNG2-105-9
Rated Power105
Rated Voltage380
Rated Temperature650
Frequency50
Phases3
Crucible Size DiameterΦ1000
Depth1750
Connection MethodY
No-load Heating Time3.5
No-load power loss45
Dimensions DiameterΦ1800
Weight (Reference)1800
RNG2-135-9
Rated Power135
Rated Voltage380
Rated Temperature650
Frequency50
Phases3
Crucible Size DiameterΦ1000
Depth1955
Connection MethodY
No-load Heating Time3.5
No-load power loss60
Dimensions DiameterΦ1800
Weight (Reference)2200

* Crucible Liquid Nitriding Furnace of various specifications and sizes for users.
