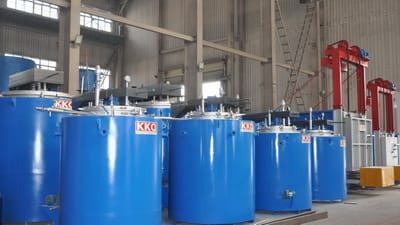

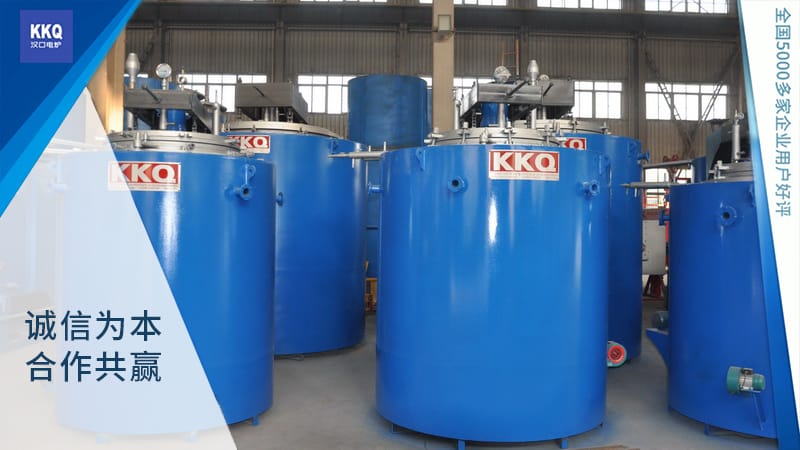

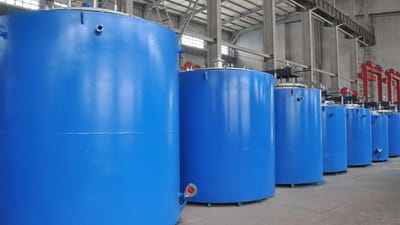

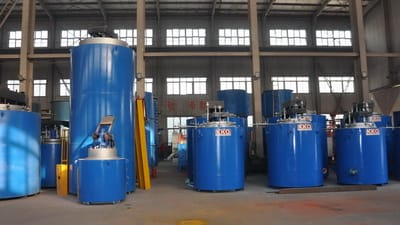

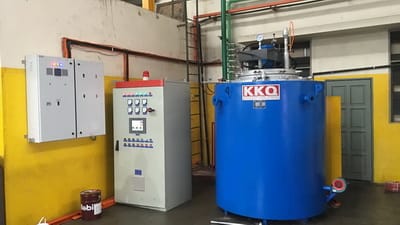

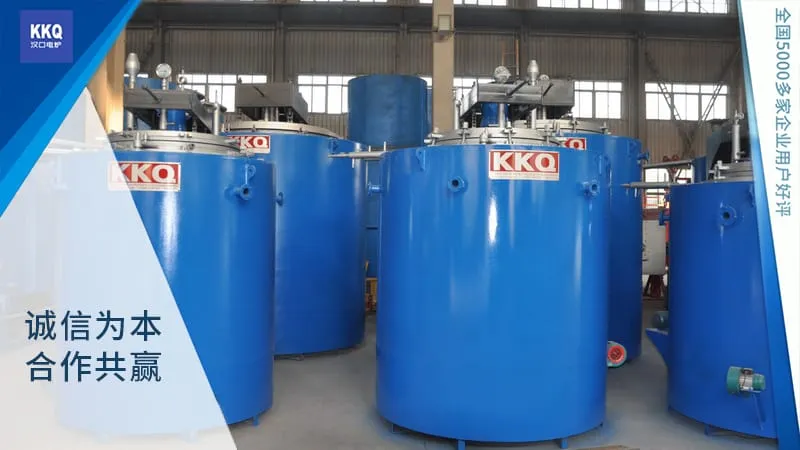

Nitriding Furnace is Energy Saving type periodic operation Industrial Furnace , the most widely used is Gas Nitriding Furnace , and it is mostly based on Pit Type structure.
The outer shell is welded from steel plates and section steel, and is made into a new type of thermal insulation Furnace Lining from Full-Fiber High Pressure modules.
Heating Element is Superalloy Resistance Strip , installed around Furnace Chamber , with a built-in Stainless Steel vacuum tank.
Furnace Lid The top is equipped with a sampling tube and an exhaust pipe, and the input pipe at the upper part of the furnace tank side wall can pass through ammonia gas, etc.
Equipped with High Pressure vacuum fan, comprehensively improve Gas Nitriding Furnace thermal insulation performance, furnace temperature uniformity, sealing performance, Nitriding speed.
If you need to learn about relevant Equipment such as Carburizing Furnace , please click here to view.Carburizing Furnace Detailed introduction
It is used for gas nitriding heat treatment of various steel mechanical parts, automobile crankshafts, gears, motorcycle brake pads, molds and other items.

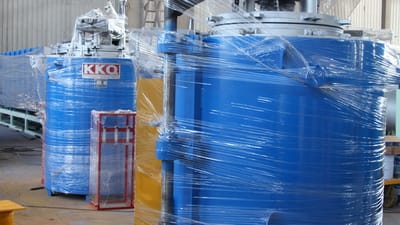

In the non-ferrous metal industry, it can be applied to bright oxidation-free thermal annealing of copper materials including copper pipes, copper plates, copper wires, copper rods and other copper materials under a protective atmosphere.

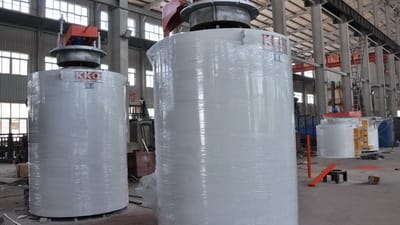

It can also be used for non-oxidizing Tempering heat treatment processes of thin-walled seamless steel pipes, long shafts, and various metal mechanical parts under vacuum nitrogen protection.

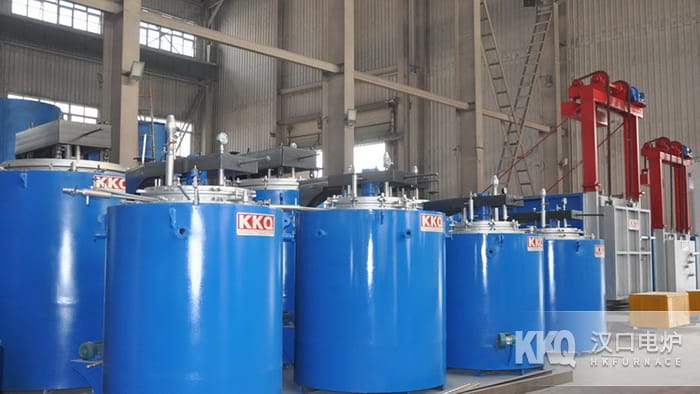

Furnace Chamber uses high-purity Ceramic Fiber High Pressure modules, High Pressure masonry, with multiple anchoring, to ensure the high thermal insulation performance in the manufacturing of Furnace Lining .
Energy Saving Emission reduction technology, Full-Fiber structure, the temperature inside the furnace Liter warms up quickly. Low thermal conductivity, low heat capacity, excellent corrosion resistance.

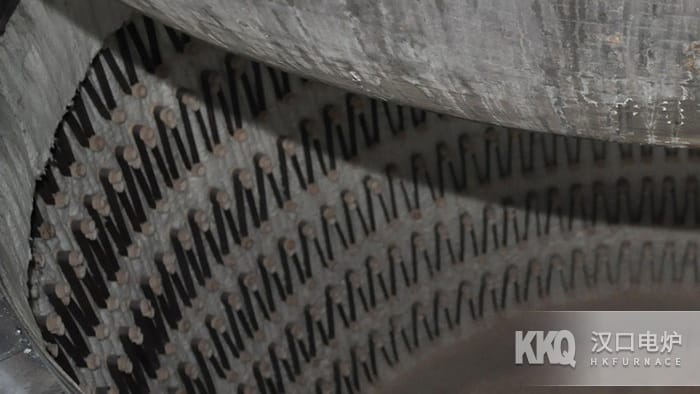

Heating Element is specially made Superalloy Resistance Strip , reasonably arranged on five sides inside the furnace according to the uniform temperature design.
Good Oxidation Resistance energy, High Temperature resistance, high load bearing. Ultra High Temperature no cracking under high heat, regular Year maintenance free.
When used in aviation Day Precision heat treatment and other applications, combined with High Precision temperature control system, the furnace temperature uniformity can reach ±3-5℃.

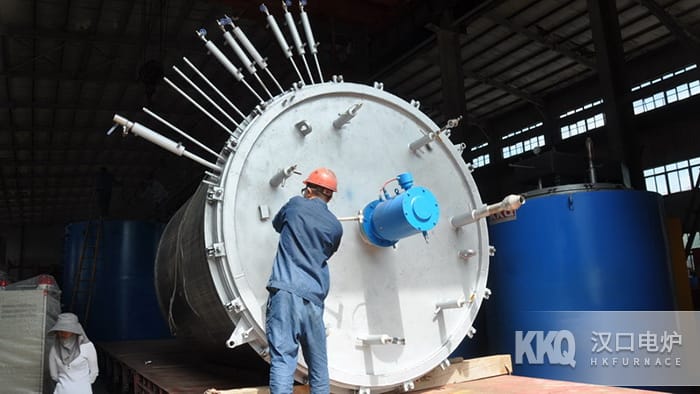

Imported SUS310S Corrosion-resistant High Temperature Stainless Steel vacuum tank body, X-ray flaw detection, no air leakage.
It can quickly evacuate to reach the specified negative pressure vacuum state, and maintain it for a long time during the nitriding process.

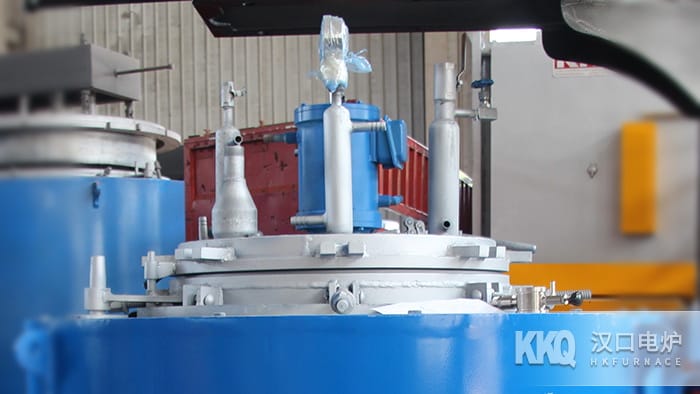

From Furnace Lid to the vacuum tank, various interfaces such as exhaust and intake are tightly sealed.
Design and customize a special-purpose High Pressure vacuum blower, with powerful internal hot air circulation.
Thickened double water cooling Vacuum Furnace cover, heat preservation Durable , easy to customize various auxiliary supporting facilities Equipment .

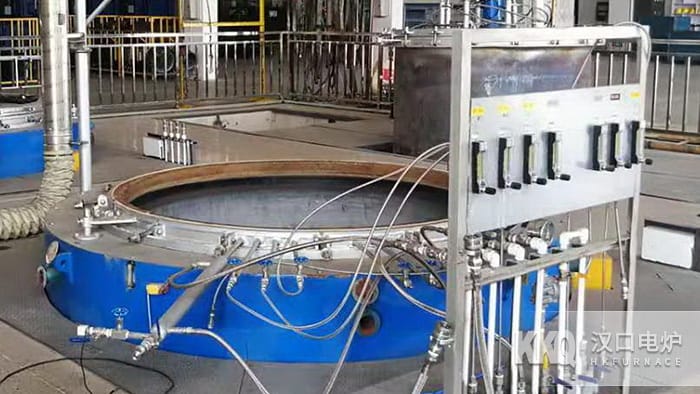

It is equipped with a standard ammonia gas inlet interface, and can also install a variety of inlet and outlet atmosphere systems according to user needs.

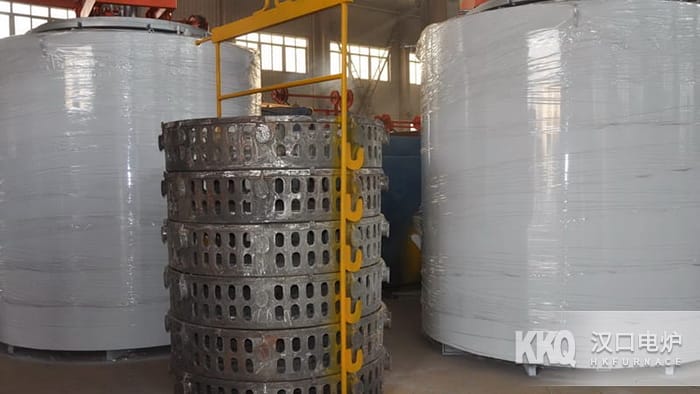

Design and manufacture all kinds of work piece material frames, loading and unloading is fast and simple.
Material frames, Fixture , material cartridges and other Tooling are all available.

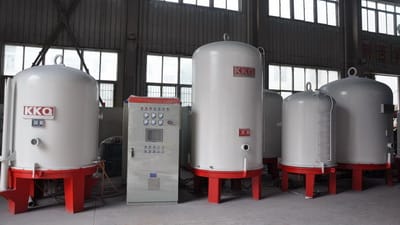

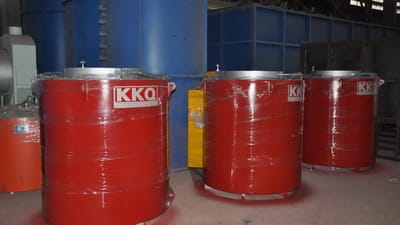

Gas nitriding, glow ion nitriding, liquid nitriding.
It can also be used for various applications such as protective atmosphere annealing, Tempering , Nitrocarburizing .

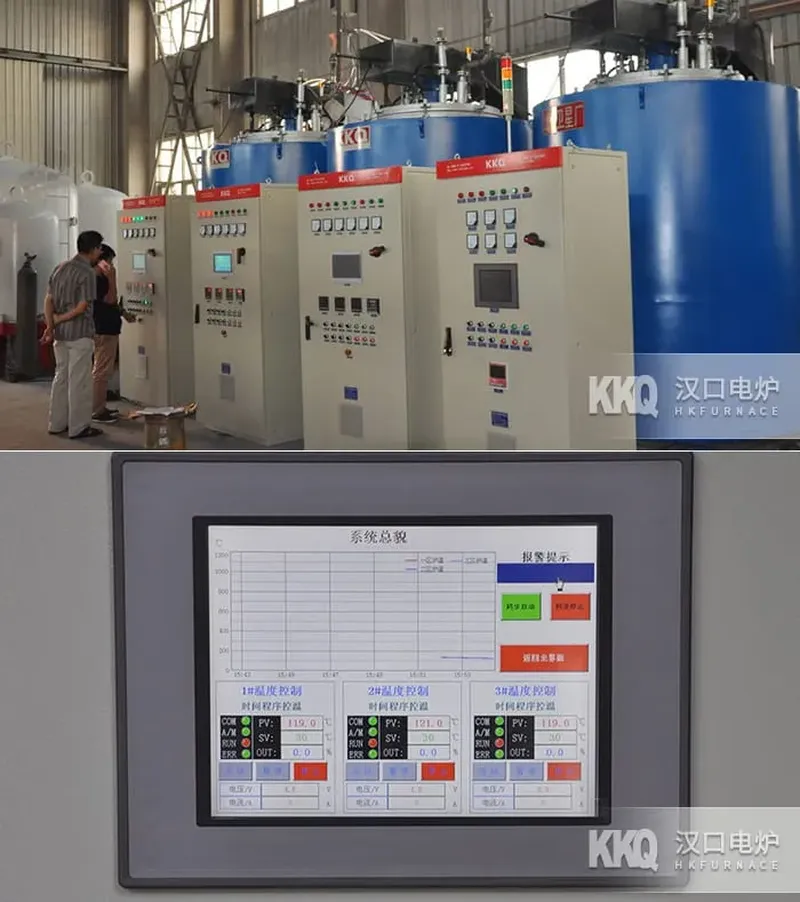

Hankou Furnace The temperature control system with graphical interface independently developed by the company, Touch Screen power regulation module, Precision process curve control.
Automation Process control enables the ideal nitriding process curve to achieve High Precision implementation in practical applications, with a temperature control accuracy of ±1°C.
