Nitrogen Protected Pit Type Tempering Furnace

Equipment Application

Nitrogen Protected Pit Type Tempering Furnace is high Energy Saving type, High Precision temperature control, periodic operation type Industrial Electric Furnace , mainly used for non-oxidation Tempering heat treatment process of thin-walled seamless steel pipes, long shafts, various metal parts under vacuum nitrogen protection state, and can be used in navigation Day , aviation aircraft manufacturing industry, as well as automobile manufacturing industry, Precision mechanical manufacturing industry, Precision for bright non-oxidation nitrogen protection Tempering of parts or forgings. The product complies with the military standard of the Ministry of Aviation Industry of China GJB509-98-88 Class I protective atmosphere Vacuum Furnace .

Nitrogen Protected Pit Type Tempering Furnace Manufacturer

Structure Introduction

Furnace body: Nitrogen Protected Pit Type Tempering Furnace is mainly made of steel plate rolled into Pit Furnace shell, the furnace body structure is made of section steel assembled and welded.

Furnace Lining : Uses high-purity Ceramic Fiber thermal insulation cotton, gaps are filled with expanded thermal insulation powder, it is a high Energy Saving type Furnace Lining .

Electric Heating Element : Made of corrosion-resistant High Temperature Resistance Strip 0Cr25A15, service life can reach 5 Year .

Vacuum tank: The tank body is rolled from 1Cr18Ni9Ti Stainless Steel plate or imported corrosion-resistant High Temperature Stainless Steel plate, made with shielded Automatic sealing welding, and finished through Large X-ray flaw detection inspection and pressure testing.

Furnace Lid : Stainless Steel material is used for internal insulation Furnace Lid , Furnace Lid panel and tank body adopt double water-cooled vacuum rubber seal, a vacuum pumping interface, a nitrogen supply protective atmosphere interface and a vacuum pressure gauge are installed on the nitrided Tempering Furnace panel.

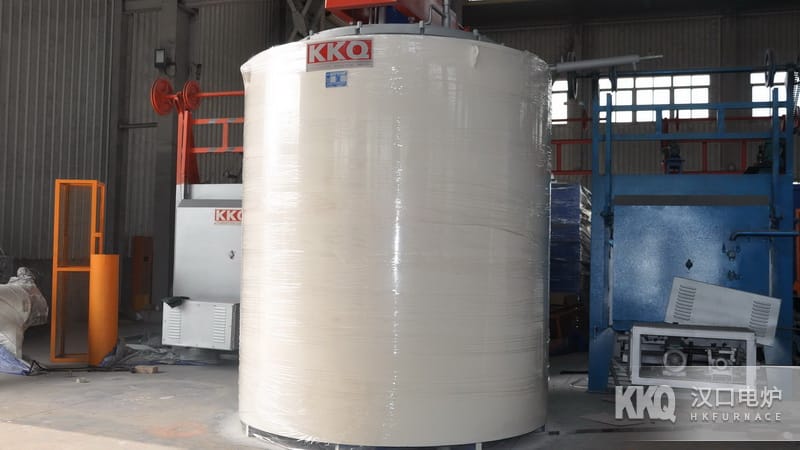

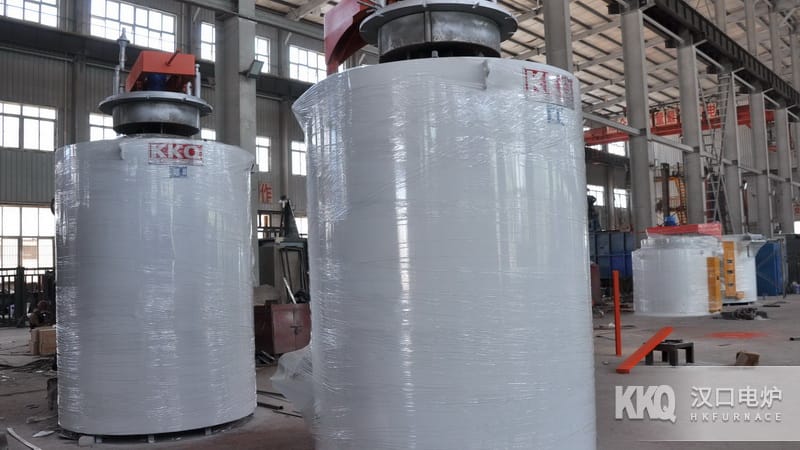

Nitrogen Protected Pit Tempering Furnace

Technical Features

Furnace Lid and the furnace pot can use the workshop Overhead Crane to lift out the entire vacuum nitriding pot for natural air cooling or forced rapid cooling in a pool, to facilitate loading and unloading of workpieces. To improve Production Efficiency , you can order two vacuum nitriding pots for alternate continuous operation. Nitrogen Protected Pit Type Tempering Furnace above 60KW is divided into multiple zones for temperature control, High Precision designs and distributes power. It adopts multiple sets of microcomputer program temperature control electric cabinets, Automatic displays the measured furnace temperature and nitrogen protection status, calculates Liter heating slope temperature values and set values, provides over-temperature alarm and Automatic process curve recording. It can set 8-segment process curves, with a temperature control accuracy of ±1℃.

Nitrogen Protected Pit Type Tempering Furnace can perform rapid in-furnace Cooling System , which can be proposed when placing an order. After the hot nitrogen inside the nitrogen-protected furnace is drawn out of the furnace, the rapid nitrogen circulation receives heat to reduce the nitrogen temperature, and cold nitrogen enters the tank's rapid cooling circulation system.
