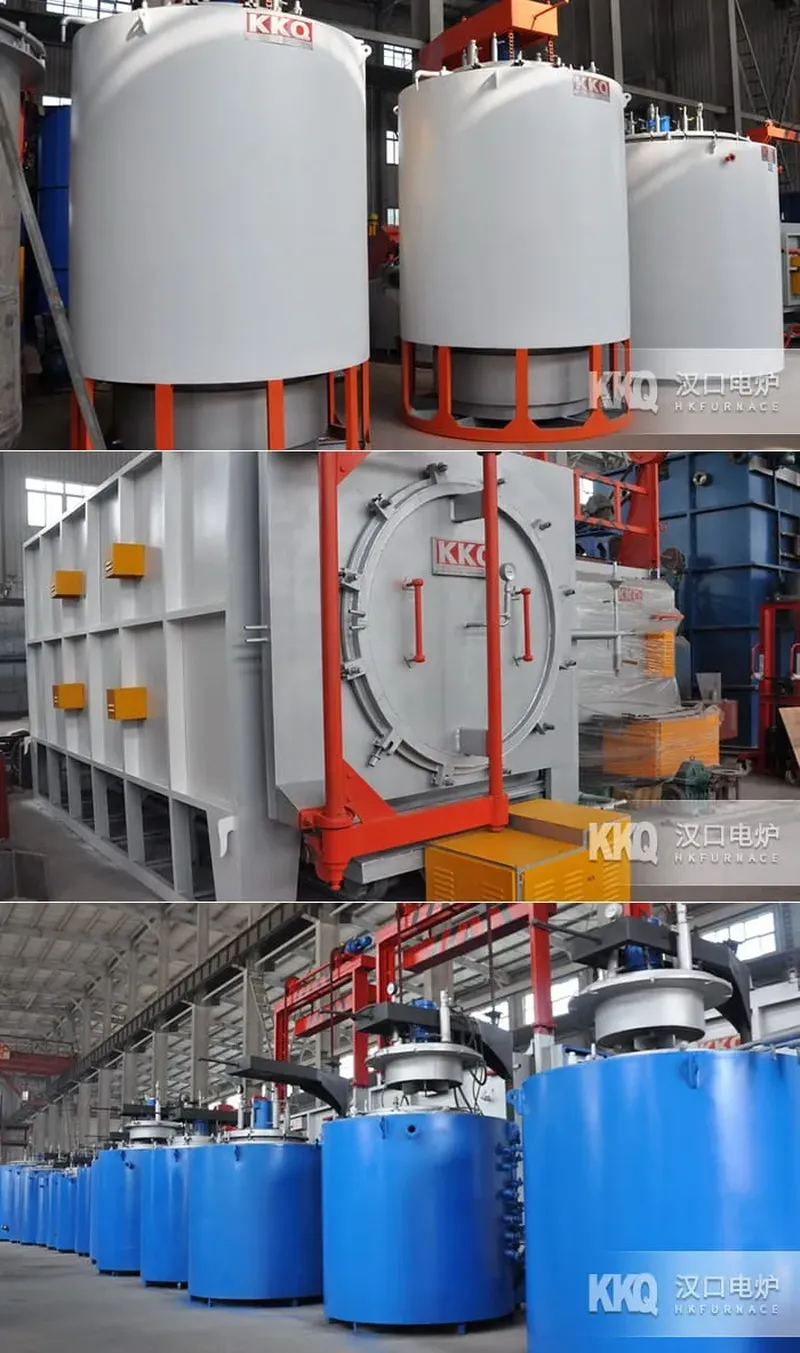

Vacuum Furnace It has a wide range of uses and there are many furnace series. Here we mainly introduce the periodic operation type Pre-Vacuum Furnace .

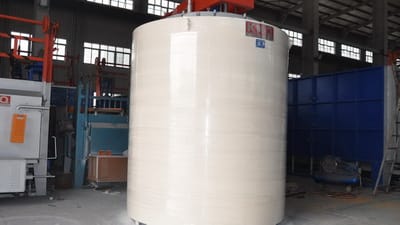

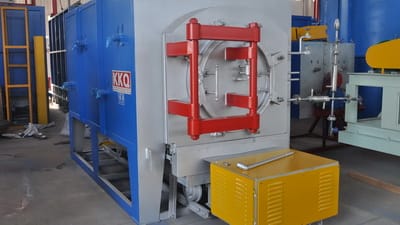

This type Vacuum Furnace is made by assembling and welding steel plates and section steels Pit Type or Box Furnace shell, Furnace Lining adopts Full-Fiber thermal insulation structure.
Electric Heating Element uses corrosion and High Temperature resistant resistance alloy elements arranged around Furnace Chamber , the furnace tank is made of High Temperature Stainless Steel plate Automatic tightly welded and rolled.
Furnace Lid adopts double water-cooled vacuum rubber seal Stainless Steel internal heat insulation Furnace Lid , configure Vacuum Seal fans according to process requirements.
According to different process requirements, Vacuum Furnace can be used for 1200℃ to 650℃ High Temperature , medium temperature, Low Temperature different temperature zones.
It can be applied to aerospace Day , military industry, nuclear power, auto parts, Precision machinery manufacturing and other industries.
It realizes non-oxidation and decarburization-free heating of Precision mechanical parts, Quenching , annealing, Tempering and other heat treatments and Spheroidizing Annealing .

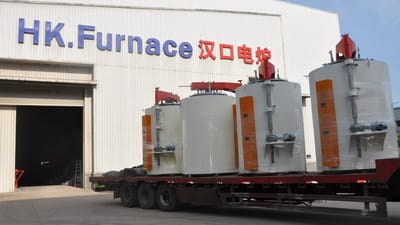

It can also be used for bright annealing of copper materials in the non-ferrous metal industry, and for vacuum sintering of metal or non-metal materials and parts in the petroleum machinery industry and other applications.

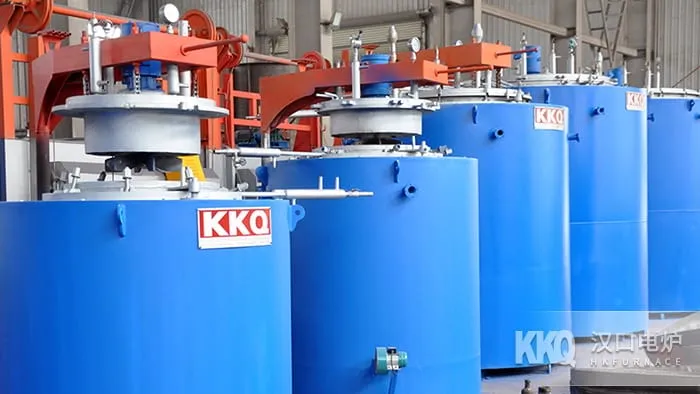

Furnace Chamber Adopts high-purity Ceramic Fiber High Pressure modules with high specifications in the heat treatment industry, High Pressure masonry, multiple anchoring, ensuring high thermal insulation performance in Furnace Lining manufacturing.
Energy Saving Emission reduction technology, Full-Fiber structure, the internal Liter temperature speed is fast. Low thermal conductivity, low heat capacity, excellent corrosion resistance.

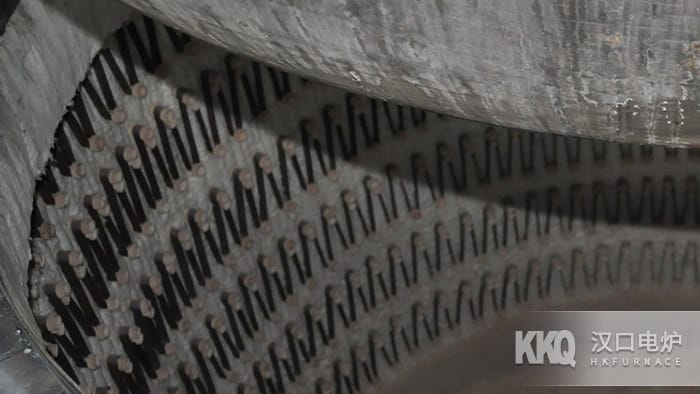

Heating Element is specially made Superalloy Resistance Strip , reasonably arranged around Furnace Chamber according to the average temperature design.
Good Oxidation Resistance energy, High Temperature resistance, high load-bearing capacity. Super High Temperature no cracking even when overheating, regular Year maintenance-free.
When applied in aviation Day Precision heat treatment and other applications, combined with High Precision temperature control system, the furnace temperature uniformity can reach ±3-5℃, complying with the AMS2750E standard.

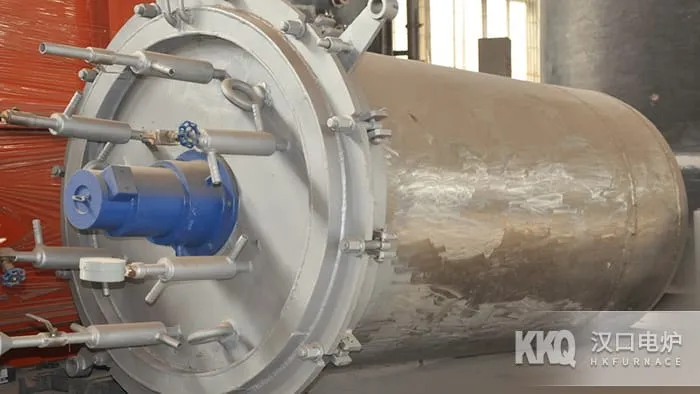

Imported SUS310S Corrosion-resistant High Temperature Stainless Steel vacuum tank body, X-ray flaw detection, no air leakage.
Design and customize special sealed vacuum fans, High Pressure hot air internal circulation.

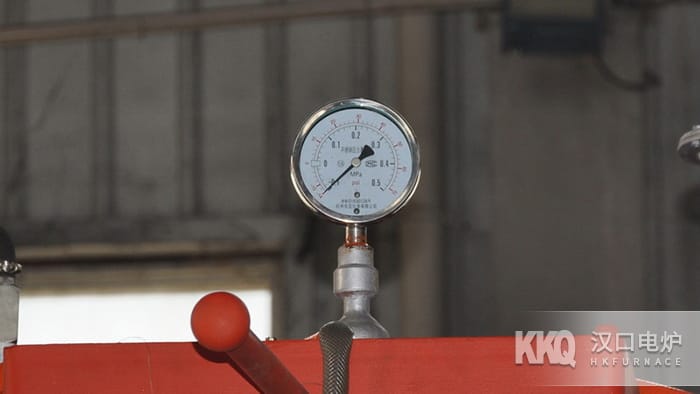

From Furnace Lid to the vacuum tank, various interfaces such as exhaust and intake are tightly sealed.
It can quickly evacuate to reach the specified negative pressure vacuum state, and maintain it for a long time during the heat treatment process.
Thickened double water cooling Vacuum Furnace cover , heat preservation Durable , easy to customize various auxiliary supports Equipment .

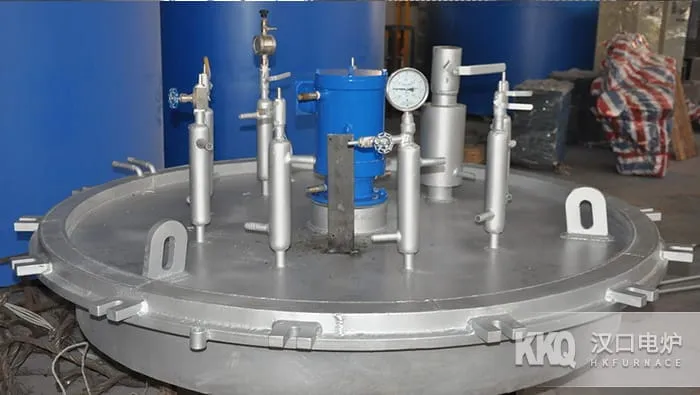

According to customer requirements, a variety of inlet and exhaust atmosphere interfaces can also be configured.

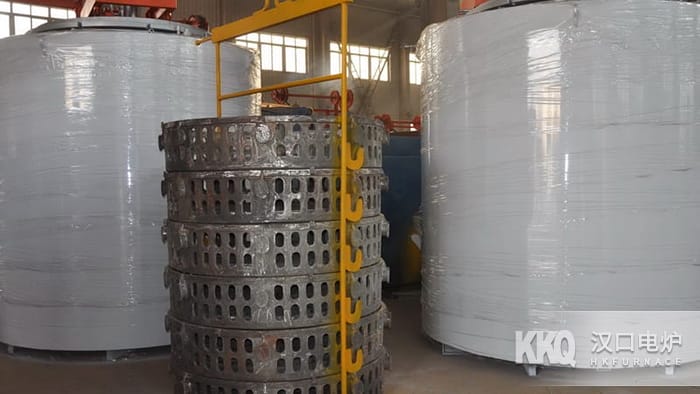

We design and manufacture various types of workpiece material frames, with fast and convenient loading and unloading.
Material frames, Fixture , material cartridges and various Tooling are all available.
Protective atmosphere can be passed through , bright and non-oxidizing Vacuum Heat Treatment .

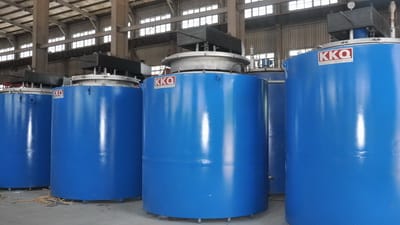

Can be used for vacuum annealing, Quenching , Tempering , sintering and various other applications.
300-1200℃, multiple temperature zones, strong adaptability.

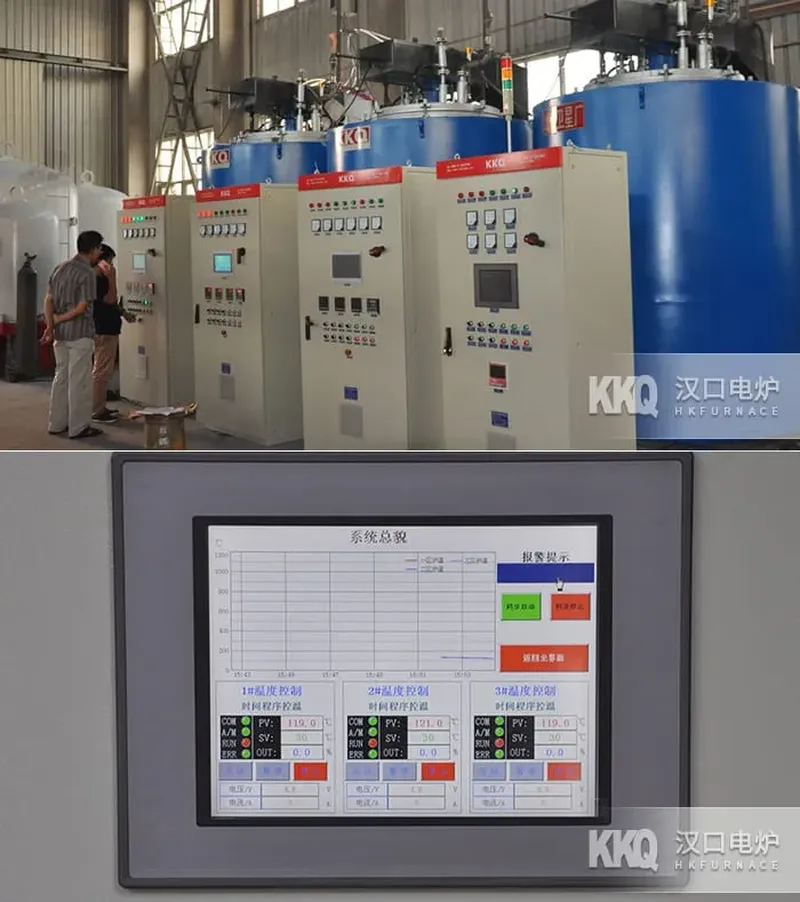

Hankou Furnace Temperature control system with graphical interface independently developed by the company, High Quality power regulation module, Precision process curve control.
Automation Process control enables the ideal Vacuum Heat Treatment process curve to achieve High Precision implementation in practical applications, with a temperature control accuracy of ±1℃.
