Quenching The tank is made of steel plates and section steels into square, rectangular and circular furnace body structures, heated by electric heating tubes Quenching Medium , Quenching the tank is equipped with a circulating pump, Stainless Steel plate heat exchanger, Automatic constant temperature control cabinet. Taking oil as Quenching Medium also requires configuration of nitrogen fire extinguishing pipes. In addition, Automatic Liter lowering Quenching frame is available as an option.

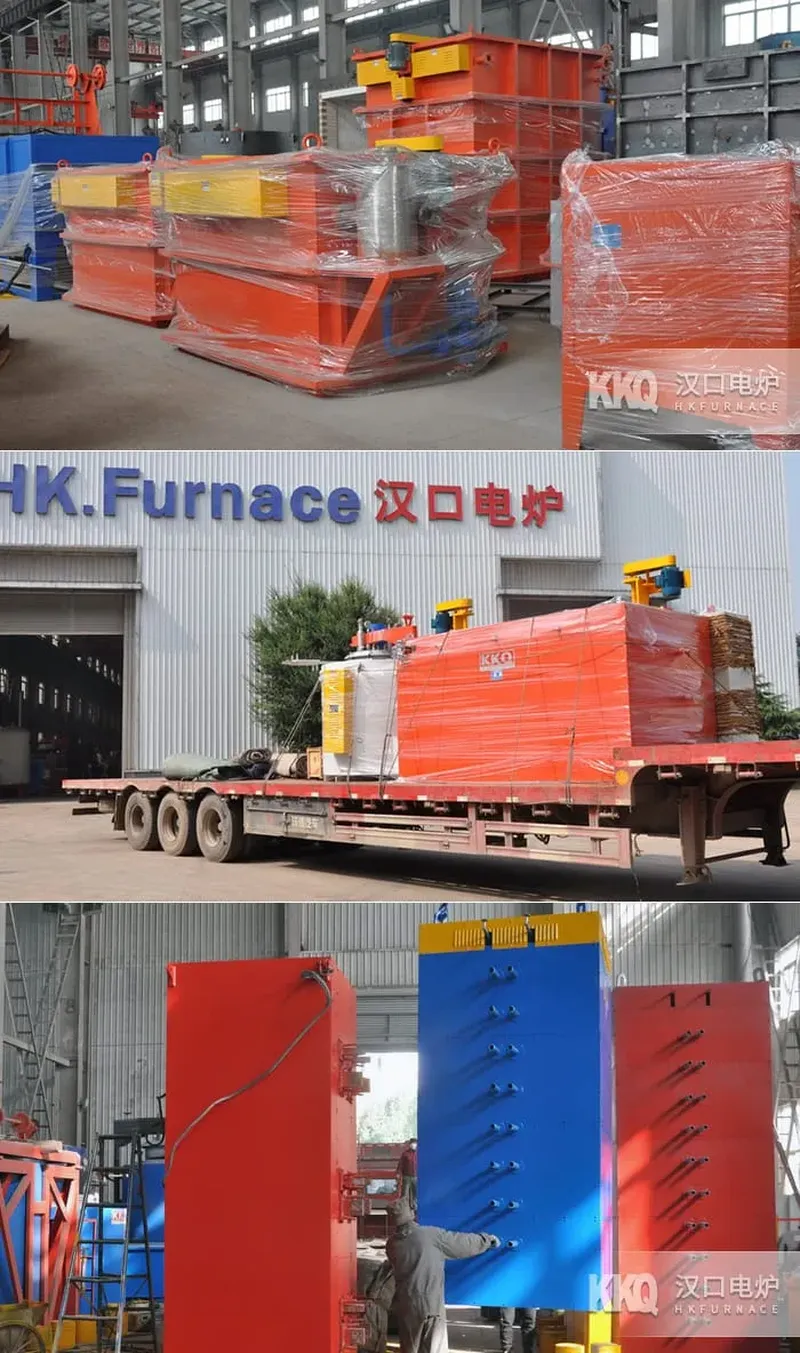

Quenching The tank has different furnace structure configurations according to different Quenching Medium , and is generally divided into: Quenching Oil Tank , Quenching Water Tank , Quenching salt tanks
If you need to learn about Quenching Furnace , please click here to view.Quenching Furnace Detailed introduction
After mechanical parts and metal workpieces are heated by Heat Treatment Furnace , the Quenching tank allows workpieces to undergo Quenching in Quenching Oil , water and salt solution that require a constant temperature as required by the process, which can ensure that the temperature inside the Quenching tank Stable remains maintained during Quenching , so that the workpieces achieve the ideal Quenching effect.
When the workpiece enters the Quenching tank Quenching and causes the Quenching Medium temperature Liter to be high, the cooling circulation pump starts working, pumps the High Temperature Quenching Medium in the Quenching tank into the Stainless Steel plate heat exchanger. At this time, the cooling circulation water Automatic is connected, and heat exchange is carried out through the multi-layer Stainless Steel plates of the plate heat exchanger, so that the cooled Quenching Medium returns to the Quenching tank again, and the reciprocating circulation cools the Quenching tank. When the Quenching Oil Tank temperature decreases, the heating pipe Automatic performs temperature-controlled heating, so that the Quenching Medium maintains a constant temperature at the specified process Quenching temperature.

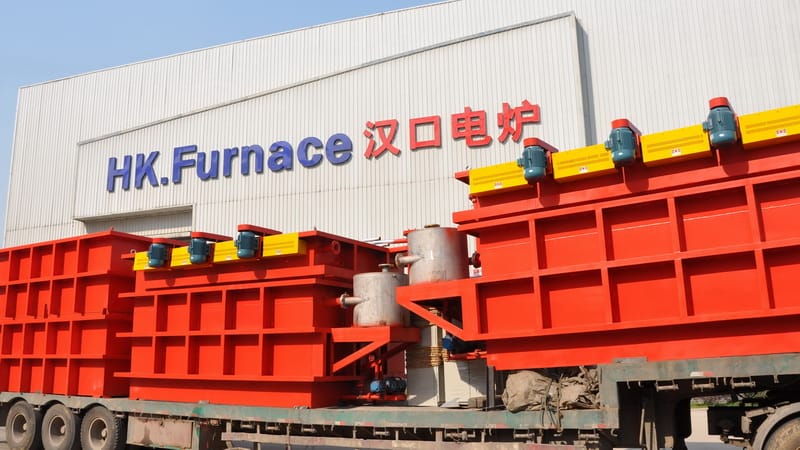

The outer shell steel structure is densely welded and formed from steel plates and section steels, the furnace body structure Durable , reinforced with combined channel steels.

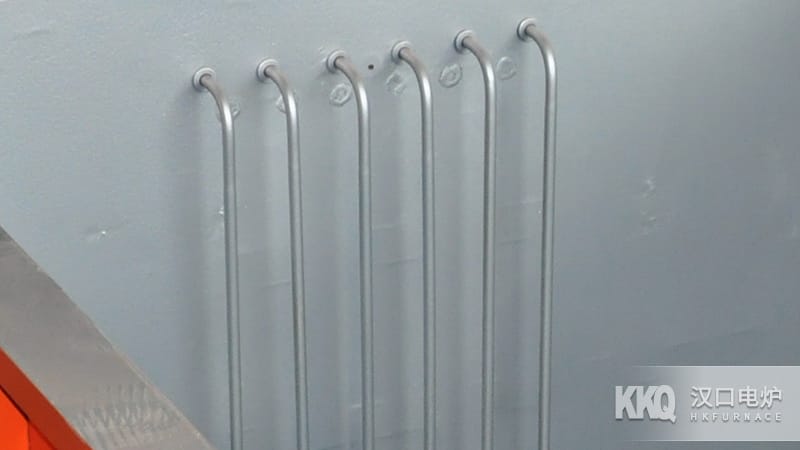

The heating element adopts a replaceable far-infrared plate-shaped or tubular heating element, and is installed on the side of the box body.
Good Oxidation Resistance energy resistance, High Temperature resistance, and high load capacity. Constant temperature heating without fracture, regular Year maintenance-free.

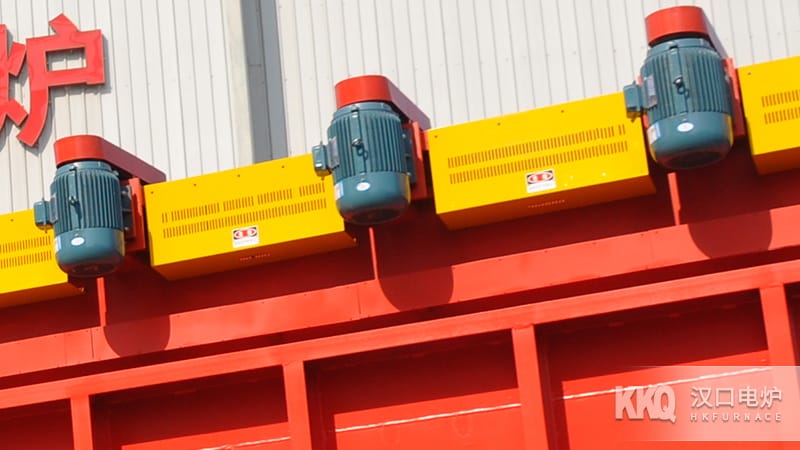

Multiple High Speed stirring bubble breaking machines quickly remove High Pressure water bubbles generated on the surface of High Temperature workpieces, high uniform temperature and strong convection improve Quenching quality.

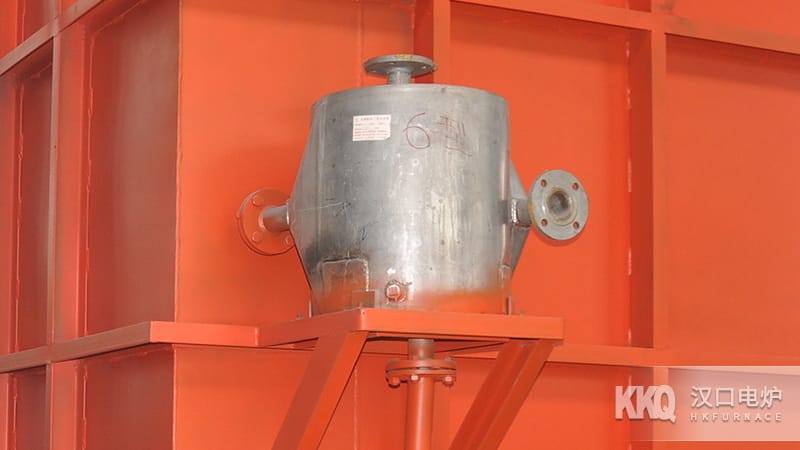

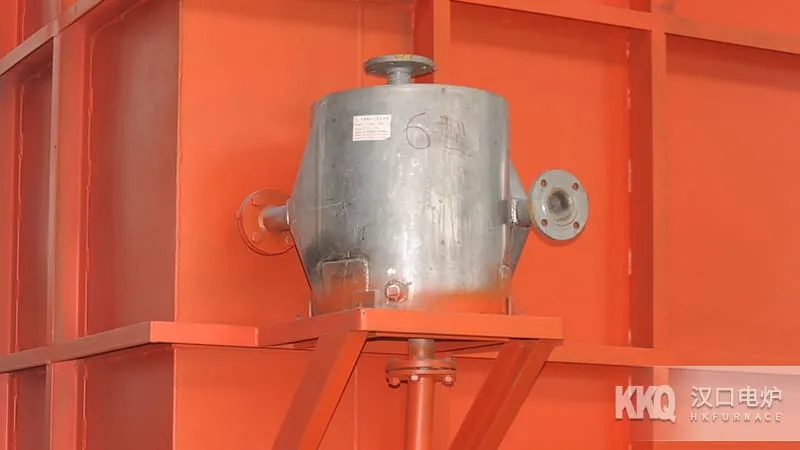

Quenching Install a pipeline pump on the outer side of the tank and Stainless Steel spiral heat exchanger, the counter-flow cooling water performs rapid heat exchange.

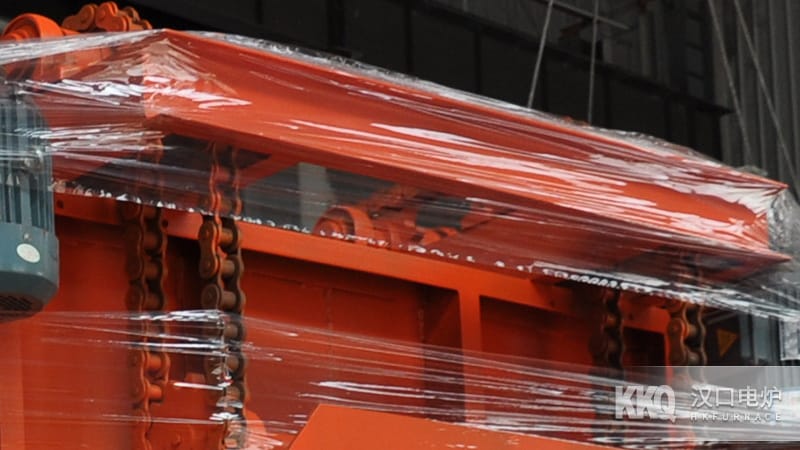

Quenching Two layers of square ring nitrogen pipelines and multiple nozzles are installed at the notch part, Quenching the cover is closed and sealed, nitrogen injection forms protection, Green and Environmentally Friendly .

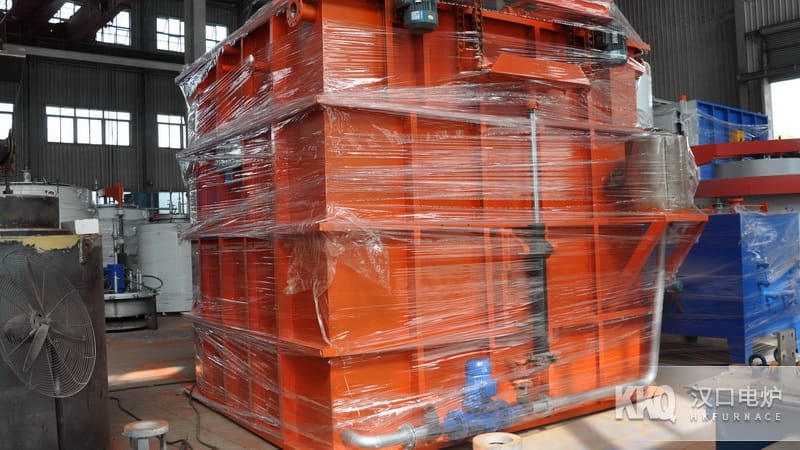

Quenching Water Tank , Automatic heating temperature control, stirring circulation.

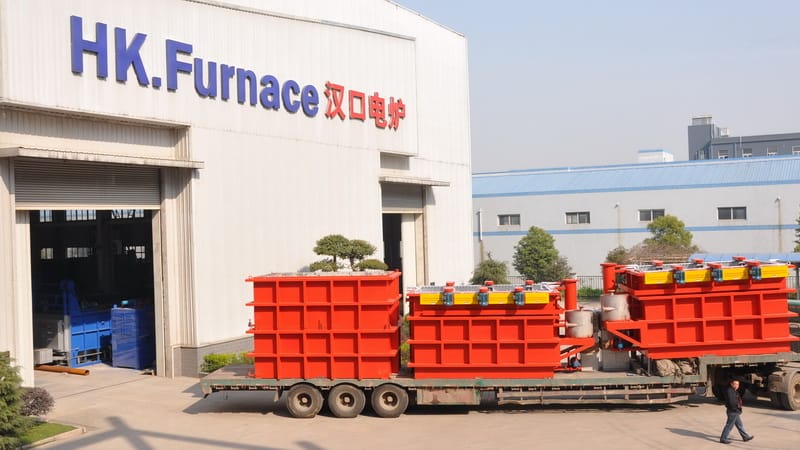

Quenching Oil Tank , all-round nitrogen fire extinguishing pipeline system.
Quenching Salt tank, isothermal salt bath Quenching , high temperature uniformity.

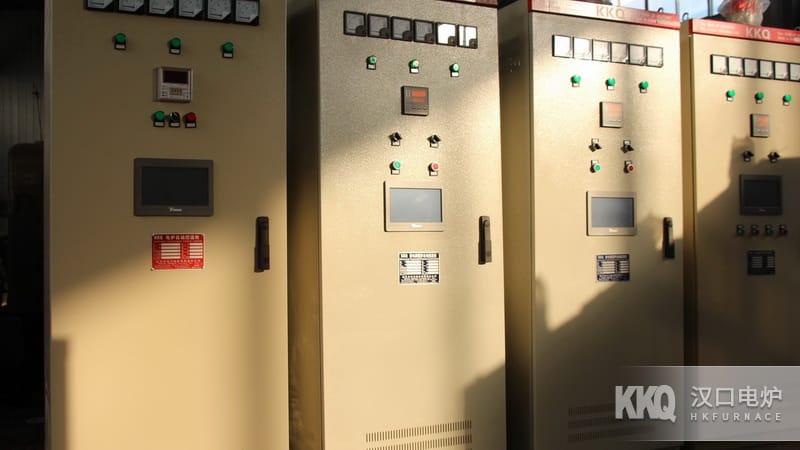

Hankou Furnace Independently developed by the company Automation temperature control system, Precision process curve Automation control, temperature control accuracy is ±1℃.
