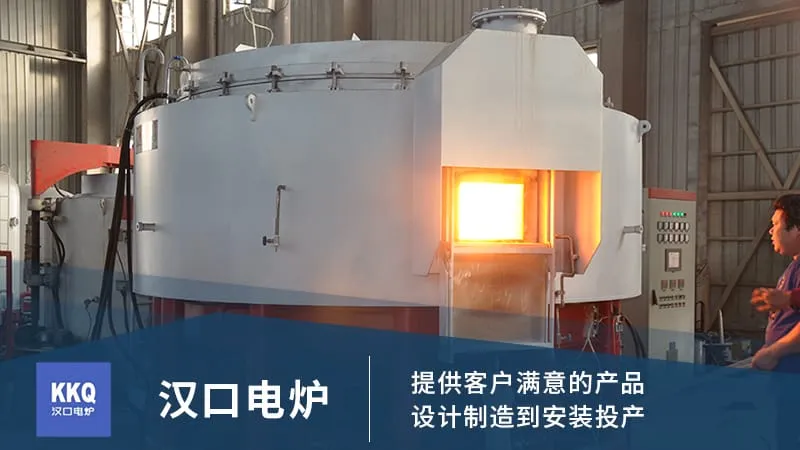

RZD series Rotary Hearth Furnace is Energy Saving type continuous Heat Treatment Furnace , can produce various specifications of Rotary Hearth Furnace at 650, 750, 850, 950, 1200°C.
In addition, it can be designed and produced according to user requirements as High Temperature annular Rotary Hearth Furnace for 1400-1600℃.
Another type of rotary Industrial Furnace is Drum Furnace , please click here to view.Drum Furnace Detailed Introduction

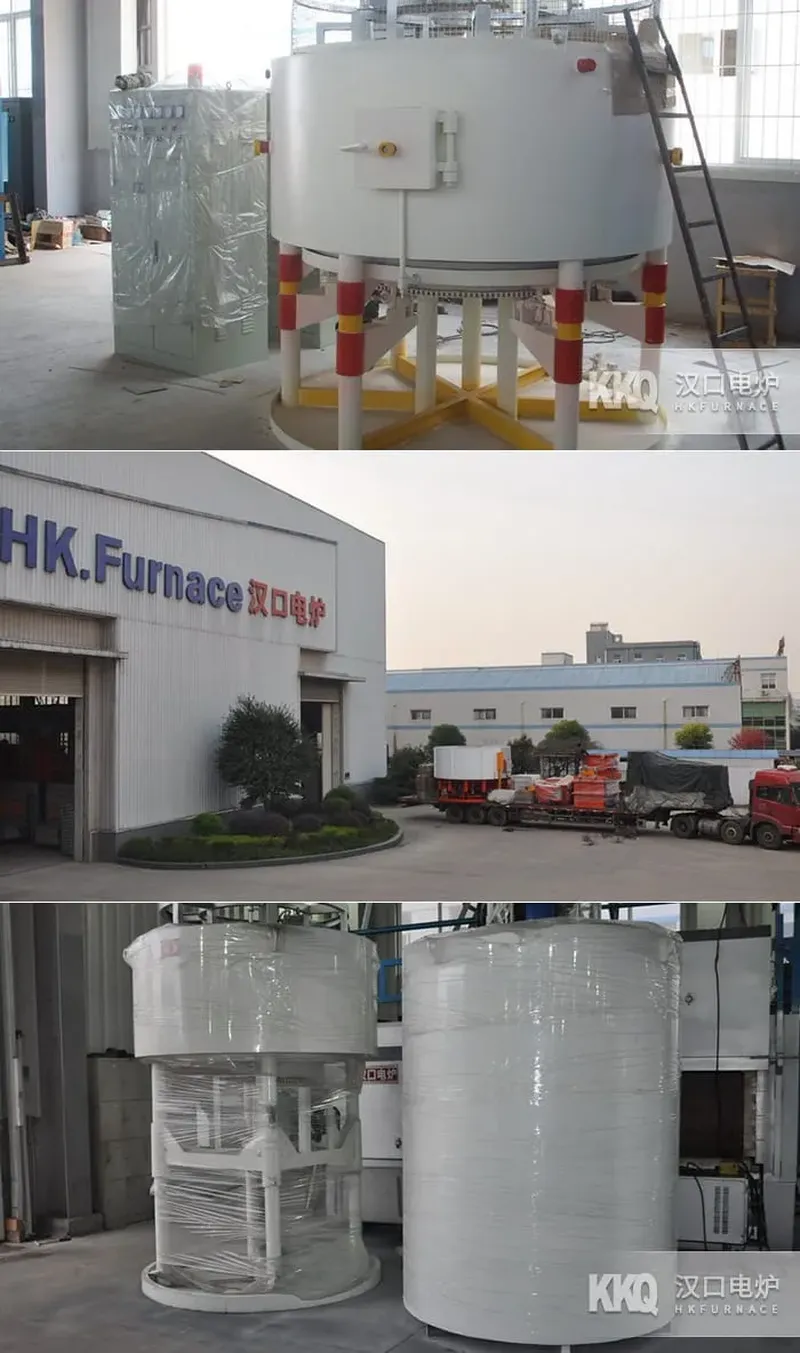

For mechanical parts, auto accessories, aluminum Alloy Steel body heating, hot fitting, Titanium Alloy forging heating and other heat treatments.
It can also be used in processes such as the reduction roasting of carbon-containing pellet ore, and the protective atmosphere roasting of cathode materials in the lithium battery industry.

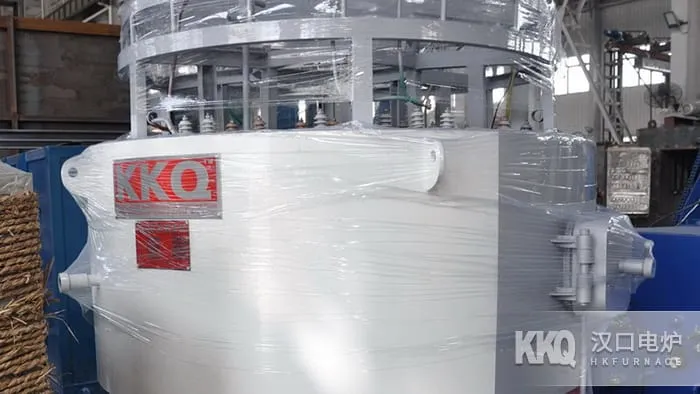

The outer shell is rolled from steel plates into a cylindrical shape, and reinforced with combined channel steel.
The furnace shell structure is manufactured by dense welding of combined section steel.

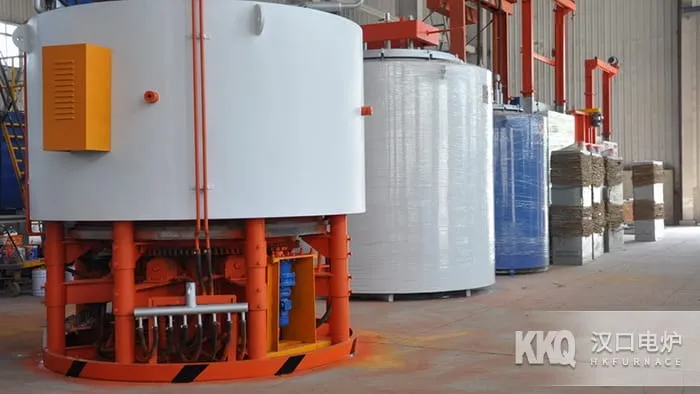

Furnace Chamber adopts anti- Carburizing annular Refractory Material combined compression molding Furnace Lining , to achieve good thermal insulation performance.
Install Ceramic Fiber insulation layer, the Liter temperature speed in the furnace is fast. It has low thermal conductivity, low heat capacity, and excellent corrosion resistance.
Heating Element is specially made Superalloy Resistance Strip , reasonably arranged around the cylindrical Furnace Chamber according to the average temperature design.
A U-shaped Silicon Carbide Rod heating element is used in the temperature range above 1200℃. Super High Temperature heating without fracture, long-term Year maintenance-free.

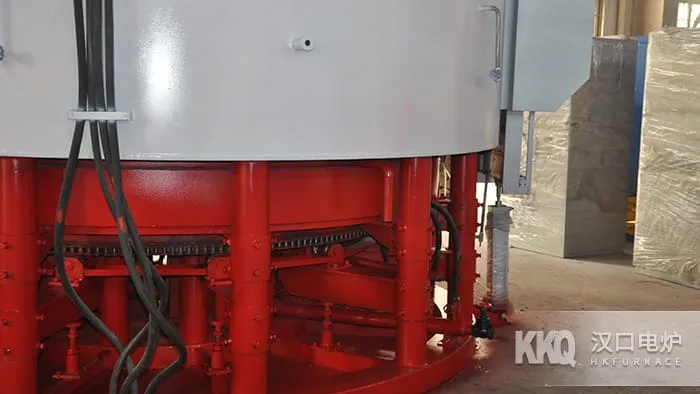

Steel structure ring frame, annular rotary table, the table top is wear High Temperature resistant silicon carbide plate.
It adopts a light annular track, operates with stepless speed regulation, and features a deep well water-cooled oil seal labyrinth sealing structure, Stable Operation .

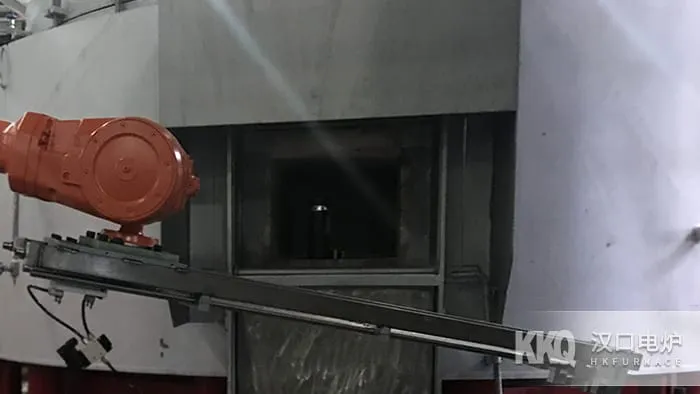

Furnace Door adopts pneumatic up and Liter down, interlocked with robot Automatic feeding and discharging, effectively improves Production Efficiency .
Titanium Alloy Forging rotary bottom heating furnace, with mature technology, it is the choice of many customers.
Lithium battery industry positive electrode material protective atmosphere roasting, a new driving force for the lithium battery materials industry.
Controlled Atmosphere Rotary Hearth Furnace , after Carburizing , pressure Quenching parts are heated in protective atmosphere.

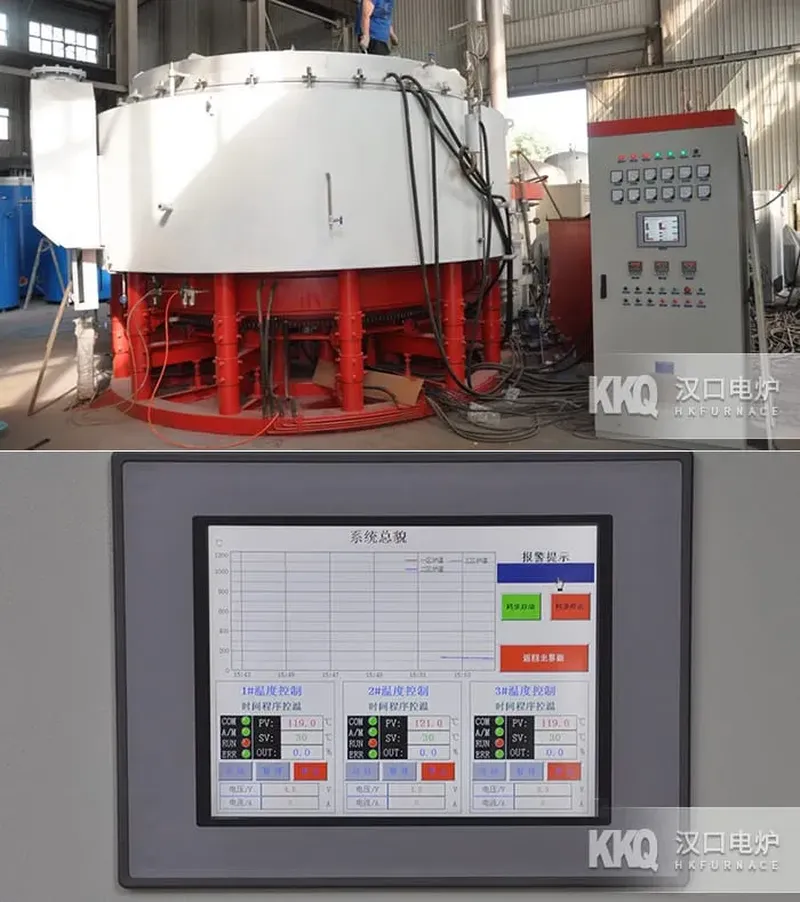

Hankou Furnace Independently developed temperature control system with graphical interface, Touch Screen power regulation module, High Quality process curve control Precision .
Automation Process control enables the ideal heat treatment process curve to achieve High Precision implementation in practical applications, with a temperature control accuracy of ±1°C.
