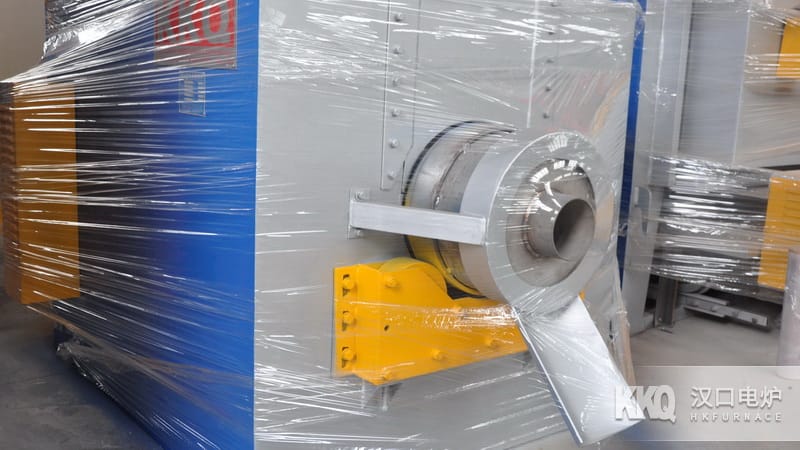

950℃ High Temperature Rotary Drum Furnace

Equipment Application

RG2 series High Temperature Rotary Drum Furnace is a semi-cyclical operation drum type Industrial Furnace , Hankou Furnace professionally manufactured High Temperature Rotary Drum Furnace Advanced Technology , with reliable performance Stable , it is mainly used for High Temperature heat treatment of mass metal parts such as balls, rollers, and thin steel sheets.

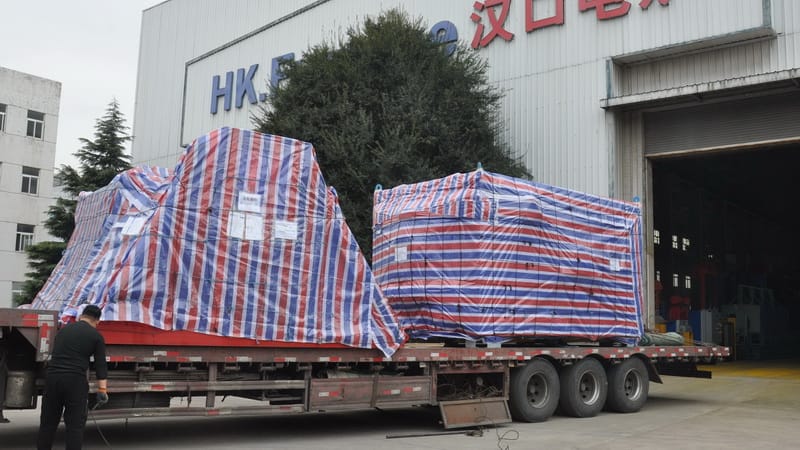

High Temperature Rotary Drum Furnace Manufacturer

Structure Introduction

This series Equipment shell is similar to ordinary Drum Furnace , it is a square furnace body. Furnace Lining insulation adopts high-alumina Aluminosilicate Fiber composite Furnace Lining , Energy Saving power saving effect is obvious. The heating element uses 0Cr27Al7Mo2 High Temperature resistance alloy elements arranged around the Drum Furnace furnace chamber. The furnace tank material is made of imported high temperature resistant High Temperature Stainless Steel into a cylindrical shape. The motor reducer rotates the furnace tank, and the governor controls free adjustment of the rotation speed, so that the workpiece inside Drum Furnace is evenly heated, and the color is consistent after heat treatment. The heat treatment temperature of High Temperature Rotary Drum Furnace can reach 950℃, the specially designed and developed Drum Furnace maximum temperature can reach 1200℃.

Online Message

We will contact you as soon as possible. Chief Engineer Contact:
+86 13807177084(Wechat) / hkfurnace@hotmail.com

Technical Parameters

RG2-75-9

Rated Power75

Rated Voltage380

Frequency50

Phases3

Max Temperature950

Working Temperature930

Chamber Size DiameterΦ780

Length1700

No-load Heating Time≤3.5

Temperature Control Accuracy±1

Temperature Uniformity±5

Max Loading Capacity250

Weight (Reference)3800

RG2-150-9

Rated Power150

Rated Voltage380

Frequency50

Phases3

Max Temperature950

Working Temperature930

Chamber Size DiameterΦ800

Length2500

No-load Heating Time≤3.5

Temperature Control Accuracy±1

Temperature Uniformity±5

Max Loading Capacity500

Weight (Reference)4900

RG2-450-9

Rated Power450

Rated Voltage380

Frequency50

Phases3

Max Temperature950

Working Temperature930

Chamber Size DiameterΦ900

Length8000

No-load Heating Time≤4

Temperature Control Accuracy±1

Temperature Uniformity±5

Max Loading Capacity1500

Weight (Reference)8600

RG2-800-9

Rated Power800

Rated Voltage380

Frequency50

Phases3

Max Temperature950

Working Temperature930

Chamber Size DiameterΦ1900

Length10000

No-load Heating Time≤4

Temperature Control Accuracy±1

Temperature Uniformity±5

Max Loading Capacity3000

Weight (Reference)12000

* 950℃ High Temperature Rotary Drum Furnace of various specifications and sizes for users.

Technical Consultation: +86 13807177084

Rotary Furnace

Specific Equipment

Technology

Drum Furnace Customer Case

It gathers on-site Drum Furnace from all across the country, including Hubei, Hunan, Shandong, Shanxi, Henan, Hebei, Guangdong, Guangxi, as well as Equipment cases from countries around the world, including exports to the United States, Germany, Japan, South Korea, Singapore, Malaysia, Indonesia, etc.

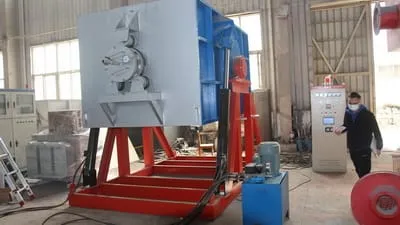

This 180KW drum-type lithium battery material Roasting Furnace , is the crystallization of R&D based on in-depth market demand analysis and Cutting-Edge Technology . It addresses the special requirements of lithium battery anode materials, adopts advanced dynamic calcination technology, and through continuous rotation of the drum, allows materials to be heated uniformly during the heating process, and achieves rapid High Efficiency heat conduction. This design not only greatly shortens the roasting cycle, but also significantly improves the completeness of material reaction, and ensures consistent product standards. Lithium Battery Materials Exported to Argentina Roasting Furnace

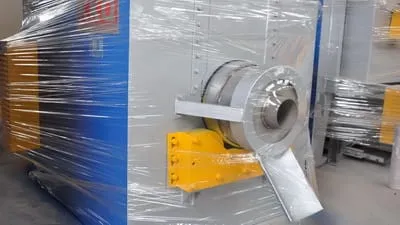

950℃ High Temperature Rotary Drum Furnace
