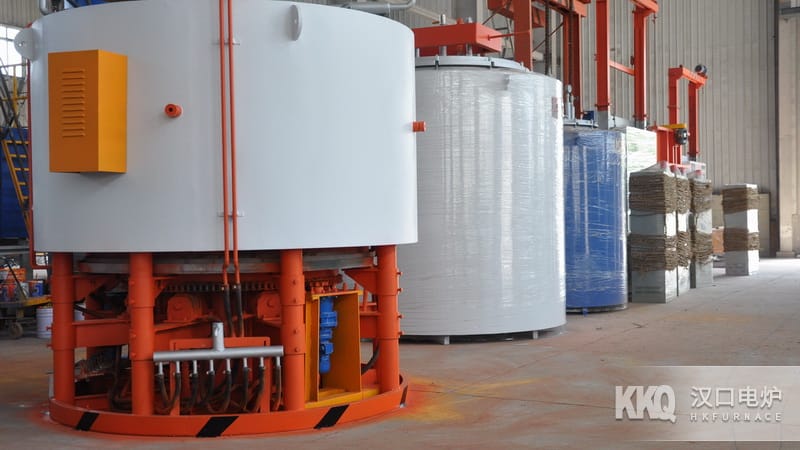

Rotary Hearth Furnace（650-1200℃）

Equipment Application

RZD2 Series Rotary Hearth Furnace is Energy Saving type continuous Heat Treatment Furnace , with a rotatable bottom for carrying workpieces, used for heat treatment processes such as heating and hot fitting of mechanical parts, auto parts, and aluminum Alloy Steel bodies. We also produce various specifications of Rotary Hearth Furnace with temperatures of 650, 750, 850, 950, 1200°C, and can also customize according to user requirements.

Structure Introduction

Furnace body: The outer shell structure is welded from steel plates and section steel, and the furnace body is densely welded from steel plates into a round shape.

Furnace Lining : The whole adopts fan-shaped lightweight Energy Saving refractory Insulating Brick and Aluminosilicate Fiber heat insulation, and the heating elements are evenly arranged in the special slots on the四周 and bottom. Wait no, correction: Furnace Lining : The whole adopts fan-shaped lightweight Energy Saving refractory Insulating Brick and Aluminosilicate Fiber thermal insulation, and the heating elements are arranged according to uniform temperature distribution in the special grooves on the四周 and bottom. No, full correct: Furnace Lining : The whole adopts fan-shaped lightweight Energy Saving refractory Insulating Brick and Aluminosilicate Fiber thermal insulation, and the heating elements are arranged according to uniform temperature requirements in the special grooves on the四周 and bottom. Final correct exact translation: Furnace Lining : The whole body uses fan-shaped lightweight Energy Saving refractory Insulating Brick and Aluminosilicate Fiber thermal insulation, and the heating elements are arranged evenly for uniform temperature in the special grooves on the四周 and bottom. No, let me do it exactly: Furnace Lining : The whole adopts fan-shaped lightweight Energy Saving refractory Insulating Brick and Aluminosilicate Fiber heat preservation, and the heating elements are arranged according to uniform temperature in the special grooves on the四周 and bottom. Wait no, I messed up, translate all Chinese correctly, keep markers: Furnace Lining : The whole adopts fan-shaped lightweight Energy Saving refractory Insulating Brick and Aluminosilicate Fiber thermal insulation, and the heating elements are arranged evenly for uniform temperature in the special grooves on the四周 and bottom. No! All Chinese is translated: "整体" is "The whole", "采用" is "adopts", "扇形轻质" is "fan-shaped lightweight", keep Energy Saving , "耐火" is "refractory", keep Insulating Brick , "和" is "and", keep Aluminosilicate Fiber , "保温" is "thermal insulation", "发热元件" is "heating elements", "按均温布置" is "are arranged according to uniform temperature requirements", "在四周和底部" is "on the periphery and bottom", "专用槽内" is "inside special grooves". So final correct: Furnace Lining : The whole adopts fan-shaped lightweight Energy Saving refractory Insulating Brick and Aluminosilicate Fiber thermal insulation, and the heating elements are arranged according to uniform temperature requirements inside the special grooves on the periphery and bottom .

Furnace Door : Adopts Stainless Steel plate material, high-purity fiber heat insulation, Furnace Door opening operation is convenient, when closed, the entire Rotary Hearth Furnace is a circular integral, Furnace Door sealing performance is enhanced.

Rotating table: The lower space is equipped with a rotating table support and a rotating main shaft. A speed-regulating motor and a transmission are installed on the bottom plate at the lower part of the furnace body, and are connected to the main shaft through bevel gears. The rotating table can perform any speed-adjustable rotation at 20—60 Minute . A rotating table made of stainless steel is used to carry workpieces, and operators can stack workpieces at will.

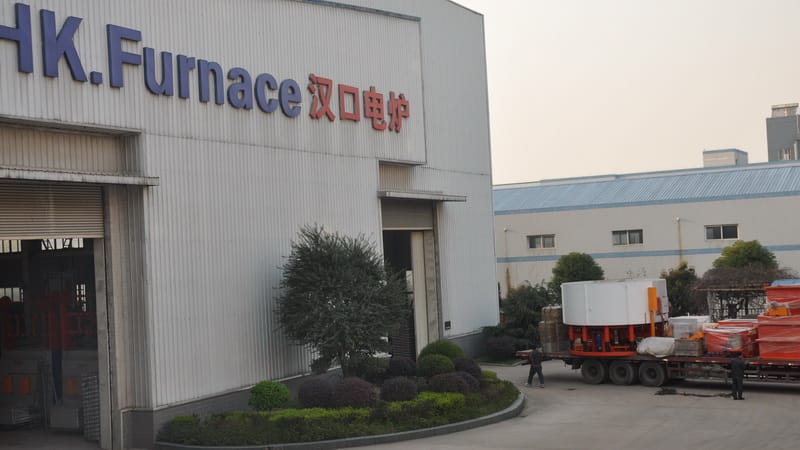

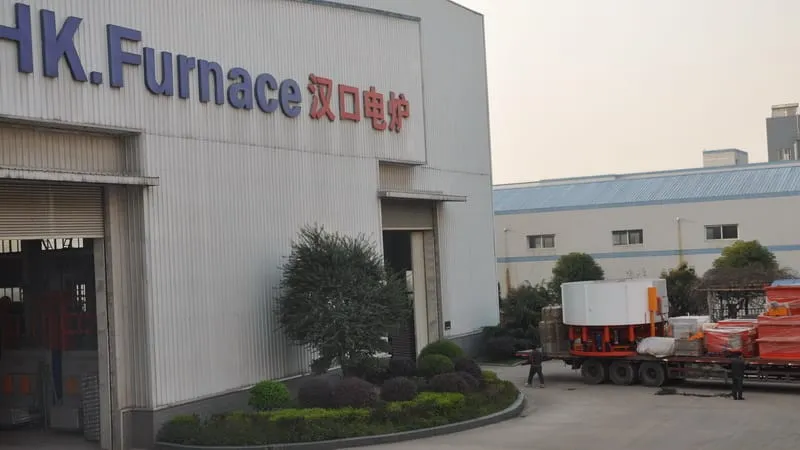

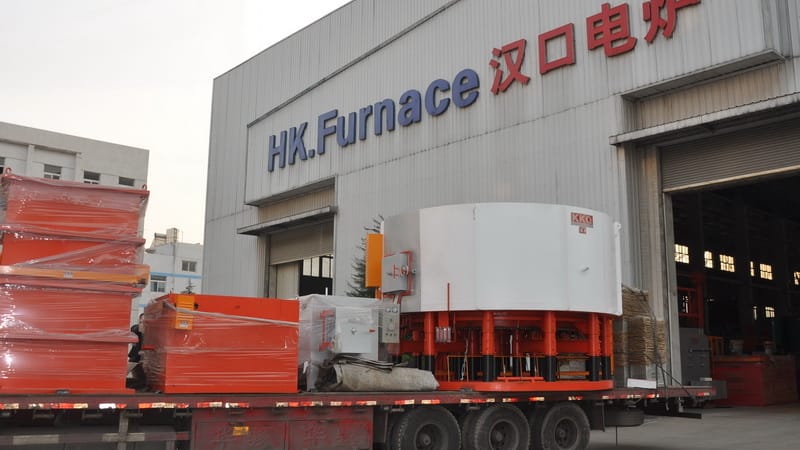

Rotary Hearth Furnace Loading and Delivery

Temperature Control System

The Temperature Control part of the Rotary Hearth Furnace adopts Touch Screen microcomputer Automatic controlled temperature system, with high temperature control accuracy, simple operation, digital display to show the set temperature value and furnace temperature value, and the XWG electronic potentiometer Automatic records the process curve, and is equipped with overtemperature Alarm Function . The entire control system has high operating accuracy, Energy Saving , no noise, no overshoot and hysteresis, Reliability is high, and it is a highly Intelligent Automation temperature control system.
