Rotary Vermiculite Expansion Furnace, Vermiculite Rotary Furnace

Equipment Application

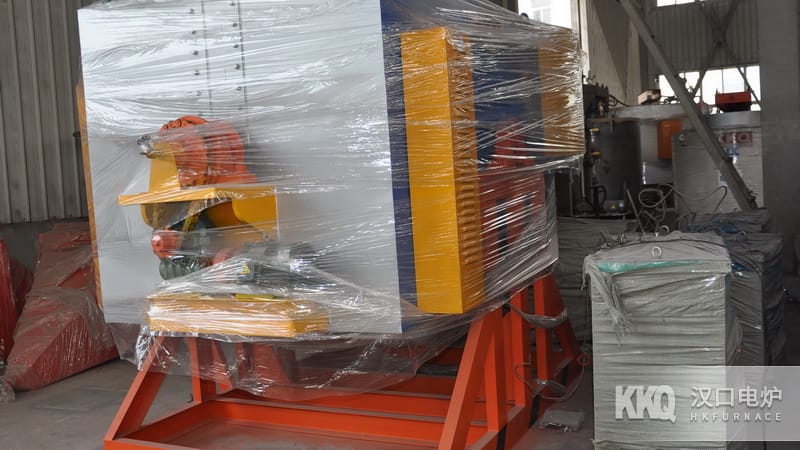

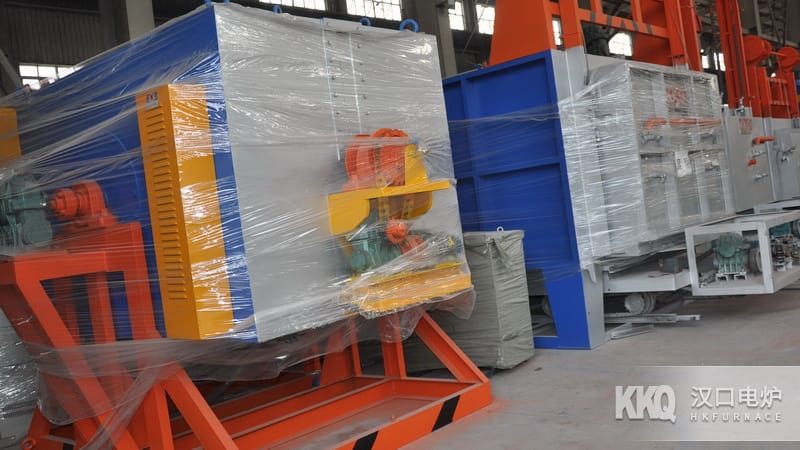

Hankou Furnace The GR2-300-8Rotary Vermiculite Expansion Furnace manufactured by the company is a Energy Saving type Industrial Furnace used for vermiculite roasting and vermiculite expansion. It adopts Energy Saving emission reduction technology Ceramic Fiber High Pressure module Furnace Lining , microcomputer program roasting process curve Automatic temperature control, Energy Saving Environmental Protection .

Vermiculite Expansion Furnace Manufacturer

Structure Introduction

Adopt microcomputer program Automatic temperature control cabinet, Automatic complete the set roasting process, realize the roasting process process Automation , each microcomputer program Automatic temperature control electric cabinet is installed with 6 sets of high-power plate-type thyristor output, can control and adjust the power size, 0-100% stepless output, can set eight-section process curve.

The rectangular furnace body is welded from section steel and steel plates, Furnace Chamber adopts Energy Saving emission reduction technology Ceramic Fiber High Pressure module Furnace Lining , high-alumina refractory hangers are used to install Resistance Strip heating elements. The roller adopts Carbon Steel tube spiral structure, and uses dense high spiral technology, which turns materials fully, the vermiculite ore sand has a long running distance in the furnace, and the roasted ore material is uniform.

Principle and Features

Electric heating belongs to static radiation heating, with sufficient material turning, all vermiculite can conduct uniform heat exchange with the tank wall High Temperature , the overall expansion effect is very Stable , because there is no impact from gas combustion gas, there is basically no dust in the roasting process, the particle size is consistent, and there are very few fine particles.

Online Message

We will contact you as soon as possible. Chief Engineer Contact:
+86 13807177084(Wechat) / hkfurnace@hotmail.com

Technical Parameters

GR2-300-8

Rated Power300

Rated Voltage380

Frequency50

Phases3

Max Temperature800

Working Temperature800

Chamber Size Diameter800

Length8000

Connection MethodY

No-load Heating Time3

Temperature Control Accuracy±1

* Rotary Vermiculite Expansion Furnaces of various specifications and sizes for users, vermiculite rotary furnaces.
