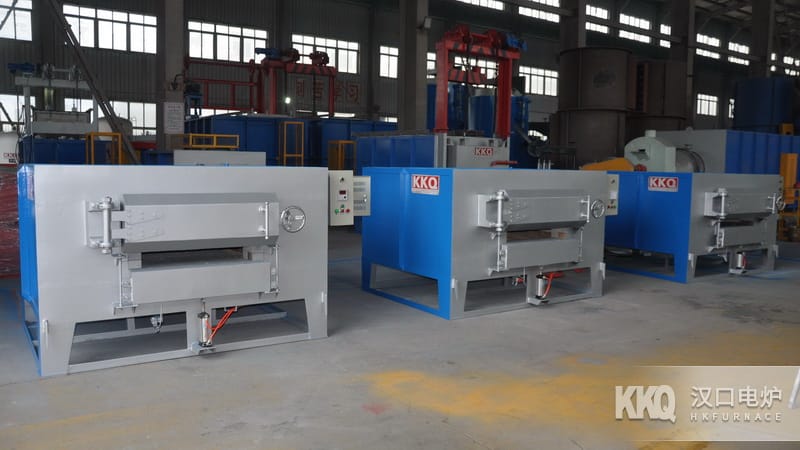

Double Door Box-type Forging Heating Furnace

Application and Features

It is used for forging heating of various Batch Production workpieces, adopts Energy Saving emission reduction technology Ceramic Fiber High Pressure module Furnace Lining , has good heat preservation effect, and Liter temperature speed is fast. Silicon Carbide Rod heating elements, specially used for forging heating, no Exhaust Emission , replace coal-fired forging furnaces.

Hankou Furnace The double Furnace Door Energy Saving type Box Furnace designed and manufactured by the company, Furnace Door adopts an upper and lower double Furnace Door structure, the upper Furnace Door is used for feeding, the lower Furnace Door Liter up and down, which is convenient for High Temperature to take materials. Since only the lower part Furnace Door is opened, the upper part Furnace Door is closed, Furnace Chamber has small heat loss, and it is not easy to lower the temperature when taking materials.

Its advantages are low thermal conductivity, low heat capacity, excellent corrosion resistance, excellent Thermal Stability and thermal shock resistance, and thermal insulation.

Double Door Box-type Forging Heating Furnace

Structure Introduction

1. The Ceramic Fiber Silicon Carbide Rod Box Type forging furnace structure is adopted, and Furnace Shell is welded into a fixed structure by section steel and steel plates.

2. Furnace Lining adopts our company's Energy Saving emission reduction technology Ceramic Fiber High Pressure module, which is manufactured by High Pressure press special method, and Ceramic Fiber High Pressure modules are assembled to form an overall Full-Fiber high-density Energy Saving Furnace Lining structure (fiber Furnace Lining production compression ratio ≥55-65%).

3. Use high-quality Ceramic Fiber needle-punched blanket as raw material, use special High Pressure Equipment to compress and make, and use High Pressure press to perform high-density compression on Ceramic Fiber during processing, to achieve a good heat storage effect.

4. This structure Furnace Wall is firm Durable , Energy Saving has good effect, and is light in weight.

5. And the anchor is arranged on the Low Temperature surface of the furnace body, which improves the fiber's High Temperature Strength resistance.

6, Heating Element adopts Silicon Carbide Rod , arranged on both side walls, heated by strong radiation from Silicon Carbide Rod .

7. Users do not need basic installation, it can be used directly when placed on a cement floor.
