High-precision High-temperature Box Furnace

Equipment Application

High-precision High-temperature Box Furnace is manufactured in accordance with aviation industry standards, Precision is a Industrial Furnace for heat treatment purposes, mainly used for Precision heat treatment in aviation, aerospace Day , military industry, national research institutes, High Precision manufacturing and other fields, and is widely selected in the international aviation manufacturing industry. The product implements the military standard GJB5-9-88 of the Ministry of Industry of China, and complies with AMS2750E International Standard .

Structure Introduction

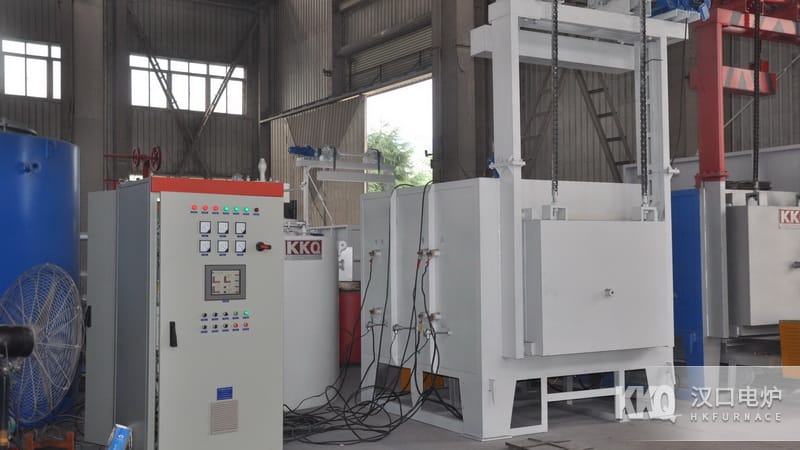

1. Furnace body: The structure and shape of this series of High-precision High-temperature Box Furnace is square, and the outer shell is welded from steel plates and section steel.

2. Furnace Lining : The material adopts new technology Ceramic Fiber High Pressure module Energy Saving Furnace Lining .

3. Heating element: High-alumina refractory hanging fixtures install Resistance Strip heating elements, placed on the shelf bricks of Furnace Chamber two walls and Furnace Bottom .

4. Furnace Door : Liter descent is carried out through the transmission of the motor, worm gear reducer, sprocket and chain, and is braked through the electromagnetic brake.

Safety System

Furnace Door There is a disconnecting switch device at the upper part , when Furnace Door is turned on High-Temperature Box Furnace the power supply will be cut off immediately to guarantee the operating personnel Safe .

Temperature Control System

Furnace Roof is provided with at least three Thermocouple holes. When in use, insert Thermocouple into Furnace Chamber , and control the Box Furnace temperature and over-temperature protection through the Temperature Control cabinet.

In order to improve the uniformity of furnace temperature, High Precision Box Furnace adopts heating in at least three zones, and arranges Heating Element according to the uniform temperature wire layout method. To compensate for heat loss at the furnace mouth, the Heating Element Layout ranges of Zone I, Zone II and Zone III are different, so that Box Furnace maintains consistent uniform temperature in the three zones during the Liter temperature and heat preservation process.

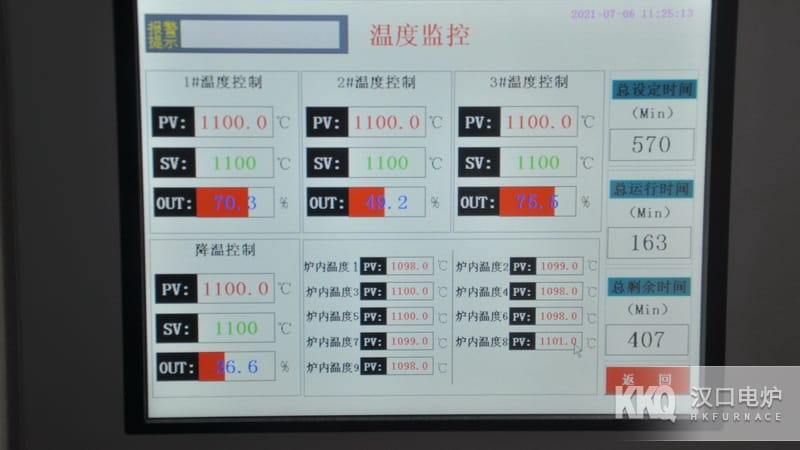

Box Furnace supporting microcomputer three-zone program Automatic temperature control cabinet, uses at least three microcomputers to separately perform High Precision Automatic temperature control for three-zone heating and operation control for Furnace Door , mainly conducts Automatic control and Automatic recording for furnace temperature.
