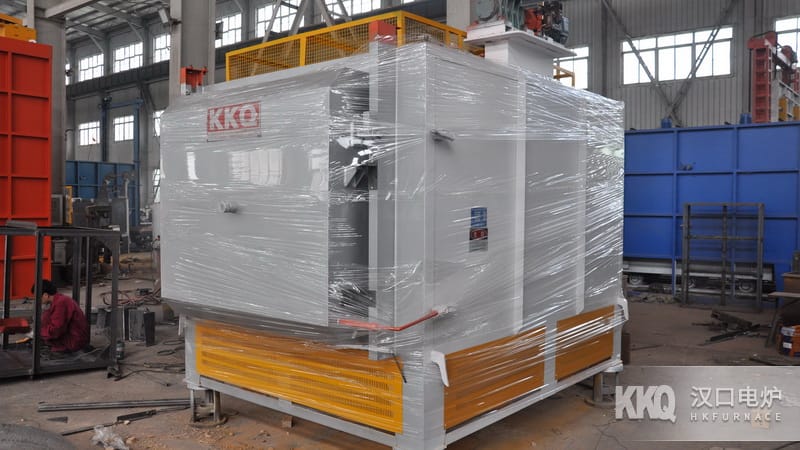

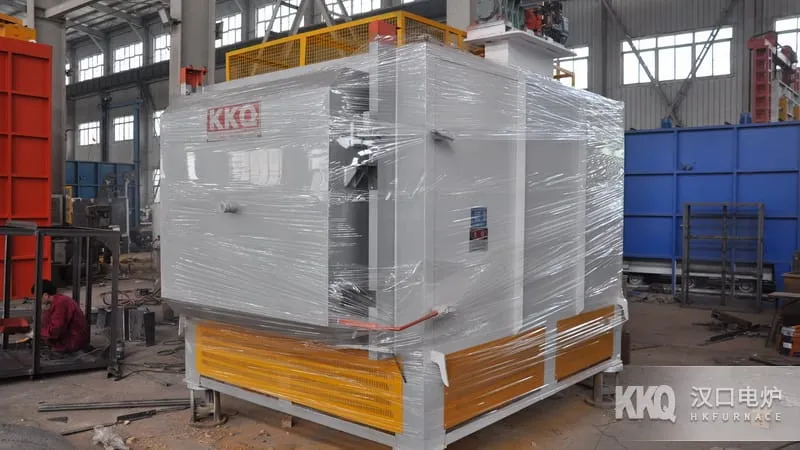

1600℃ High Temperature Box Furnace

Equipment Application

This series of 1600℃ High Temperature Box Furnace is a Energy Saving type periodic operation High Temperature Industrial Furnace , which can be used for ceramic sintering, non-metallic material sintering, melting of non-metals and metals, heating of high-melting-point metals, and Alloy Steel heat treatment in industrial and mining enterprises, scientific research institutions, laboratories and so on.

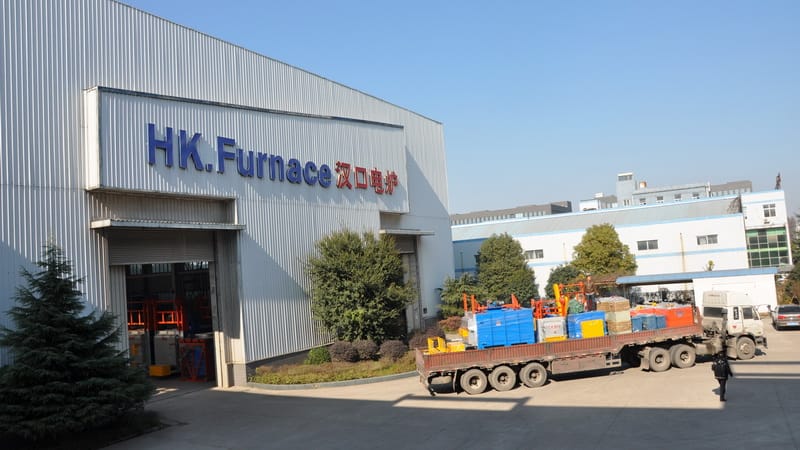

1600℃ High Temperature Box Furnace Manufacturer

Structure Introduction

1, 1600℃ High Temperature Box Furnace is welded from steel plates and section steel.

2. Furnace Chamber It is made of fused corundum or constructed by lining brick masonry.

3. "U"-shaped silicon molybdenum rods are evenly hung on both sides of Furnace Chamber .

4. Furnace Shell and Furnace Lining are filled with alumina foam masonry, Aluminosilicate Fiber and other Insulation Material .

5. High-Temperature Box Furnace A protective cover is installed at the wiring connection of the top silicon molybdenum rod to ensure Safe .

6. Furnace Door is fixed on the Box Furnace panel by the long arm of the multiple hinges, and the door latch can make Furnace Door cling closely to the furnace opening when closed.

7. An interlock switch is installed under the furnace mouth, Furnace Door can Automatic cut off the working power supply when it is turned on.

8. The Thermocouple for measurement is inserted through the Thermocouple hole opened on Furnace Roof , and is fixed by the fixing base.
