Location: Home → Industrial Furnace → Box Furnace → High Temperature Box-type Forging Furnace

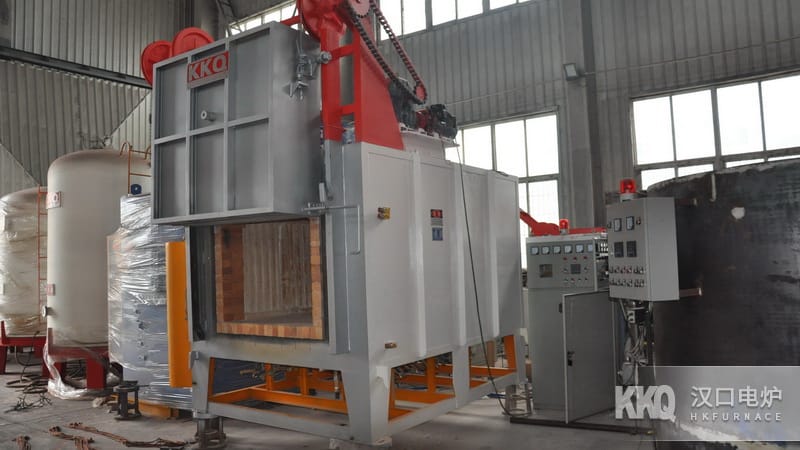

High Temperature Box Forging Furnace

High Temperature Box-type Forging Furnace

Power: 45-115KW

Max Temperature: 1350℃

Working Temperature: 1280℃

Loading Capacity: 200-1500Kg

Used for heating various forgings before forging within 1350℃

Contact Us: +86 13807177084 / hkfurnace@hotmail.com

Equipment Application

Box Type Forging furnace is Energy Saving type periodic operation forging purpose Industrial Furnace , adopts Silicon Carbide Rod heating method, mainly used for heating within 1350℃, gears, molds, various forging blanks before forging.

High Temperature Box Forging Furnace

Online Message

We will contact you as soon as possible. Chief Engineer Contact:
+86 13807177084(Wechat) / hkfurnace@hotmail.com

Technical Parameters

RX3-45-13

Rated Power45

Rated Voltage380

Max Temperature1350

Working Temperature1280

Phases3

Chamber Size (Length)950

Width450

Height350

Connection MethodY

No-load Heating Time3

Max Loading Capacity200

Weight (Reference)2300

RX3-90-13

Rated Power90

Rated Voltage380

Max Temperature1350

Working Temperature1280

Phases3

Chamber Size (Length)1600

Width800

Height500

Connection MethodY

No-load Heating Time3

Max Loading Capacity600

Weight (Reference)3000

RX3-115-13

Rated Power115

Rated Voltage380

Max Temperature1350

Working Temperature1280

Phases3

Chamber Size (Length)2200

Width800

Height560

Connection MethodY

No-load Heating Time3

Max Loading Capacity1500

Weight (Reference)3500

* various Furnace Chamber Size for users, High Temperature Box-type Forging Furnace with different specifications.
