1000℃ Medium Temperature Electrode Salt Bath Furnace

Equipment Application

1000℃ Medium Temperature Electrode Salt Bath Furnace is a periodic operation type Industrial Furnace , which is used for heat treatment such as annealing and oxidation-free heating of metal workpieces heated in the salt solution melted by the electrode, and the working temperature is 850-1000℃.

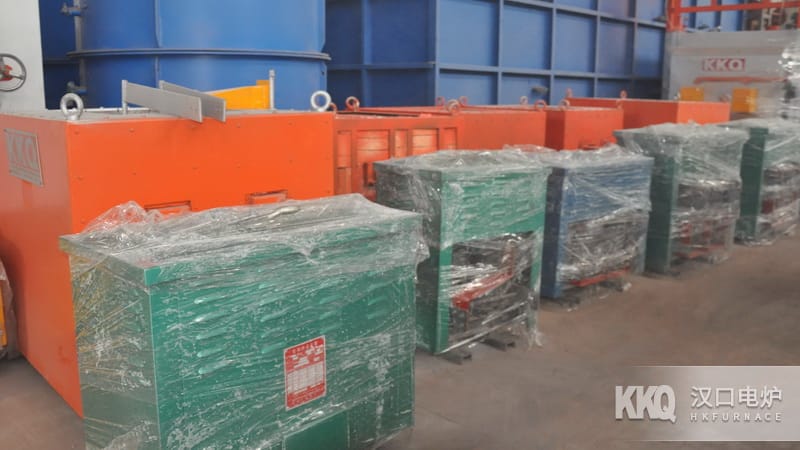

Medium Temperature Electrode Salt Bath Furnace Manufacturer

Structure Introduction

Furnace body and furnace liner: the outer shell is welded into a square structure with angle steel and steel plates, equipped with a salt tank to prevent molten salt leakage. The inner liner is made of steel plates, which can be lifted out for repair when the salt tank is damaged.

Electrode: The electrode is inserted from the side of the bottom of the salt tank. The professional embedded electrode structure extends the service life of the electrode, and can prevent short circuit between the two electrodes. There is also a specially designed water cooling jacket to prevent salt leakage after long-term use.

Temperature Control System: An electric furnace control cabinet is supplied together with Salt Bath Furnace to control the temperature of the salt solution. The control cabinet is equipped with a measuring temperature controller for indicating temperature, which is connected to Thermocouple immersed in the salt bath through a compensation conductor, and can perform indication, recording and Automatic temperature regulation.

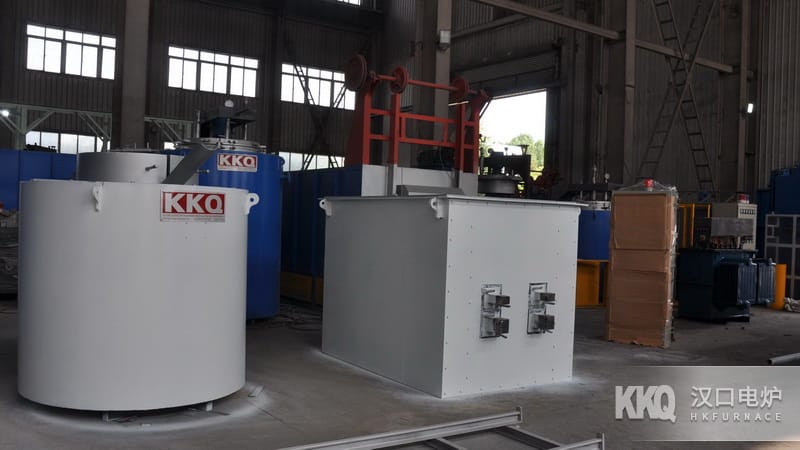

1000℃ Medium Temperature Electrode Salt Bath Furnace

Working Principle

Medium temperature electrode Salt Bath Furnace uses salt heating. Salt does not conduct electricity in solid state. Salt Bath Furnace When the electrode is used, current passes through the conductive molten salt to generate continuous heat. The electrode enables continuous circulation of the molten salt through Natural Convection and electromagnetic stirring, which can quickly and uniformly continuously heat the workpiece.
