650℃ Low Temperature Electrode Salt Bath Furnace

Equipment Application

Low Temperature Electrode Salt Bath Furnace is Energy Saving type periodic operation salt bath heat treatment use Industrial Electric Furnace , uses electrodes to melt salt solution for workpiece Tempering , non-oxidation heating and other heat treatments, with a service temperature of 150-650℃.

Structure Introduction

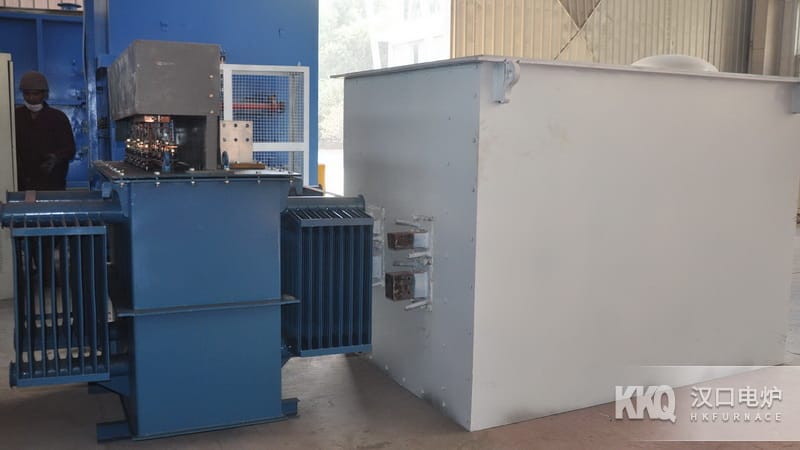

Low Temperature Electrode Salt Bath Furnace consists of the following components: outer shell made of shaped steel plate, steel inner tank, salt tank preventing molten salt infiltration, specially designed electrode avoiding open circuit and preventing salt leakage, additionally equipped with special temperature Automatic control cabinet, special shaped Thermocouple .

Working Principle

The electrode Salt Bath Furnace uses salts as heating agents. According to different working temperatures, salts or mixed salts with different compositions can be selected. Salts are non-conductive before melting, so starting electrodes must be used for melting when Salt Bath Furnace is in use. Since current passing through conductive molten salt continuously generates heat, it can maintain the molten state. Because the electrode, under the action of electromagnetic force, makes the molten salt continuously circulate through Natural Convection and electromagnetic stirring, it can heat workpieces quickly and uniformly.
