ADI Ductile Iron Production Line , Isothermal Quenching Heat Treatment Equipment

Production Line Introduction

Hankou Furnace After many Year studies by the company, we have designed and produced isothermal heat treatment Production Line suitable for general production of ADI parts, Production Line Equipment is mainly composed of two sets of periodic operation furnaces: the austenitizing heating furnace and the nitrate salt Isothermal Quenching Furnace .

The Isothermal Quenching process of ADI Ductile Iron is divided into two stages: the ADI heat treatment austenitization process and Isothermal Quenching . Workpieces are transferred by workshop Overhead Crane or positioning single-arm cranes to realize the heat treatment Production Line of ADI parts in periodic operation furnaces. It has now entered the stage of mature application. It can be composed of two austenitization Bogie Type heating furnaces and one nitrate salt Isothermal Quenching Furnace to form continuous and uninterrupted Production Line for periodic operations.

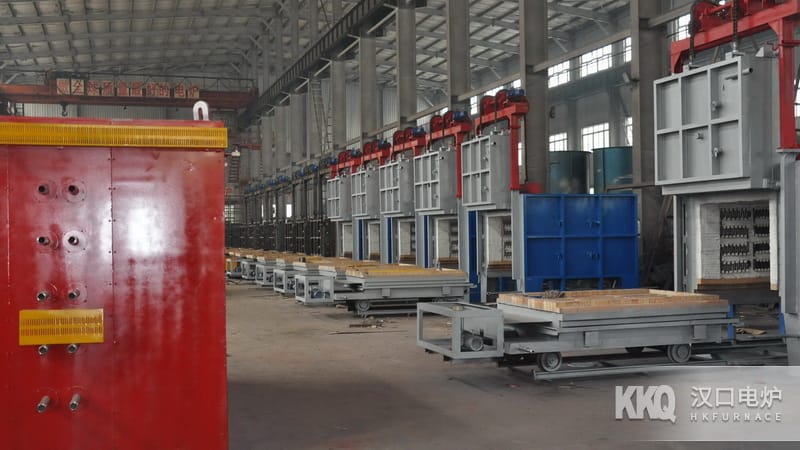

ADI Ductile Iron Isothermal Quenching Production Line

Austenitization Bogie Type Heating Furnace Structure and Characteristics

1. This series of austenitizing heating furnaces are Industrial Furnace of Energy Saving type manufactured in accordance with National Standard , adopt Full-Fiber heat preservation with excellent Energy Saving power saving effect, and can Automatic High Precision implement various heat treatment process curves. It is mainly used for austenitizing heat treatment of ADI castings, Ductile Iron , and austempered ductile iron.

2. In terms of Furnace Lining design, Ceramic Fiber Furnace Lining is adopted, which makes Furnace Chamber have small heat loss, Liter temperature rise speed is fast, Furnace Lining heat accumulation is sufficient, and can quickly raise the workpiece Liter to the austenitizing temperature during continuous production.

3. The heating element design uses a large cross-section wide type Resistance Strip , which increases the surface area of the heating element under the same power, can High Efficiency complete the electrothermal energy conversion. Due to the reduced surface load of the heating element, the heating element has a long service life.

4. Pre-embed the nitrogen preheating pipeline system and uniform flexible porous nozzles on the inner wall of Furnace Lining . When protective atmosphere heating is required, nitrogen can be introduced. By adjusting Flow Meter , oxidation can be reduced during the austenitization process of the workpiece.

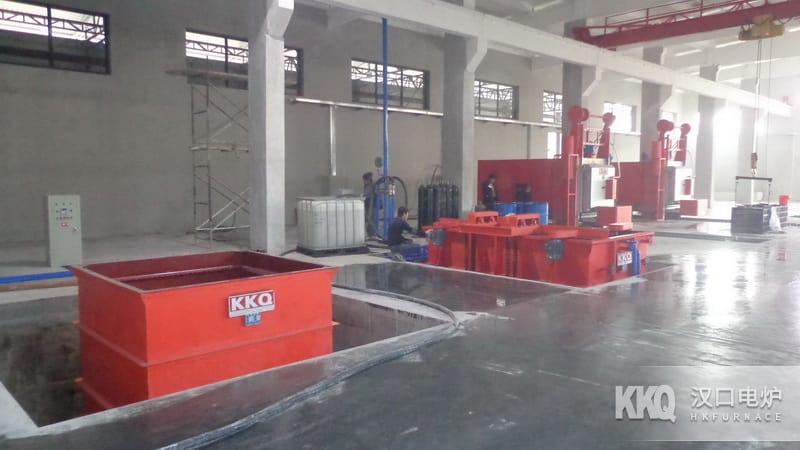

Ductile Iron Isothermal Quenching Furnace Production Workshop

Structure and Characteristics of Nitrate Salt Isothermal Quenching Furnace

1. Hankou Furnace The professionally manufactured Isothermal Quenching Nitrate Salt Furnace is designed with introduced foreign high and new technology, and uses nitrate salt molten liquid medium to heat workpieces.

2. Nitrate Salt Furnace The heating speed of workpieces is relatively fast, oxidation and decarbonization are slight, the uniform temperature is high, it is convenient for Isothermal Quenching heat treatment. It is especially suitable for railway locomotives, ball mill liners, steel balls, crusher hammerheads austenite-bainite wear-resistant materials Isothermal Quenching .

3. ADI castings Isothermal Quenching have very high requirements for Equipment , it needs to be able to achieve Safe no explosion, can cool quickly, ensure Precision constant temperature and isothermal, do not allow local temperature to be too high, and even more do not allow over-temperature, the heat exchange of nitrate salt solution to ADI castings during the isothermal transformation process Stable is consistent, and the temperature uniformity reaches ±3℃.
