Ion Carburizing Furnace

Ion Carburizing Process Introduction:

Ion Carburizing The process is to heat the workpiece in vacuum, with bombardment by high-energy ions, so that the surface of the treated workpiece is cleaned and activated. In addition, under the dual effects of thermal decomposition and ionization of Carburizing gas, and under the action of a DC pulse electric field, a high carbon ion concentration region is formed in the space near the workpiece surface in a short time, thereby accelerating the infiltration and diffusion of carbon into the workpiece, greatly shortening Carburizing time. For example, at 880°C, Ion Carburizing of 1 hour can obtain a hardened layer 0.6mm deep. Compared with conventional Gas Carburizing , the time can be shortened by about 50%.

Structural Features：

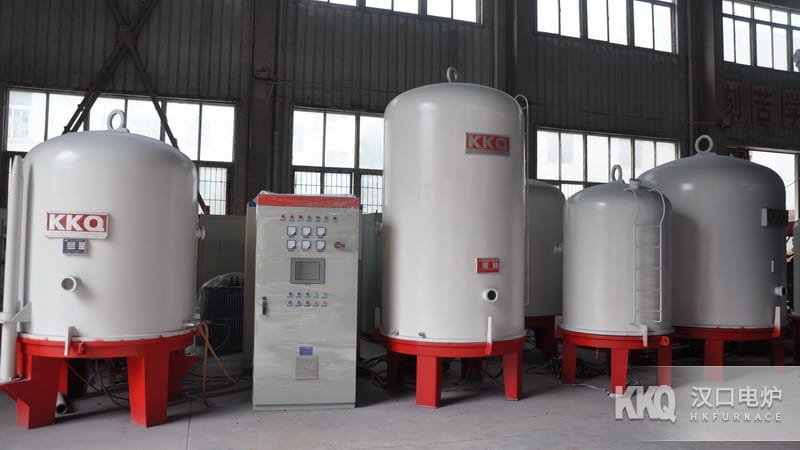

Ion Carburizing The furnace is composed of several main parts including an electrical control system, Vacuum Furnace body, Carburizing gas distribution system, Vacuum Measurement and control system. The diameter and height of the furnace body can be designed according to the size of the workpiece.

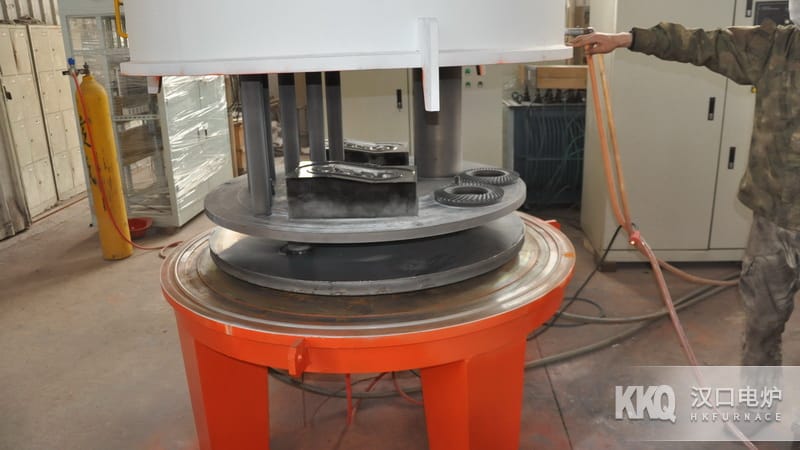

The workpiece is placed in a vacuum vessel, glow discharge is used to ionize the Carburizing gas, the generated carbon ions bombard the surface of the charge under the action of the electric field to perform Carburizing Heat Treatment Furnace . Hankou Furnace company developed the Ion Carburizing furnace Advanced Technology , which has been widely used and praised by users.

Ion Carburizing Detailed Technical Specification information of the furnace, please call our company's sales hotline:027-83372766 13807177084 / Email:hkfurnace@hotmail.com
