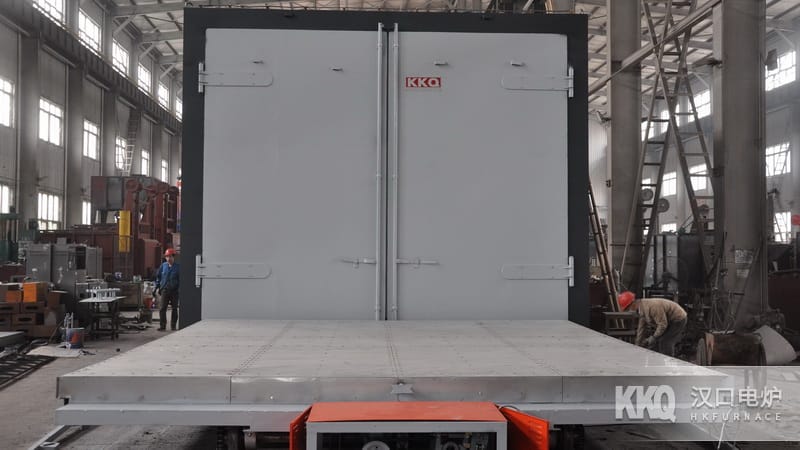

Bogie type Drying Oven

Equipment Application

Bogie type Drying Oven is an industrial Scale Production production use Energy Saving type drying oven, mainly used for drying transformer iron cores and coils, drying spray-painted electrical cabinets and parts, drying rare earths, drying casting sand molds, drying motors and many other uses. It adopts Bogie Automatic feeding and discharging method, which is suitable for continuous production of large batches of workpieces.

Structure Introduction

1. Bogie type Drying Oven Furnace Shell is pressed and formed by special molds for cold-rolled steel plates and section steels.

2. Furnace Lining adopts Energy Saving type super-insulation ultra-fine fiber Aluminosilicate Fiber cotton, and has the advantages of Liter fast heating, good heat preservation, uniform temperature, and electricity saving.

3. The heating element adopts a replaceable far-infrared plate-shaped or tubular heating element, which is not easy to damage, Long Service Life .

4. Circulation Fan is installed inside the top hot air unit, Large High Temperature Drying Oven uses multiple blowers and multi-zone multi-layer temperature control.

5. The supporting microcomputer Automatic temperature control cabinet realizes High Precision temperature control.

Configuration and Features

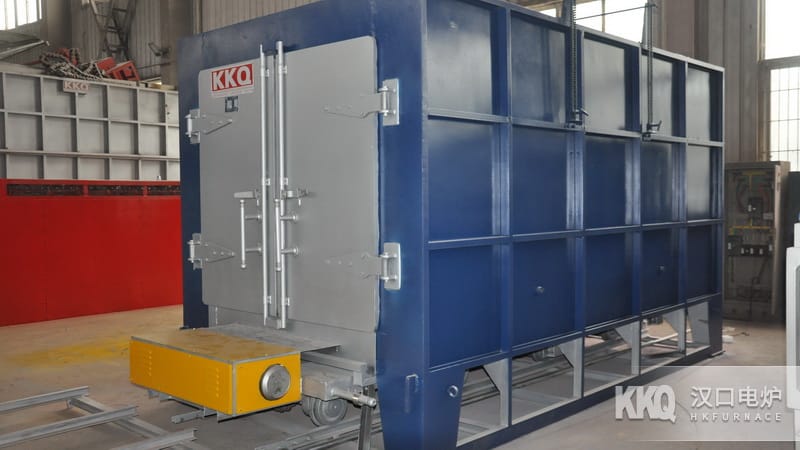

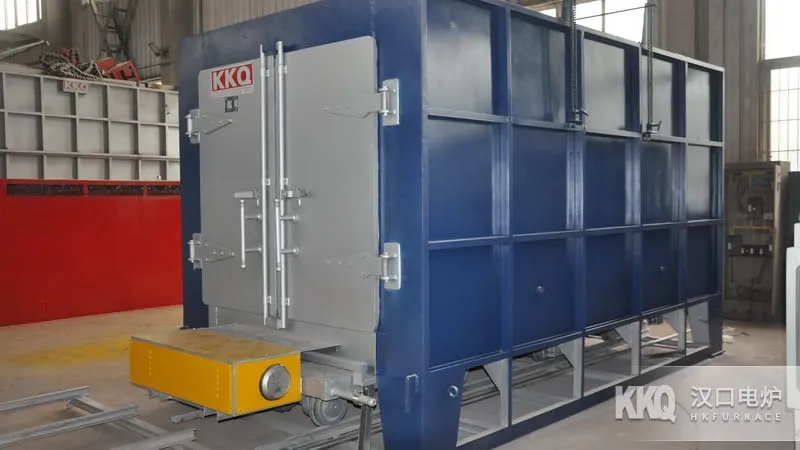

The loading Bogie of Bogie type Drying Oven adopts electric Automatic in-out mode, with heavy-load structure, which has a larger load capacity than ordinary ovens and is suitable for industrial Batch Production production. It can also be equipped with internal track-type manual push Bogie , which has a smaller load capacity than electric Bogie , but is easy to operate and low in cost.

Widely used in drying, baking, heating and heat preservation and other processes, or used in Low-Temperature Tempering , annealing, Aging Treatment and hot charging processes of metal workpieces. It not only ensures the processing quality of workpieces, the electric control Automatic feeding and discharging charging Bogie has large load capacity, Stable Operation , but also can improve production efficiency.
