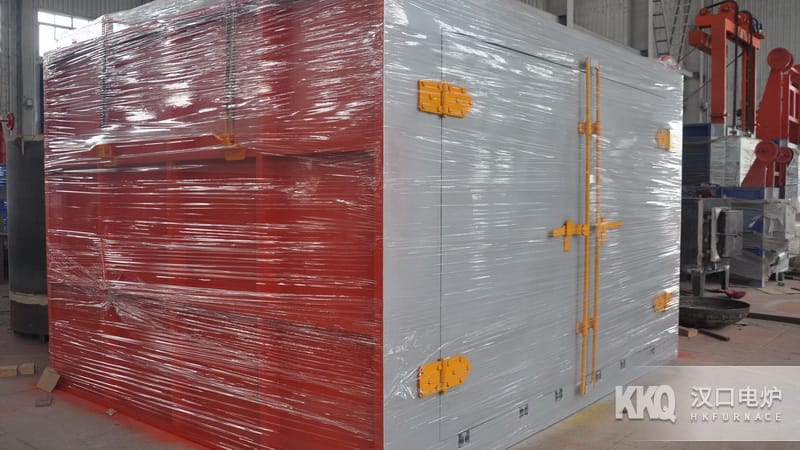

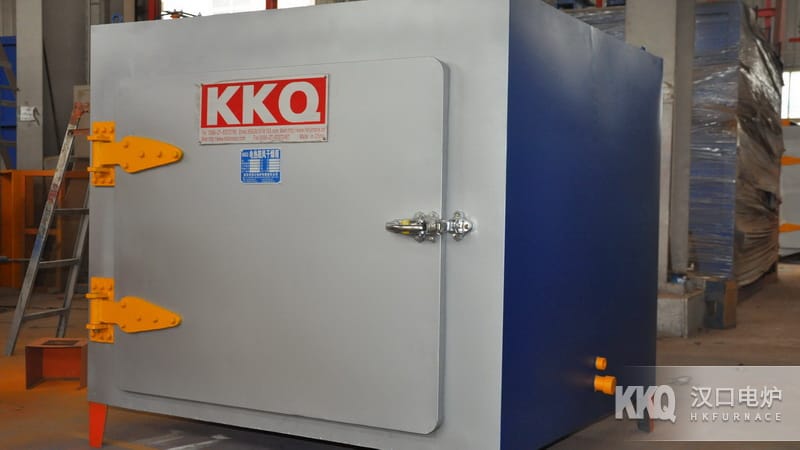

High Temperature Drying Oven

Equipment Application

The DH series High Temperature Drying Oven is an Scale Production industrial production Energy Saving type oven. The general operating temperature is higher than 300℃, and can reach 500℃. It is used by industrial and mining enterprises, hardware manufacturing, shipbuilding and other enterprises for heating treatment of workpieces and general dehydration drying, or for molds, various mechanical parts Tempering ; Aluminum Alloy aging treatment of die castings.

Structure Introduction

1. The Furnace Shell part of the High Temperature Drying Oven is formed from cold-rolled steel plates and section steel, and the inner tank is made of high-quality Stainless Steel plate.

2. Furnace Lining uses Energy Saving type long-fiber aluminum silicate insulation cotton, and has the advantages of fast temperature Liter , good heat preservation, uniform temperature and power saving.

3. The heating element adopts a replaceable far-infrared plate-shaped or tubular heating element, which is not easily damaged, Long Service Life .

Configuration Features

Small High Temperature Drying Oven adopts a multi-layer tray loading structure, side-mounted Hot Air Circulation fan, large Medium High Temperature Drying Oven is equipped with a top-mounted internal hot air Circulation Fan , and uses multiple fans and multi-zone multi-layer temperature control.

Equipment All units are equipped with microcomputer program Automatic temperature control cabinet, which can Automatic set the specified temperature, Liter temperature rising speed is adjustable, it will Automatic power off and shut down when the holding time is reached, the use is Safe accurate.

* If users need a High Temperature Drying Oven with explosion-proof function, they should place a special order when placing the order.

Technical Parameters

* High Temperature Drying Oven of various specifications and sizes for users .
