Power: 9-100KW
Max Temperature: 300℃
Working Temperature: 280℃ (0-280℃ adjustable)
Loading Capacity: 100-6000Kg
Dry painted spray-painted parts, etc.
Contact Us: +86 13807177084 / hkfurnace@hotmail.com

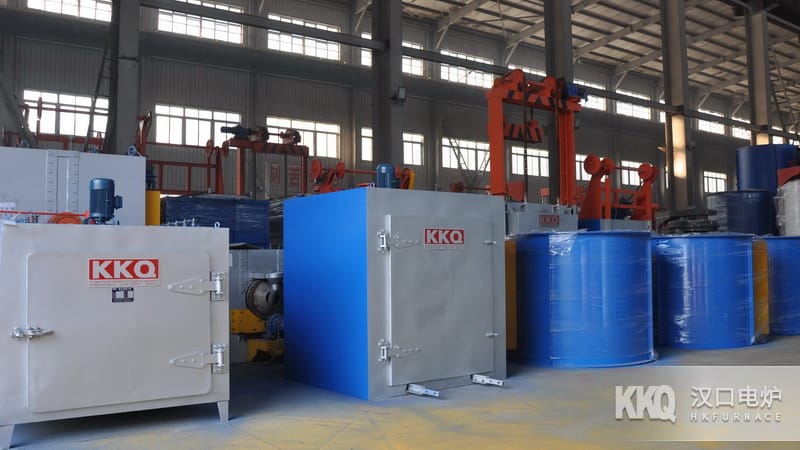

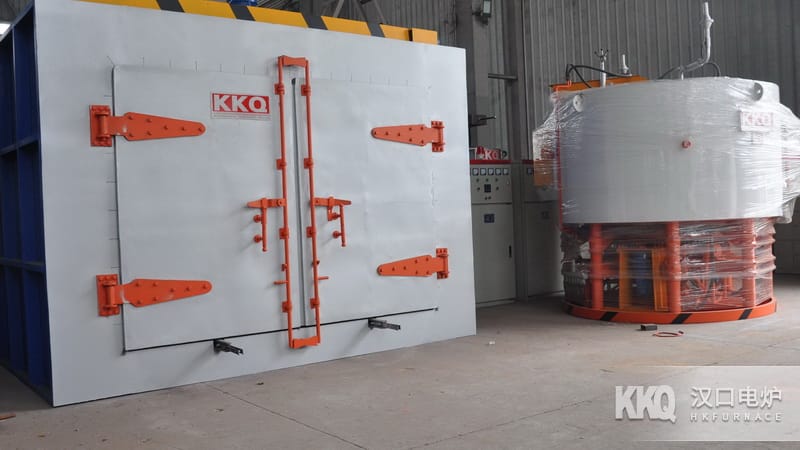

Hankou Furnace The DH series Electric Blast Drying Oven manufactured by the company is an industrial Scale Production production Energy Saving type oven. It is mainly used for drying spray-painted parts, painted electric cabinets, transformers dipped in insulating varnish, electric motors, welding electrodes, powdery or granular plastic raw materials, foundry sand molds, disposable paper cups, bowls, food, raw wood, wood products, signboards and other items.
It can perform heat treatment on metal materials, for example: aging heat treatment for springs, automotive piston rings, Aluminum Alloy parts, etc. Small Electric Blast Drying Oven below 4KW can be used in laboratories.
Furnace Shell : DH series Electric Blast Drying Oven, is pressed and formed by special molds for cold-rolled steel plates and section steels.
Furnace Lining : Adopts Energy Saving type super insulation super slender fiber Aluminosilicate Fiber cotton, has the advantages of fast temperature rise, good heat preservation, uniform temperature and electricity saving.
Heating element: uses replaceable far-infrared plate-shaped or tubular heating elements, which are not easily damaged, Long Service Life .
1. Small The drying oven adopts a multi-layer tray loading structure, and is equipped with a side Hot Air Circulation fan. Large and Medium drying ovens adopt Bogie loading rail structure.
2. Medium The drying oven is equipped with a top-mounted hot air mixing fan, Large the drying oven uses multiple fans and multi-zone and multi-layer temperature control.
3. All are equipped with Automatic temperature control cabinet when delivered from the factory. Small and Medium drying oven control cabinets are installed integrally with the furnace body, and the middle Large is an independent Automatic temperature control cabinet.
We will contact you as soon as possible. Chief Engineer Contact:
+86 13807177084(Wechat) / hkfurnace@hotmail.com
* If users require a drying oven with explosion-proof function, they must put forward a request for custom manufacturing when placing an order.
* ovens of various specifications and sizes and Electric Blast Drying Oven for users.
It collects oven and drying oven on-site cases from all over the country including Hubei, Hunan, Shandong, Shanxi, Henan, Hebei, Guangdong, Guangxi, etc., as well as export cases to the United States, Germany, Japan, South Korea, Singapore, Malaysia, Indonesia and other countries around the world Equipment .
Hankou Furnace boasts 50 years of manufacturing experience
