Perlite Expansion Electric Furnace

Equipment Application

Perlite Expansion Electric Furnace is used to produce High Quality closed-cell perlite. As a new type of thermal insulation material widely used internationally, this product has very high Strength , strong thermal insulation performance, and quite low water absorption. In terms of building wall insulation Energy Saving , it is the main material for producing thermal insulation mortar, and is widely used in thermal insulation of internal and external walls of buildings. It can be used as filter ceramics, filter aids, etc. in the beverage, beer, and pharmaceutical industries. It can be used as thermal insulation for thermal pipelines, kiln insulation products, thermal insulation products, etc. in the chemical industry and kiln manufacturing industry.

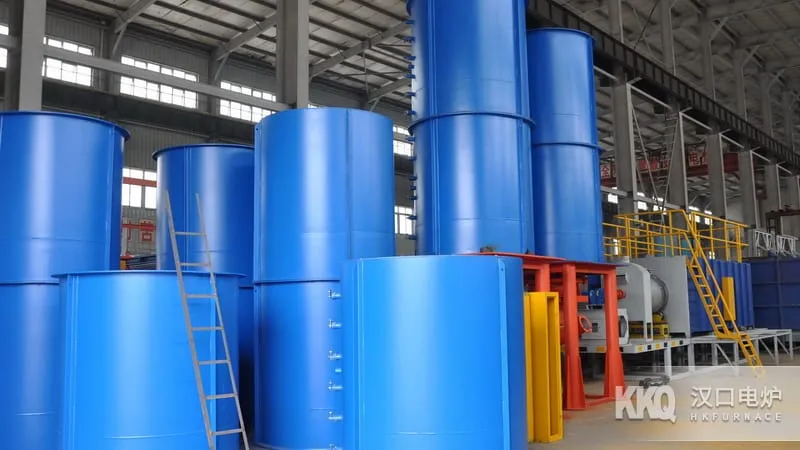

Perlite Expansion Electric Furnace leaves the factory

Application History

Our company Senior Engineer Director Keqiang Kong started experimental research and invention in 1999 Year , and successfully completed research and development in February 2003 Year . This product is the first to be put into industrial production in the world, and more than one hundred units have been in continuous operation for five years Year . It is specially used for producing closed-cell perlite and hollow perlite vitrified microspheres. It uses six microcomputers for fully automatic Automatic control of the production process of ore sand softening, instantaneous gasification of crystal water, control of hollow ball size, vitrification melting and sealing of the outer shell to prevent water ingress, and the process curve of vitrified shell hardening, ensuring unmanned management during the vitrification process Automation . Over many years Year , most of the closed-cell perlite used for wall insulation mortar in China is produced by the Perlite Expansion Electric Furnace manufactured by our company.

Due to the attention that internationally renowned enterprises and listed companies pay to product quality, relevant Manufacturer all over the world have put into operation our factory Equipment Production Line for the production of closed-cell perlite and High Quality glass microspheres. At present, many countries around the world including the United States, Canada, Australia, the Netherlands, Thailand, Russia, South Korea and other countries have already put them into production.

Structure Introduction

Perlite Expansion Electric Furnace is made of steel plates and section steel into a circular shell. The thermal insulation Furnace Lining adopts high-tech Ceramic Fiber High Pressure module thermal insulation. It has very strong thermal insulation performance and strong power saving capability. Imported High Quality high temperature resistant High Temperature Stainless Steel inner liner can operate without failure for long Year 24 Hour continuous use. The distributor professionally designed by our company enables ore sand to expand by heating at uniform temperature, reaching a perlite closed porosity of over 95%.

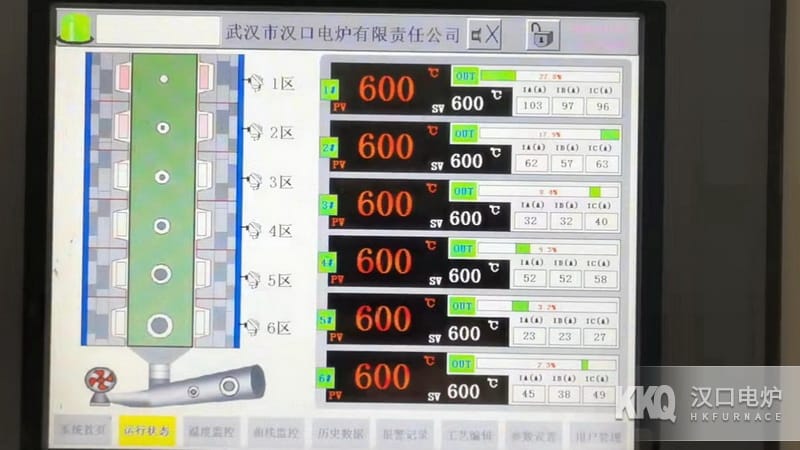

Temperature Control

Adopt microcomputer program Automatic temperature control cabinet process curve Automatic temperature control cabinet, closed-cell perlite expansion process curve process High Precision Automatic temperature control.
